Specifications
Material : Hot-forged C15 steel, deburred
Standard : DIN 580
Thread dimensions : from M8 to M42
Working load limit (WLL) : from 140 to 7000 daN
Operating temperature : Between -20°C and +200°C
Benefits:
- Easy to install
- Robust
Recommendation for use :
Mounting : The collar eye bolts must be screwed until it rests flat on the surface to be lifted.
Lifting : Do not exceed the working load limit. These are calculated for lifting in the axis of the eye bolts.
Maintenance recommendation :
Regular checks
To order you need to indicate :
- The chosen reference based on the catalog
Example : A30.012.020

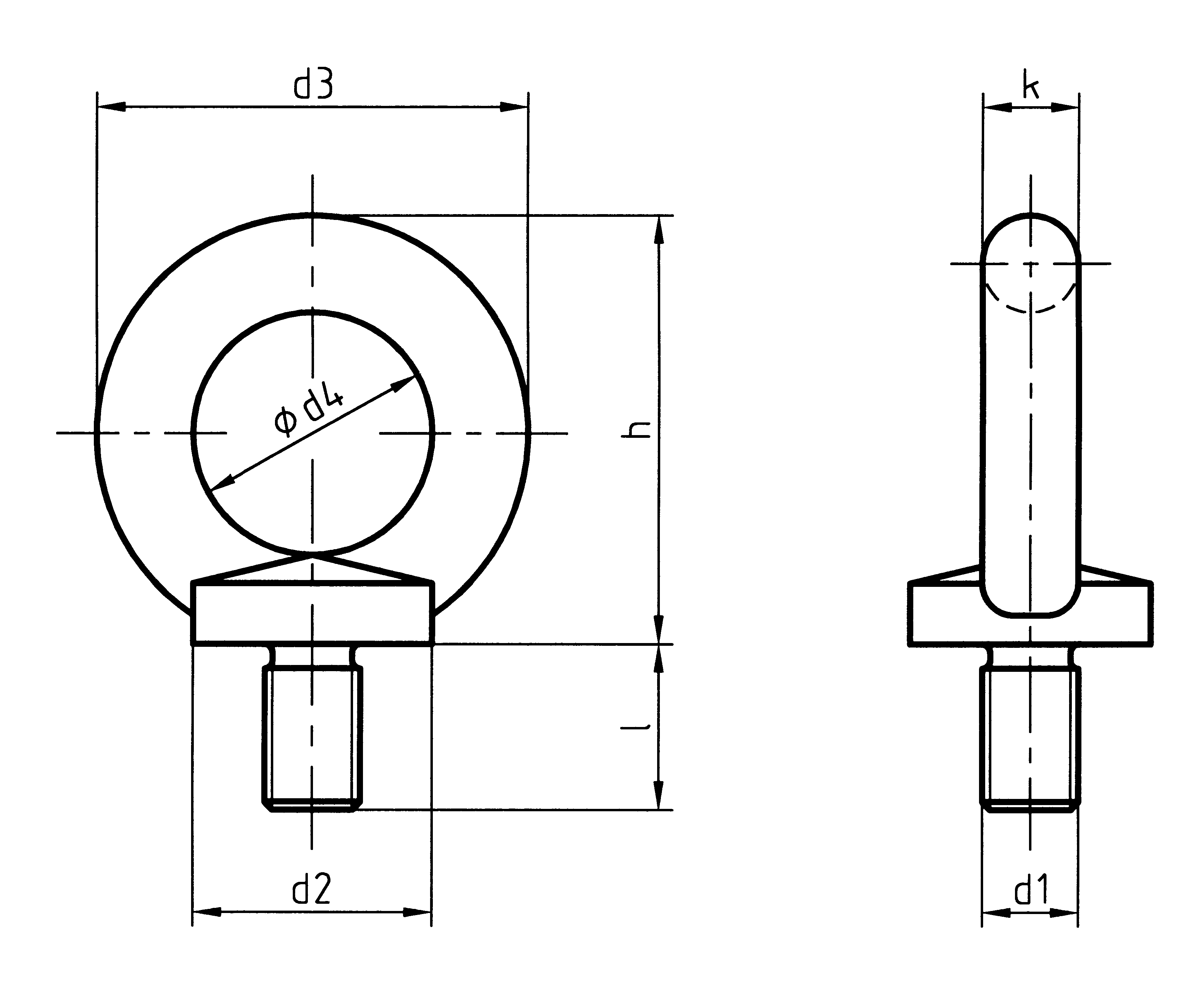

Plan
d1 : Thread diameter
d2 : Ring base diameter
d3 : External ring diameter
d4 : Internal ring diameter
k : Ring thickness
l : Press-fit length
h : Length over plate
