Specifications
Material : C45 / 1.0503
Lifting capacity : from 320 to 3200 daN
Diameter : from 16 to 40mm
Benefits :
- Easy to use
- High lifting capacity
Recommendation for use :
Mounting : The lifter studs A30.015 are fitted on the top of the plates.
Maintenance recommendation :
Regular checks
To order you need to indicate :
- The chosen reference based on the catalog
Example : A30.015.020

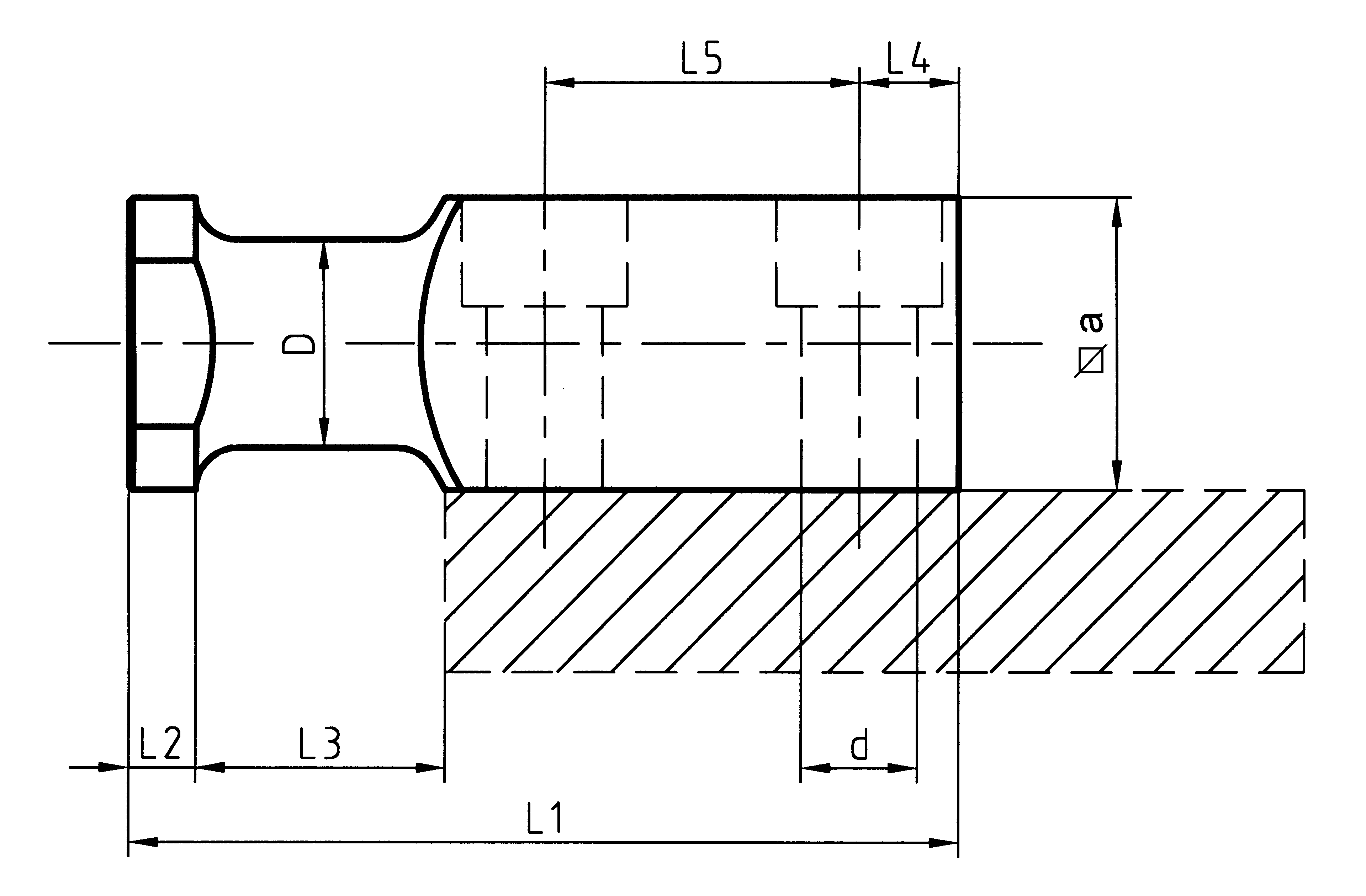

Plan
L1 : Length
L2 : Head thickness
L3 : Lifting zone length
L4 : Length between the screw bore and end of body
L5 : Distance between the two bores
d : Bore diameter
D : Lifting zone diameter
