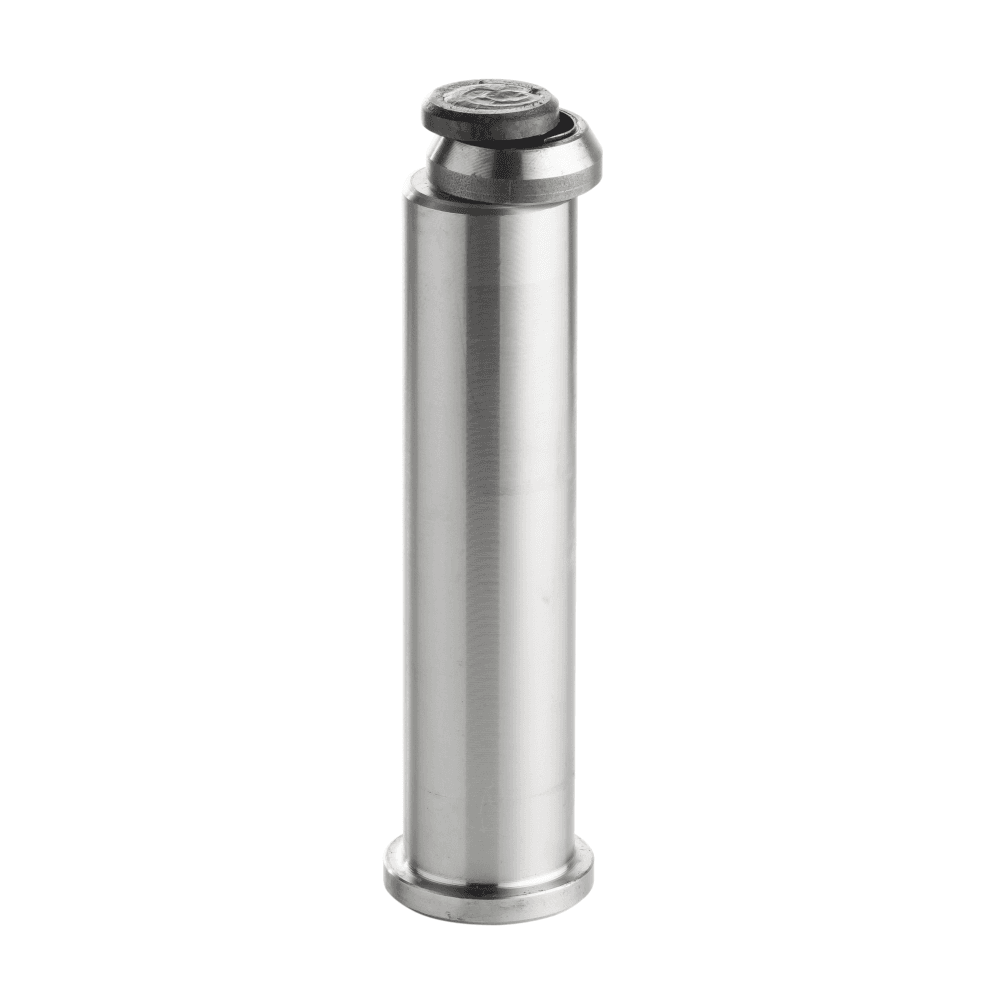

Specifications
Material : XC 18
Standard : NF E63-132
MABEC coded product
Lifting capacity : from 6000 kg to 22 500 kg
Dimensions :
- Diameter : from 32 to 63mm
- Length : from 132 to 265mm
Benefits :
- MABEC elements
- Spring-loaded retaining cam prevents unintentional dismantling.
Tolerances :
- Body length ± 0.1mm
- Total length ± 1mm
- Cam thickness ± 0.1mm
- Diameter: h11
Recommendation for use : Do not exceed the specified loading capacity.
Maintenance recommendation :
Regular checks
To order you need to indicate :
- The chosen reference based on the catalog
Example : BRM.040.V1

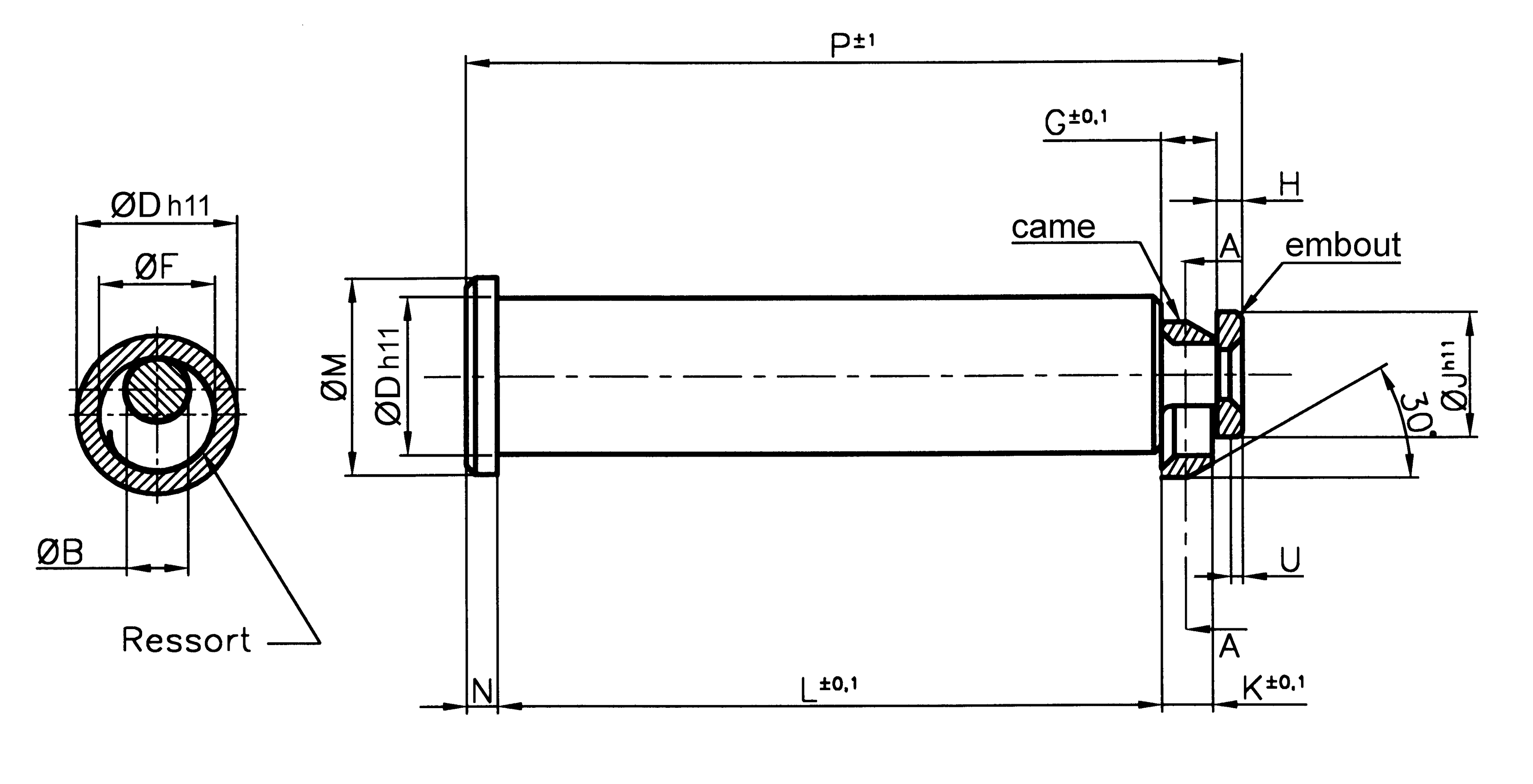

Plan
P : Length
L : Body length
Dh11 : Body diameter h11
G : Cam thickness
Jh11 : Tip diameter h11
M : Collar diameter
