Specifications
Material : Urelast - 90 Shore A
Dimensions:
- Height: from 9.5 to 40mm
- Diameter: from 6 to 39.5mm
Max strength : from 10 to 2500 daN
Benefits :
- Does not break
- Does not require any maintenance
Tolerances :
- Diameter +0.5 / +0.3
Maintenance recommendation :
- Regular checks
- Storage : Store out of direct sunlight and in an environment where humidity does not exceed 65%.
To order you need to indicate :
- The chosen reference based on the catalog
Example : A50.006.000

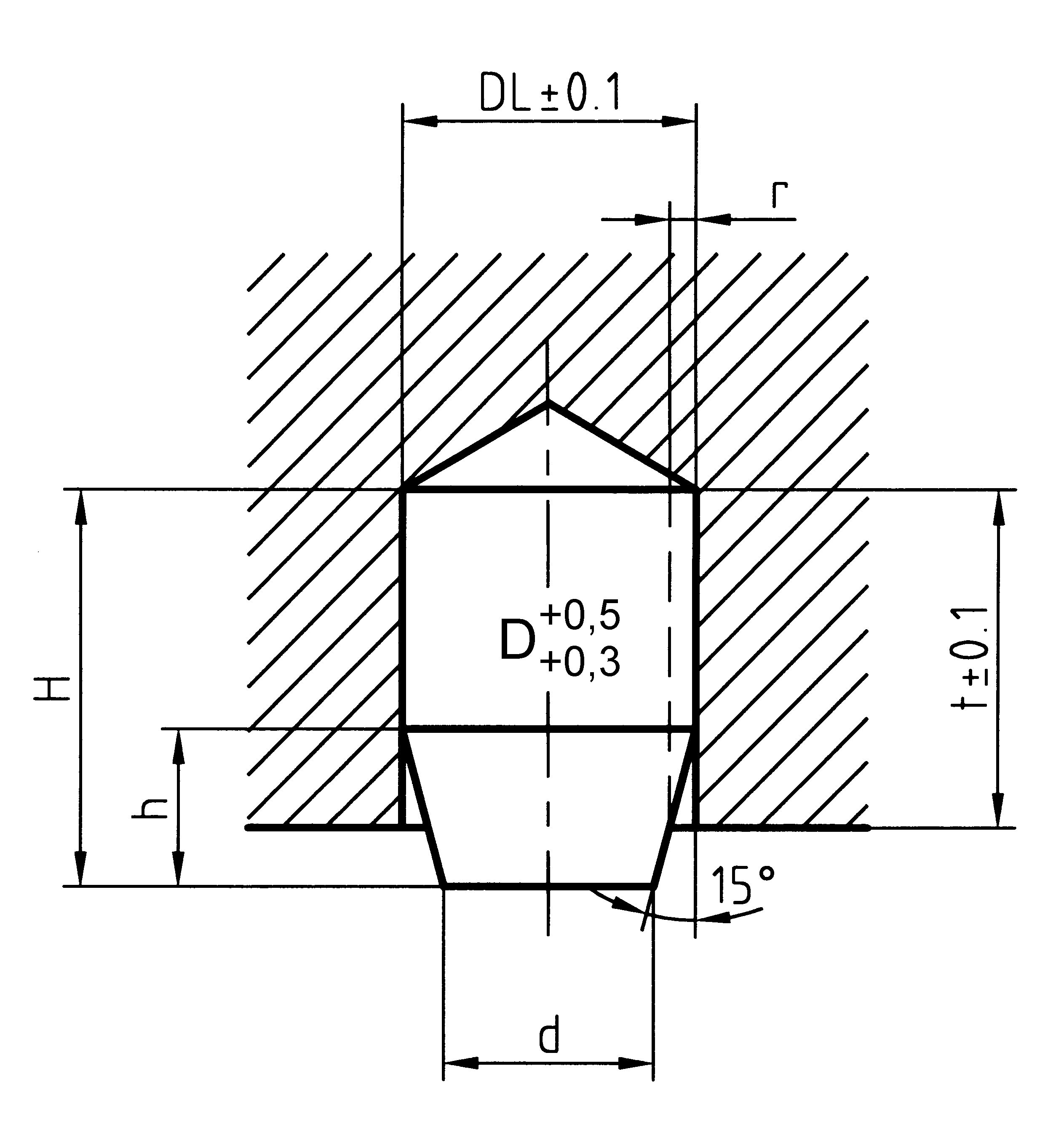

Plan
DL : Diameter
d : Tapered diameter
H : Height
h : Tapered height
t : Press-fit length
