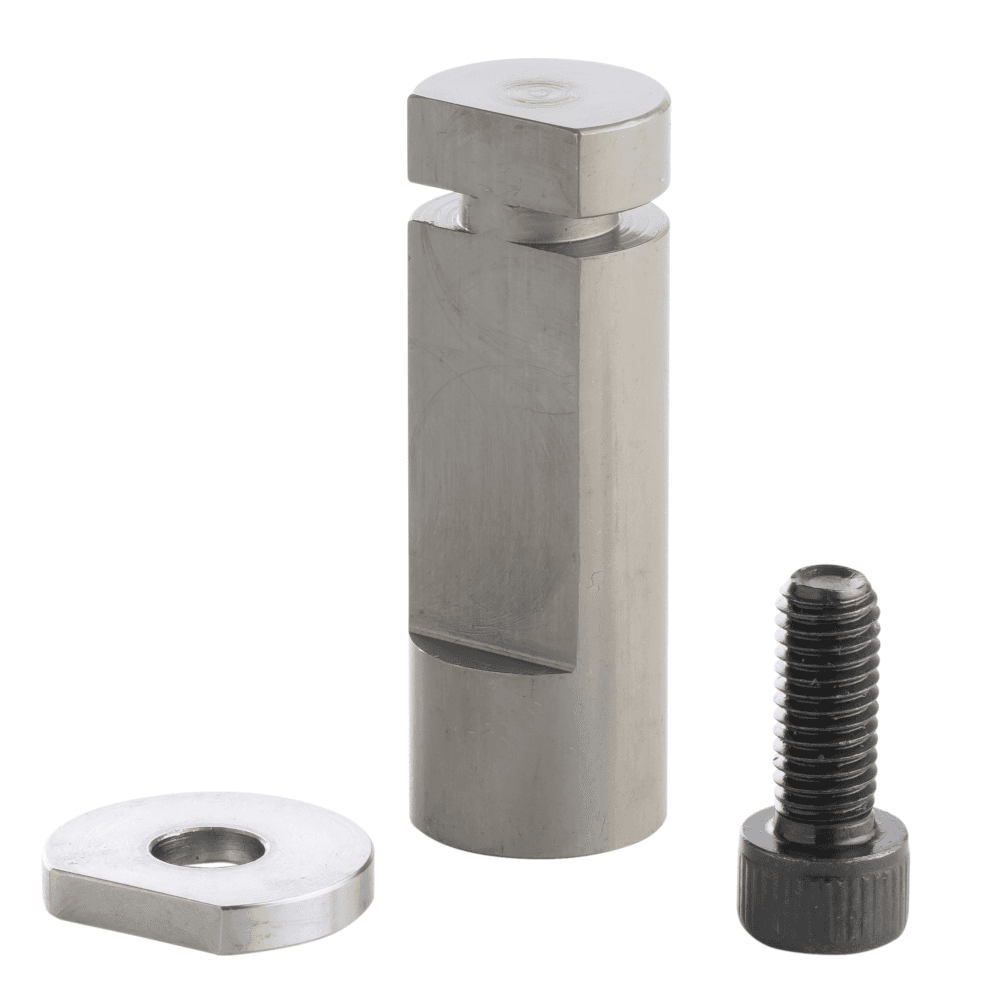

Specifications
Material :
- Body Z160CDV12
- Washer : 100C6
The screw and washer are included.
Dimensions :
- Length: 48 to 68mm
- Minimal guiding length : 38 to 58mm
Benefits:
- Simplified strip guidance.
- Easy to install
Tolerances : We recommand a bore tolerance H7
To order you need to indicate :
- The chosen reference based on the catalog
Example : GIB.100

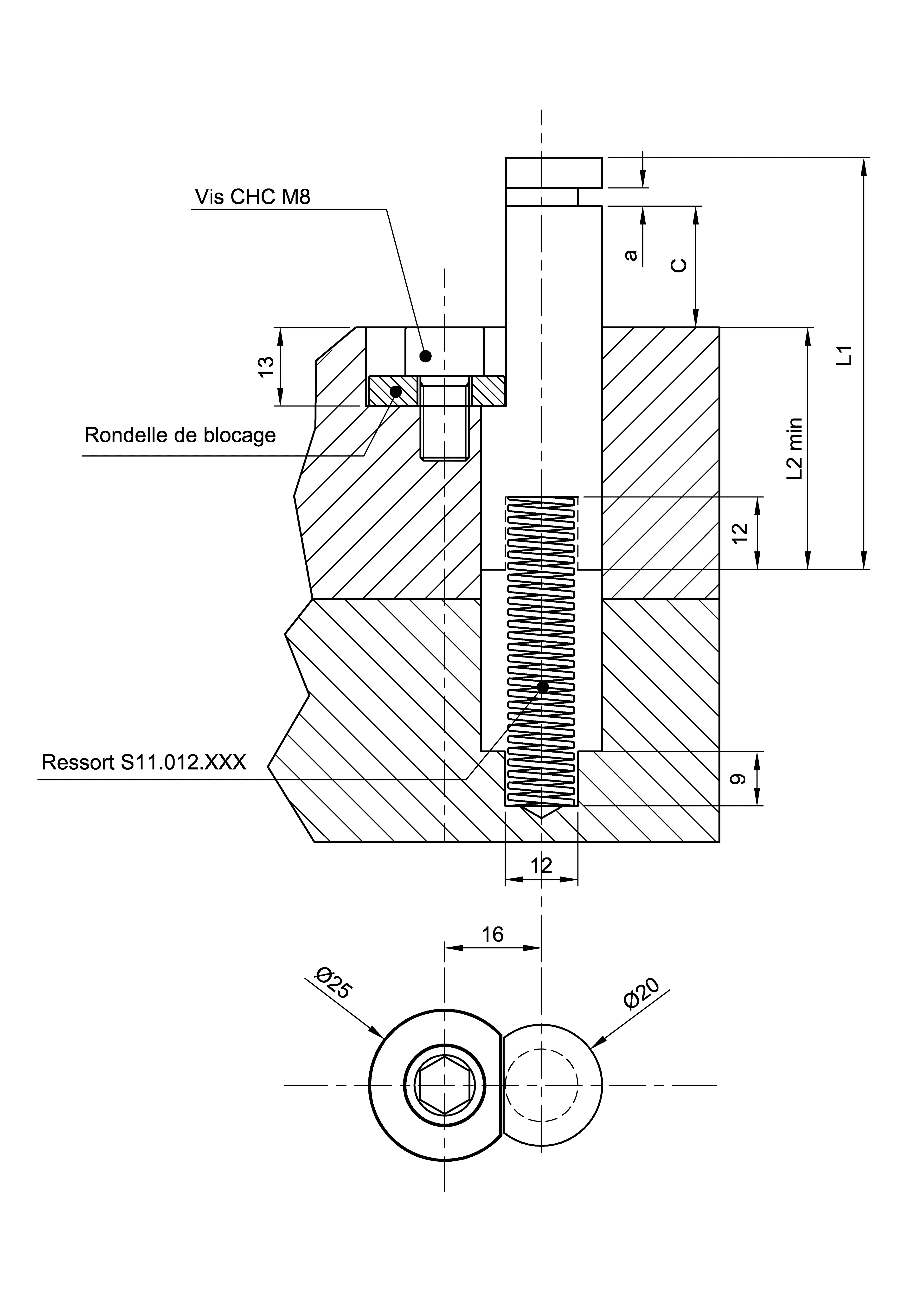

Plan
L1 : Strip guide body length
L2 min : Press-fit length
C : Length over bore Longueur hors alésage
a : Band passage
