Specifications
Material : 1.0503 / XC48
Dimensions :
- Diameter : from 20 to 50mm
- Thread : from M16X1.5 to M30X2
Benefits:
- Easy to install
- Standardized form
Recommendation for use :

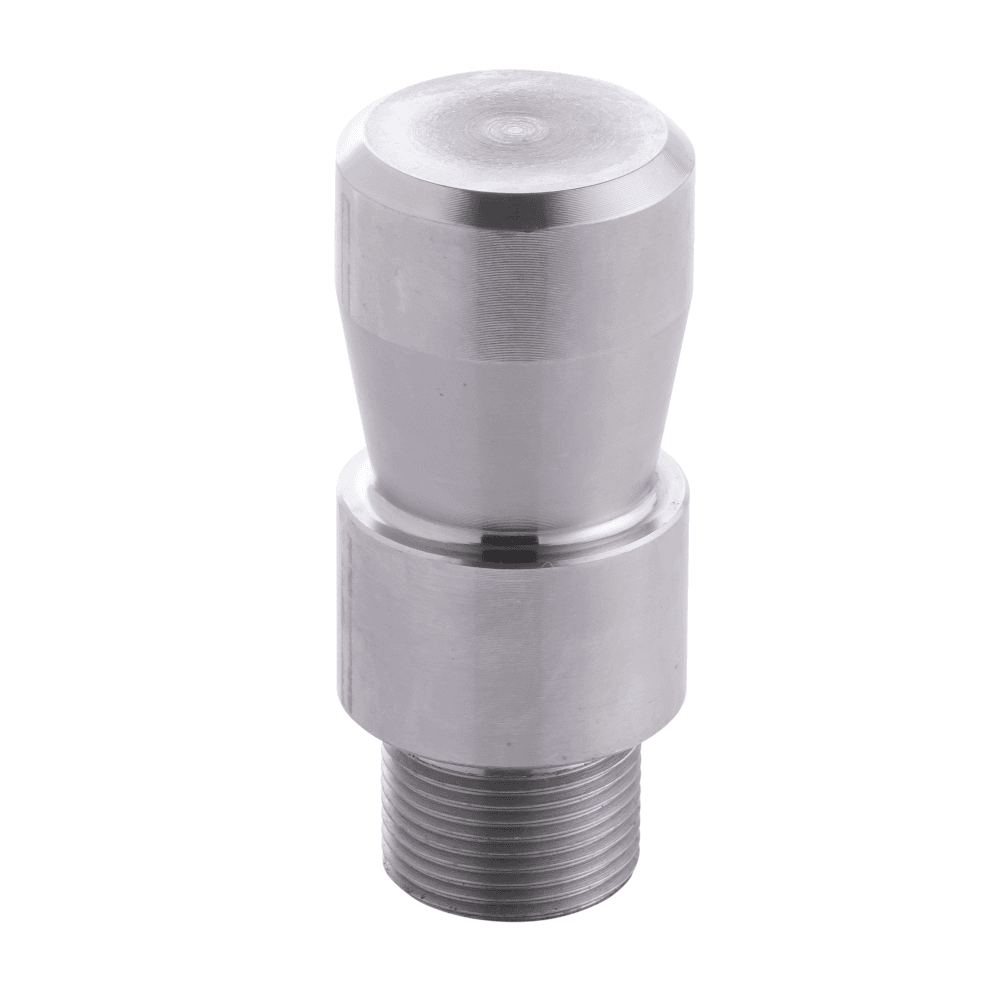

Mounting : The A30.021 Locating bolts is fitted directly on the top plate of the tool.
Maintenance recommendation :
Regular checks
To order you need to indicate :
- The chosen reference based on the catalog
Example : A30.021.010

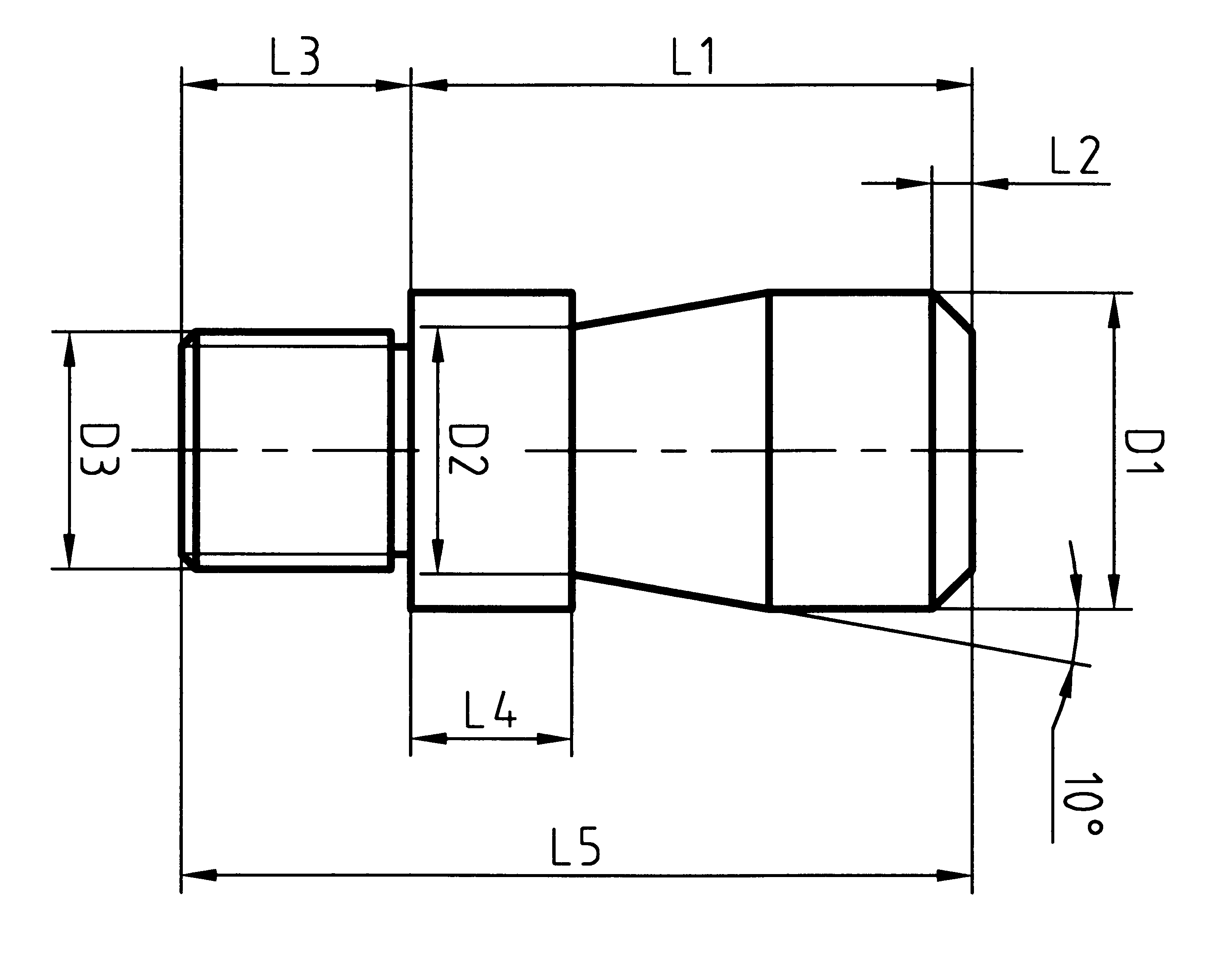

Plan
D1 : Form diameter
D2 : Collar diameter
D3 : Thread diameter
L1 : Form length
L2 : Tapered end length
L3 : Thread length
L4 : Collar length
L5 : Length
