Specifications
Material : C45 / 1.0503
Lifting capacity : from 250 to 2500 daN
Diameter : from 16 to 40mm
Benefits :
- Versatile
- Easy to use
- High lifting capacity
Recommendation for use :
Mounting: A30.010 lifting lugs are mounted on the edges of the plates.
Maintenance recommendation :
Regular checks
To order you need to indicate :
- The chosen reference based on the catalog
Example : A25.006.050

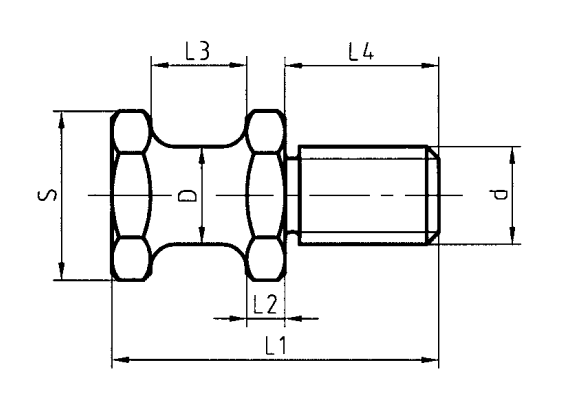

Plan
L1 : Length
L4 : Press-fit length
D : Nose diameter
d : Press-fit diameter
S : Outside diameter nose
