Specifications
Standard : DIN 5688-8
Thread dimensions : From M12 to M30
Safety coefficient : 4
Working load limit (WLL) : from 0.6 to 5.5 T
Operating temperature : Between -20°C and +200°C
Benefits :
- Easy to install
- Robust
- Can swivel under load for a wide range of lifting configurations.
Recommendation for use :
Mounting : The lifting ring must be screwed until it rests flat on the surface to be lifted.
Lifting : Do not exceed the working load limit. These are calculated for lifting in the axis of the lifting ring.
Maintenance recommendation :
Regular checks
To order you need to indicate :
- The chosen reference based on the catalog
Example : A30.013.020

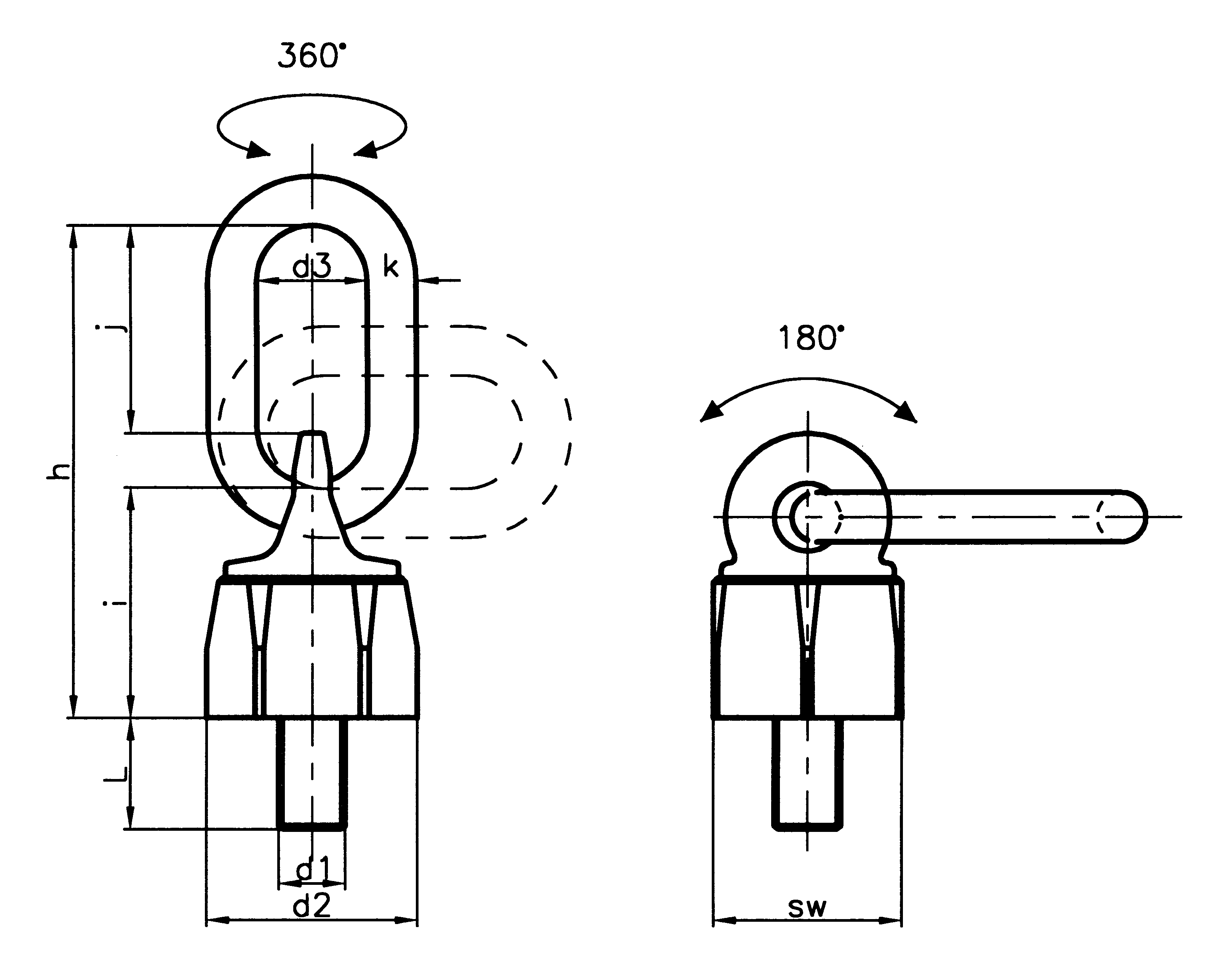

Plan
h : Length over plate
L : Thread length
i : Ring base length
j : Usable length inside the ring
d1 : Thread diameter
d2 : Base diameter
d3 : Inside ring diameter
k : Ring thickness
