Fixing washers for demountable pillar DIN P02
The P02.0XX.100 fixing washers for demountable pillar in combinaison with a srew enable the pillars DP22 to be fixed by below.
Specifications
Material : Burnished steel
Compatible with : Demountable guide pillar with central fixing DP22 - DIN 9825
Dimensions : For pillars diameter 19 to 80
Benefits :
- Minimum footprint
- Screw head housed in the washer to optimise space requirement in the tool
- Burnished
Conception :
- Cutted
- Deburred
- Burnished
Recommendation for use :
Mounting : The washer is fixed directly in the tool plate with the DP22 pillar.
To order you need to indicate :
- The required reference based on your pillar diameter
Example : P02.025.100
Technical data

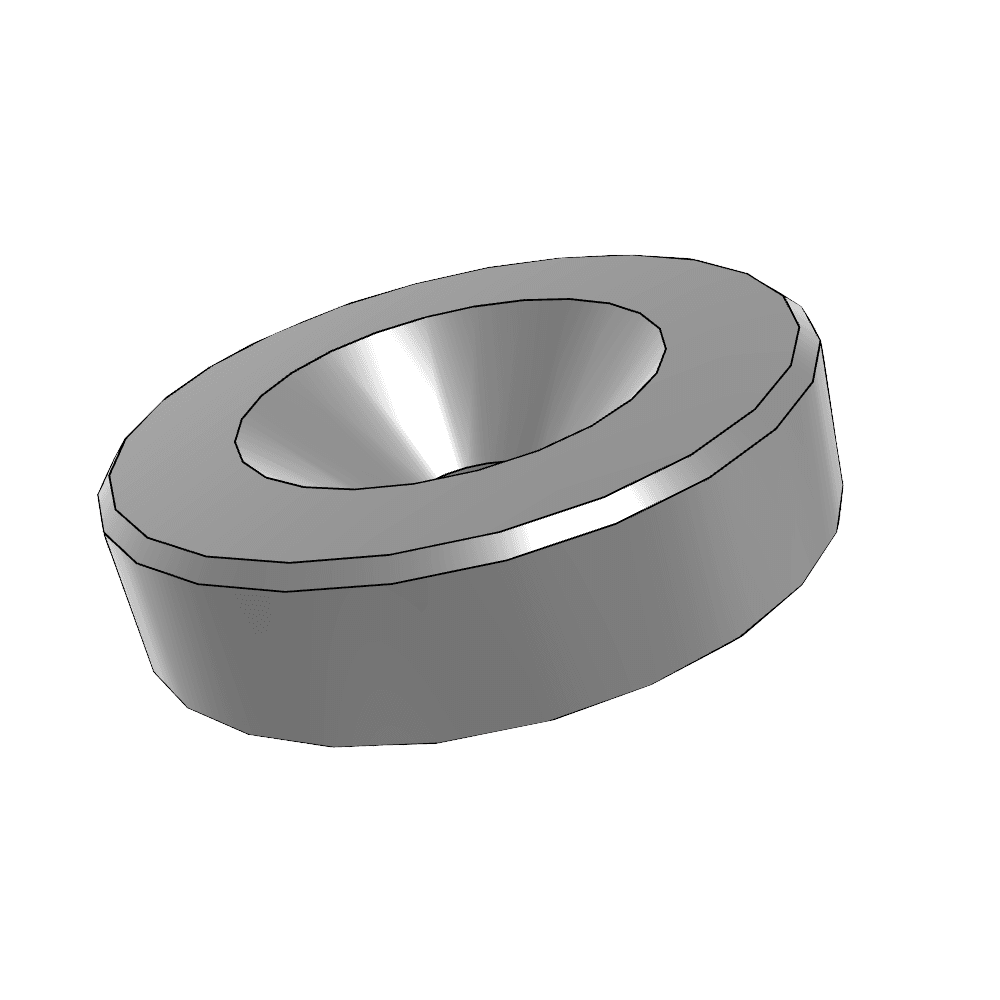

3D Model

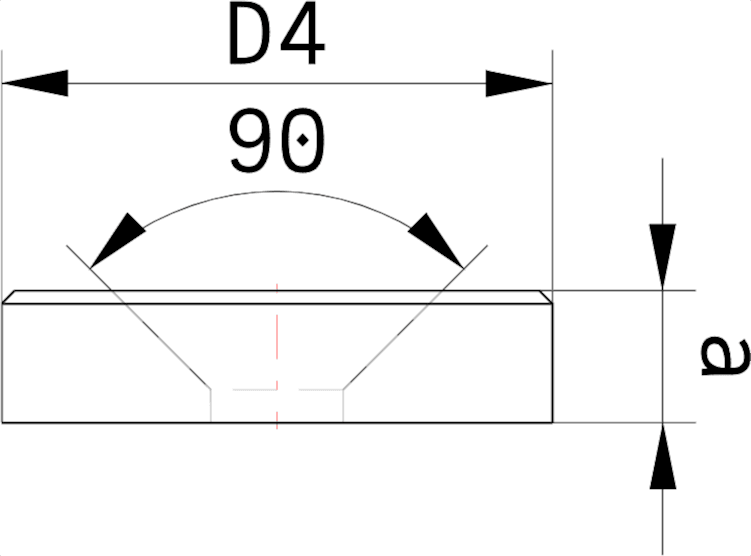

Plan
D4 : Washers diameter
A : Washers thickness
