Demoutable aluanodised guide bushes ALU - ISO 9448

Material: AG 4.5 (5083)

Standard : ISO 9448

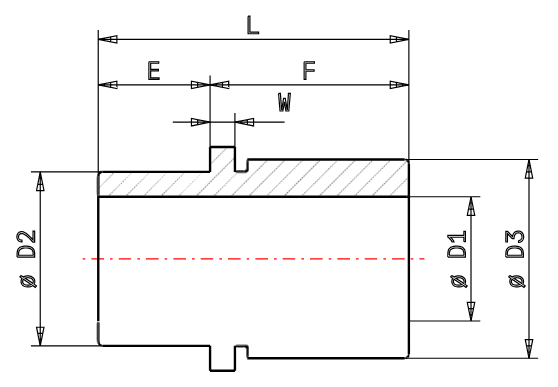

Dimensions :

• Diameter : from 20 to 80mm
• Length : from 34 to 108mm

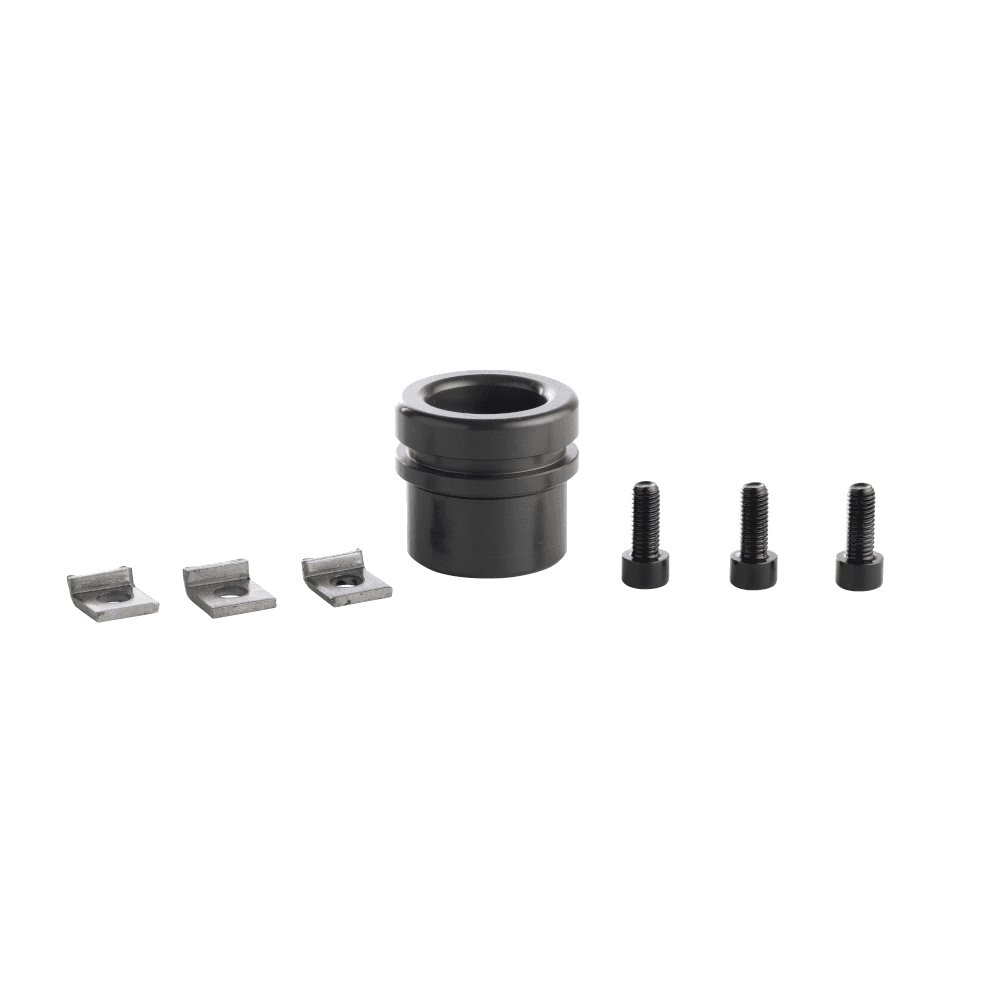

Type of mounting : Clamps and screws fixing supplied with the bushe.

Hardness : 300/400 Hv

Type of lubrification : Self-lubrificating. A simple lubrication with light oil at start-up is enough.

Benefits :

• Very high wear resistance.
• Non-corrosive
• Non-magnetic

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding / honing

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendation for use :

• Mounting : The bushe is fitted using the clamps and screws directly in the tool plate. It is important to ensure that the pillar is correctly fitted to guarantee the parrallelism with the guide bushes and preventing premature wear.
• Do not exceed working speed. Compliance with working speeds ensures the integrity of the tool and bushe.
• Environment : Do not store or use the bushe in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The lenght

Example : ALU.032.046
