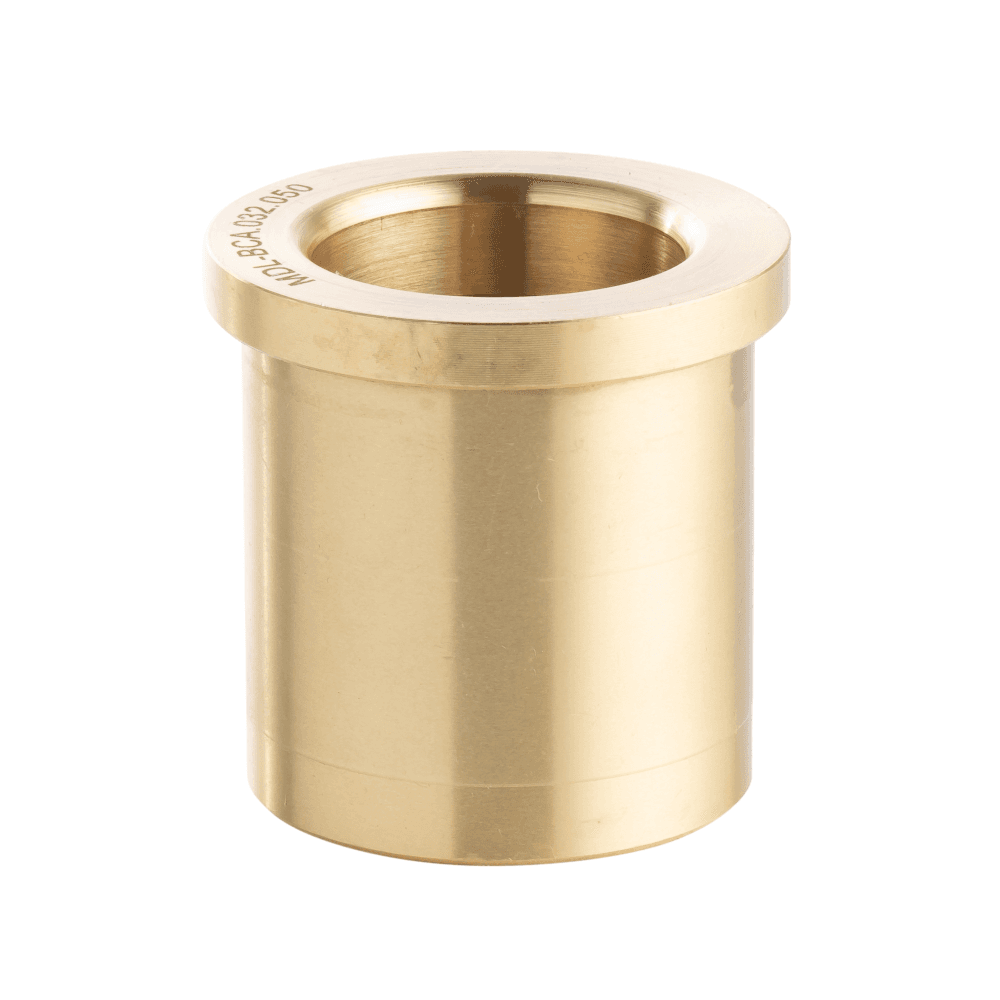

Press-fit bronze guide bushes BCA - NF E63-054
The BCA press-fit bronze guide bushe guides cutting tools in a precise and stable position.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fpress-fit-bronze-guide-bushes-bca-nf-e63-054.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Felements-de-guidage.png&w=3840&q=75)
Specifications
Material: UZ 23 A4
Standard : NF E63-054
Dimensions :
- Diameter : from 20 to 80mm
- Length : from 34 to 108mm
Working speed : 0 to 45m/min
Type of mounting : Clamps fixing
Hardness : 160 hb
Type of lubrification : Scratch lubrication
Benefits :
- High working speed thanks to the bronze inserting due to its low coefficient of friction.
- Small shoulder
Conception : Modular design for an easy integration and simplified maintenance.
- Machining
- Grinding / honing
- Grooving
- Treatment
Target application :
Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.
Recommendation for use :
- Lubrification : Make sure that the bushe is always well lubricated to ensure its efficiency and lifespan. Lubrication is provided by the grease nipple and the grooves inside the bushe.
- Mounting : The bushe is fitted using the clamps and screws directly in the tool plate. It is important to ensure that the pillar is correctly fitted to guarantee the parrallelism with the guide bushes and preventing premature wear.
- Do not exceed working speed. Compliance with working speeds ensures the integrity of the tool and bushe.
- Environment : Do not store or use the bushe in a corrosive environment.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Load control
To order you need to indicate :
- The diameter
- The lenght
Example : BCA.032.046
3D Model

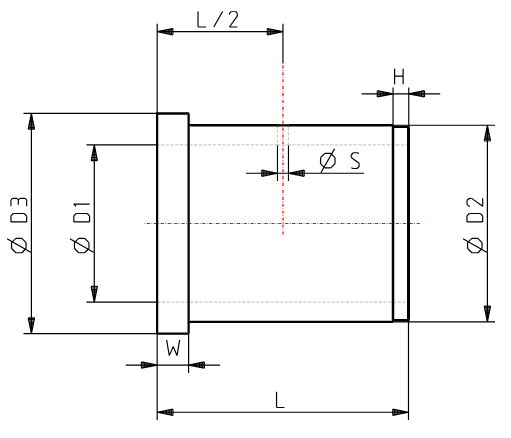

Plan
D1 : Pillar diameter
D2 : Bushe press-fit diameter
D3 : Collar diameter
L : Length
W : Collar thickness
![Press-fit bronze guide bushes BCA - NF E63-054 drawing. These guide bushes, are used with guide pillars, to design guide systems, to be integrated into the construction of press tools](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fpress-fit-bronze-guide-bushes-bca-nf-e63-054-plan.png&w=1080&q=75)
