Demountable bronze guide bushes BRO - ISO 9448

Material: UZ 23 A4

Standard : ISO 9448

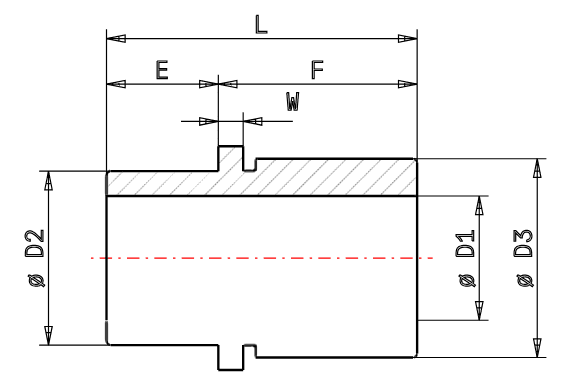

Dimensions :

• Diameter : from 20 to 80mm
• Length : from 34 to 108mm

Working speed : 0 to 45m/min

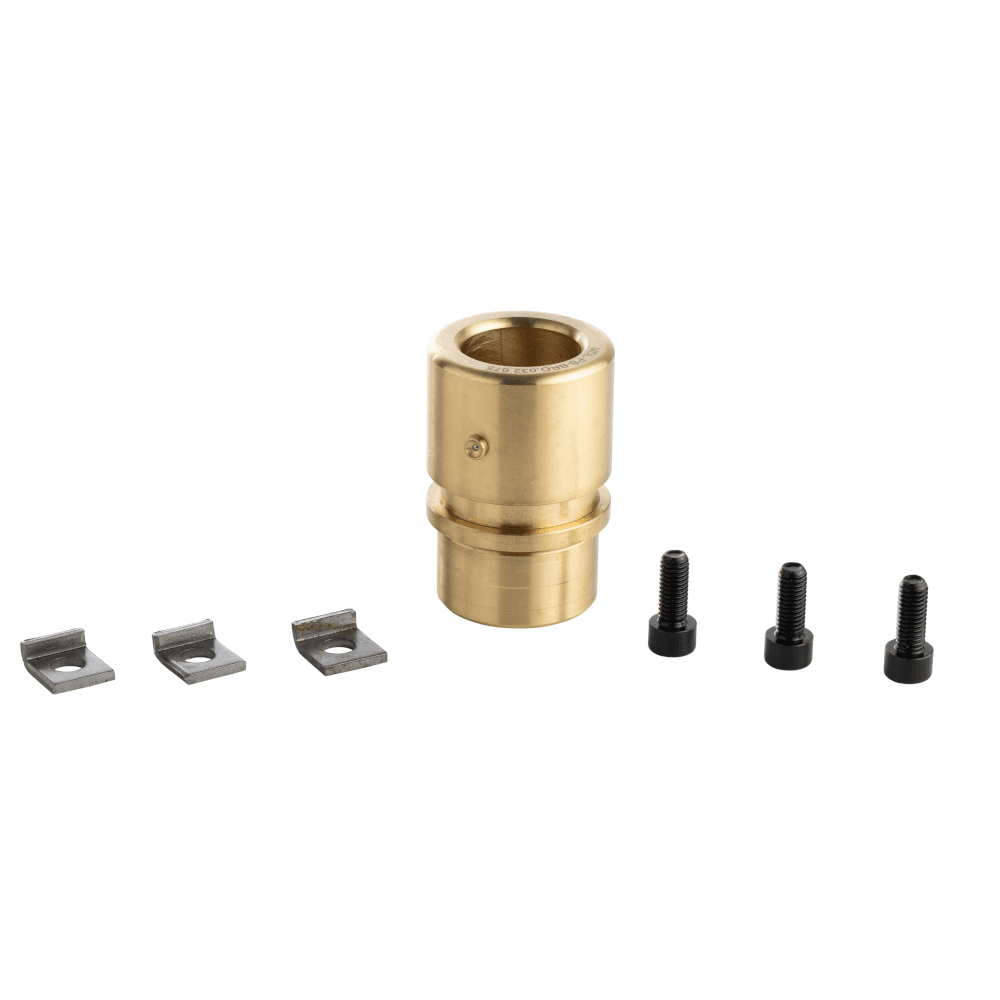

Type of mounting : Clamps and screws fixing supplied with the bushe.

The Easyfit system facilitate the bushe mounting in the bore making it quicker to adjust and install

Hardness : 160 HB

Type of lubrification : Lubrication scratches with grease nipple.

Benefits :

• High working speed

Available in 3 tolerance classes for precise matching with the guide bushes according to the need.

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding / honing

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendation for use :

• Lubrification : Make sure that the bushe is always well lubricated to ensure its efficiency and lifespan. Lubrication is provided by the grease nipple and the grooves inside the bushe.

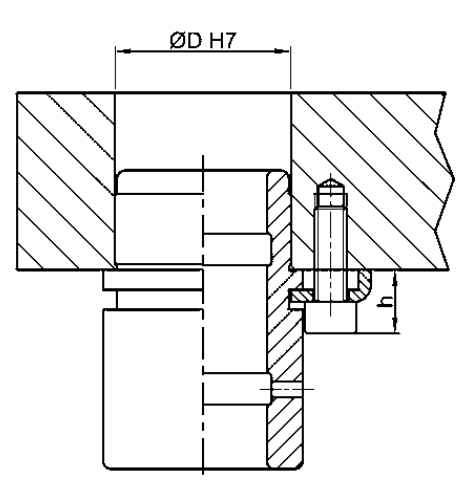

• Mounting : The bushe is fitted using the clamps and screws directly in the tool plate. It is important to ensure that the pillar is correctly fitted to guarantee the parrallelism with the guide bushes and preventing premature wear.
• Do not exceed working speed. Compliance with working speeds ensures the integrity of the tool and bushe.
• Environment : Do not store or use the bushe in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The lenght

Example : BRO.032.046
