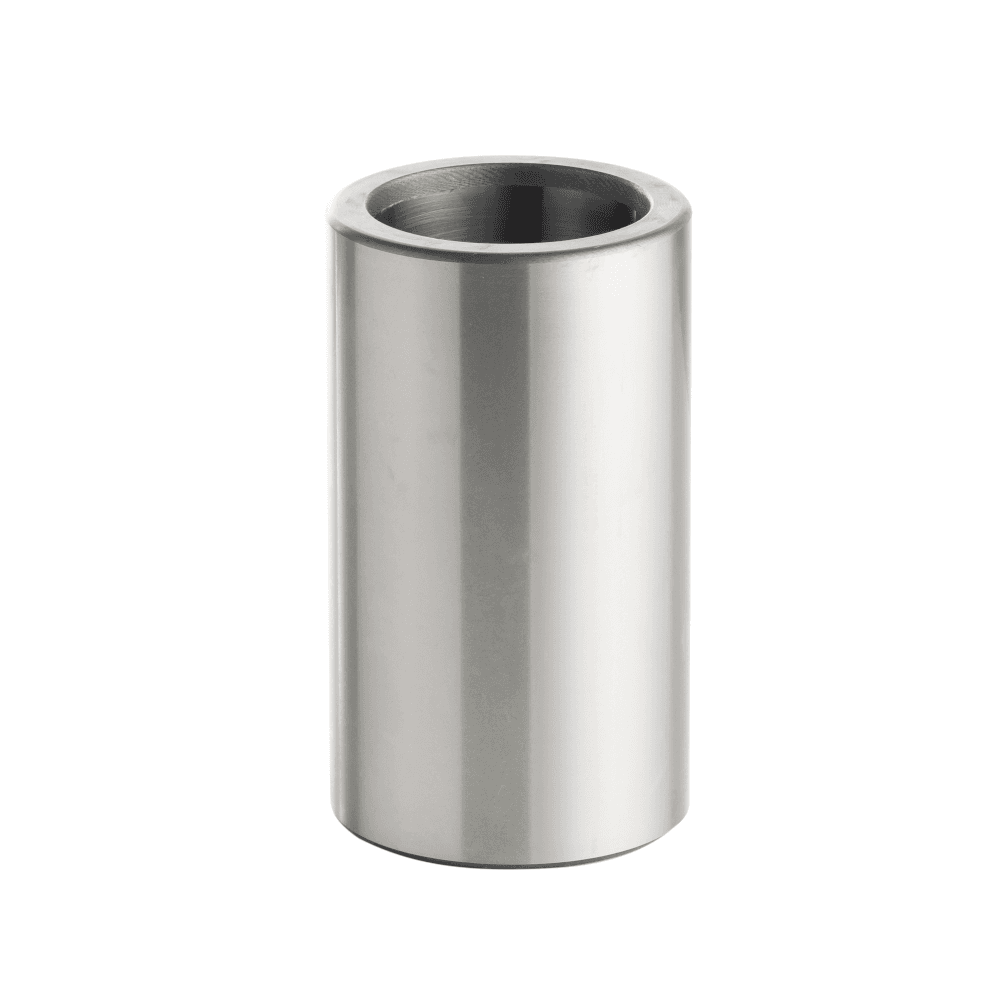

Straight sleeve ball bearing bushes B30 - ISO 9448

Material: 16MnCr5 - Case-hardened

Standard : ISO 9448

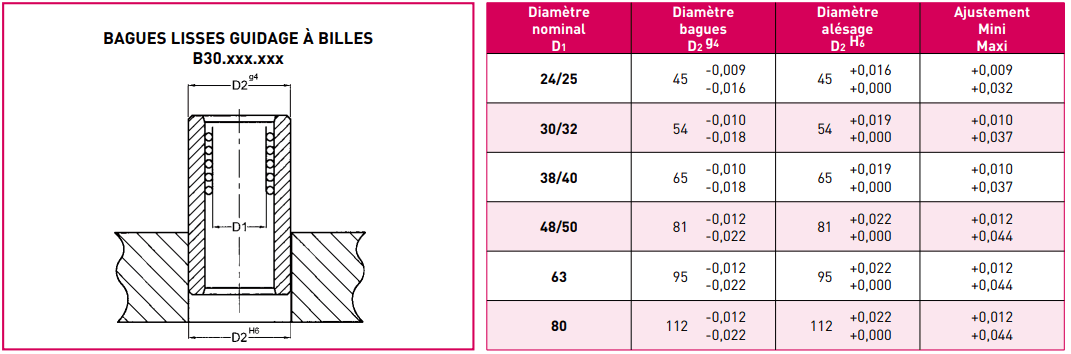

Dimensions :

• Diameter : from 24 to 80mm
• Length : from 65 to 265mm

Working speed : over 45m/min

Type of mounting : The bushes are glued directly into the tool plate.You should not tight fitting the bushes as there is a risk that the internal diameter and thereby changing the balls preload.

Hardness : 60 à 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.

Treatment : Vacuum degassed alloy steel

Type of lubrification : No lubrication, ball bearing guides

Benefits :

• Ball bearing guiding system allow very high speed work and is extremely precise. This type of guide is particularly interesting for thin sheet applications.

Available in 3 tolerance classes for precise matching with the guide bushes according to the need.

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding / honing

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendation for use :

• Mounting : The straight sleeve bushes are glued into the plate

1.Degrease with acetone or a similar solvant and thoroughly wipe clean

the outer surface of the straight sleeve bush and the inside of the plate bore.

2. Apply a thin layer of Loctite 601 glue to both surfaces.

3. Insert the bush into the hole while turning.

4. Leave to set for the required amount of time (e.g. 4 hours at 22°C)

• Do not exceed working speed. Compliance with working speeds ensures the integrity of the tool and bushe.
• Environment : Do not store or use the bushe in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The lenght

Example : B30.032.080
