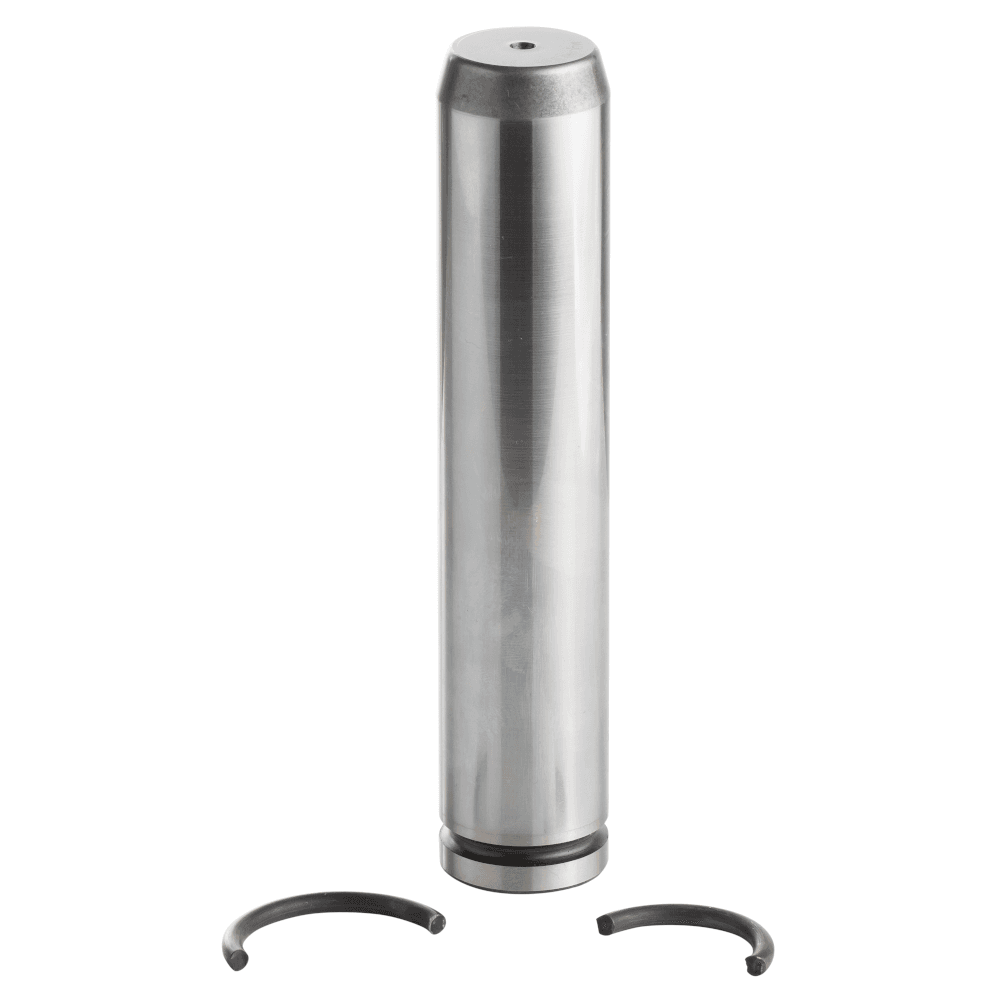

Guide pillar with lower snap-ring clamping RI - NF E63-050
The RI guide pillar wit lower snap-ring clamping guides cutting tools in a precise and stable position.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fguide-pillar-with-lower-snap-ring-clamping-ri-nf-e63-050.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Felements-de-guidage.png&w=3840&q=75)
Specifications
Material : 16MnCr5 - Case-hardened
Standard : NF E63-050
Dimensions :
- Diameter : from 12 to 100mm
- Length : from 80 to 450mm
Type of mounting : Fitted with two snap rings supplied with the column
Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.
Treatment : Case hardening and tempering for optimum surface hardness.
Benefits :
- Precise alignment
- Reduced wear and maintenance of press tools
Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.
Conception : Modular design for an easy integration and simplified maintenance.
- Machining
- Grinding
- Treatment
Target application :
Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.
Recommendations for use :

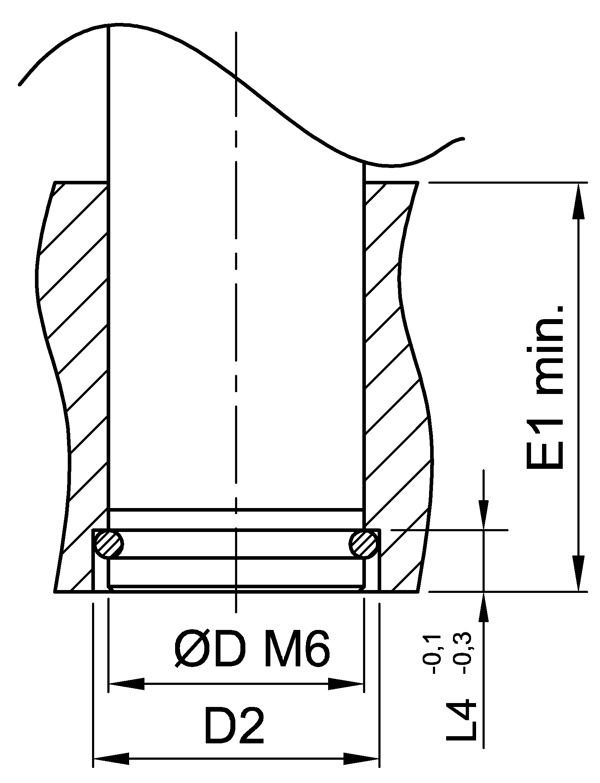

- Mounting : The column is mounted and flanged into the plate using the two snap ring . It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
- Environment : Do not store or use the column in a corrosive environment.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Load control
To order you need to indicate :
- The diameter
- The length
Example : RI.032.180
Technical data
3D Model

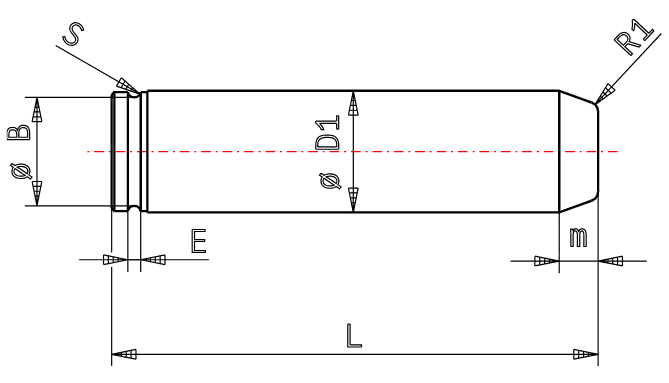

Plan
L : Pillar length
D1 : Pillar diameter
m : Tapered length
E : Snap-ring notch length
B : Snap-ring notch diameter
