Demountable guide pillar with mounting clamps DP21 - DIN 9825

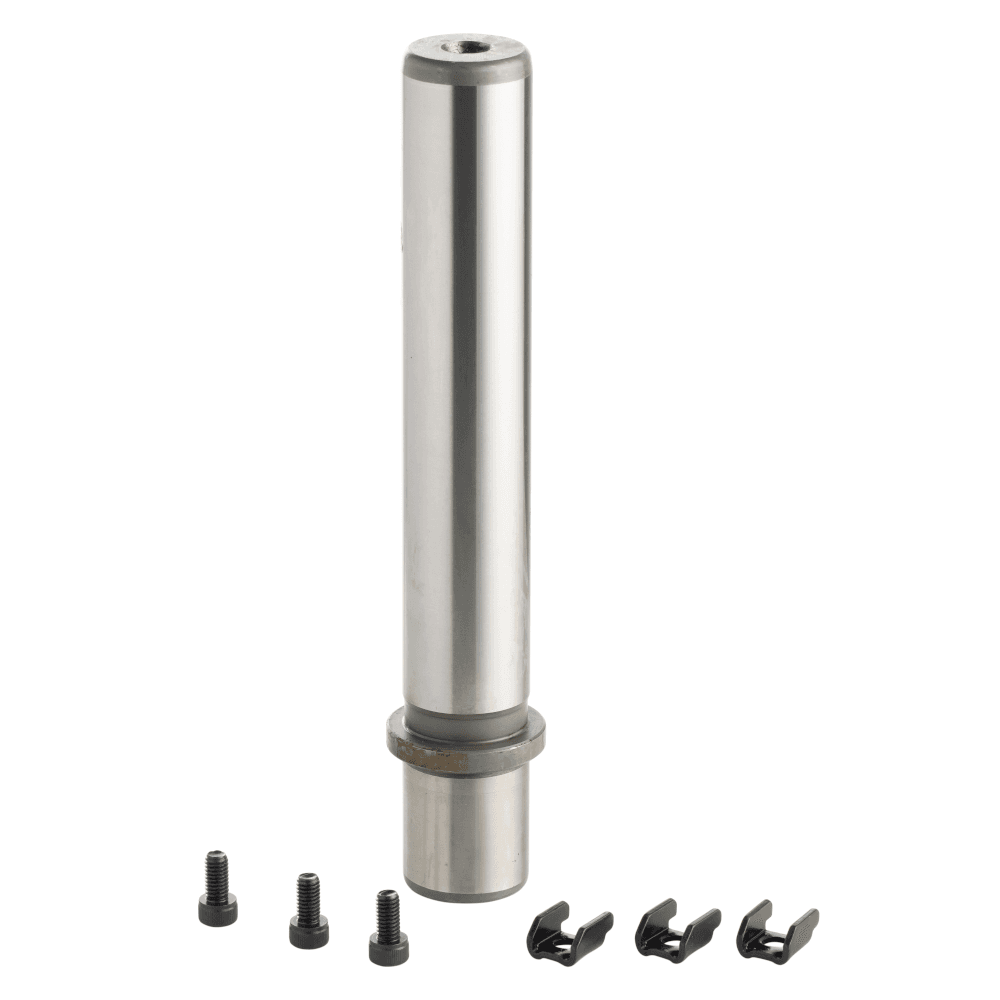

The DP21 clamps-mounted guide column guides cutting tools in a precise and stable position.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fdemountable-guide-pillar-with-mounting-clamps-dp21-din-9825.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Felements-de-guidage.png&w=3840&q=75)
Specifications
Material : 16MnCr5 - Case-hardened
Standard : DIN 9825
Dimensions :
- Diameter : from 19 to 80mm
- Length : from 123 to 463mm
- Guide length : from 100 to 400mm
Type of mounting : Clamps and screws fixing supplied with the column.
The Easyfit system facilitate the pillar mounting in the bore making it quicker to adjust and install
Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.
Treatment : Case hardening and tempering for optimum surface hardness.
Benefits :
- Precise alignment
- Easy maintenance
- High durability
- Clamps and screws fastening make the assembly disassembly easy.
Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.
Conception : Modular design for an easy integration and simplified maintenance.
- Machining
- Grinding
- Treatment
Target application :
Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.
Recommendations for use :
- Mounting : The column is fitted using the clamps and screws directly in the tool plate. It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
- Environment : Do not store or use the column in a corrosive environment.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Load control
To order you need to indicate :
- The diameter
- The guiding length
Example : DP21.032.180
Technical data
3D Model

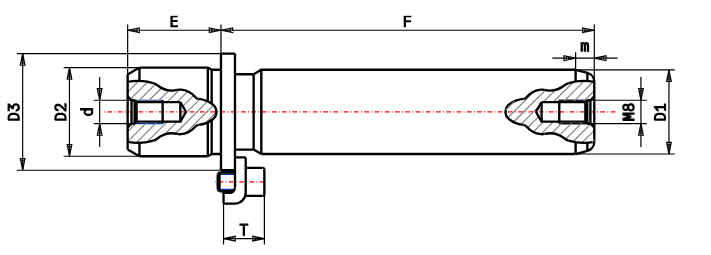

Plan
D1 : Pillar diameter
E : Press-fit length
F : Guiding length
m : Tapered length
d : Thread diameter
