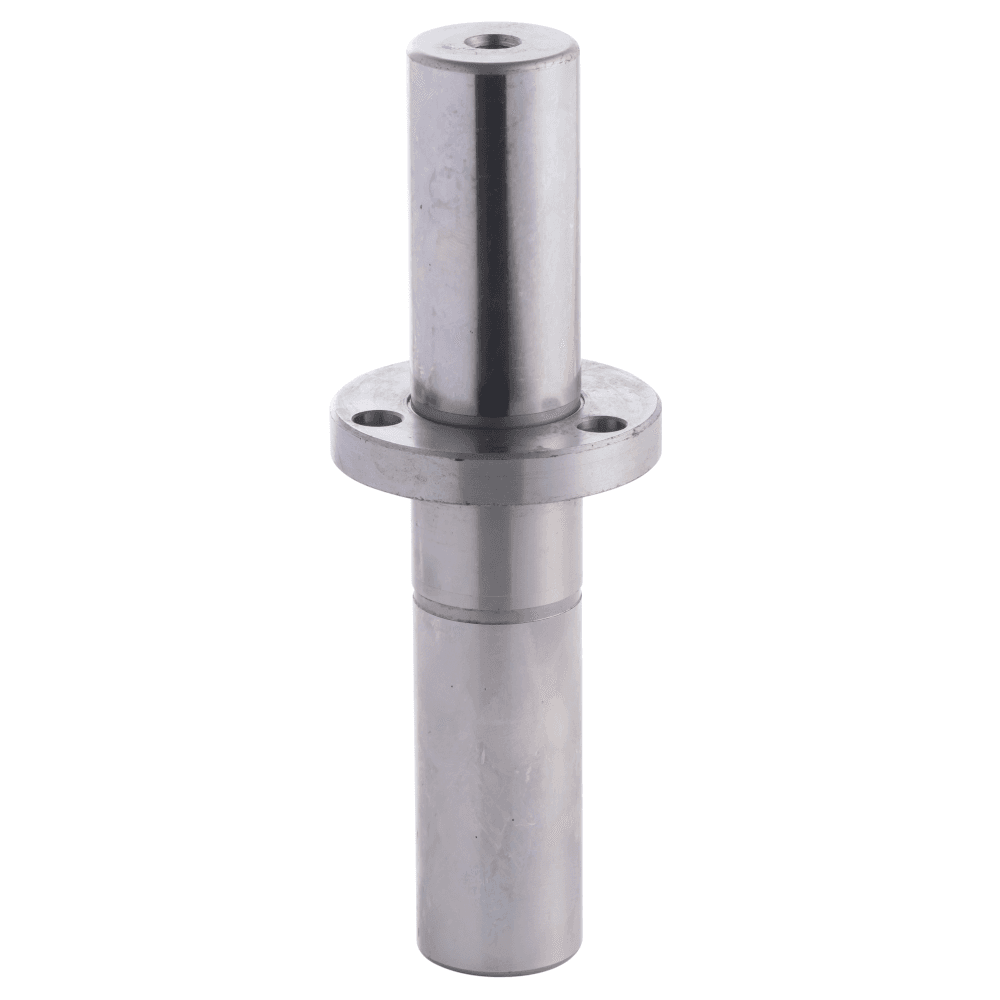

Demountable guide pillar with retaining collar EPO

Material : 16MnCr5 - Case-hardened

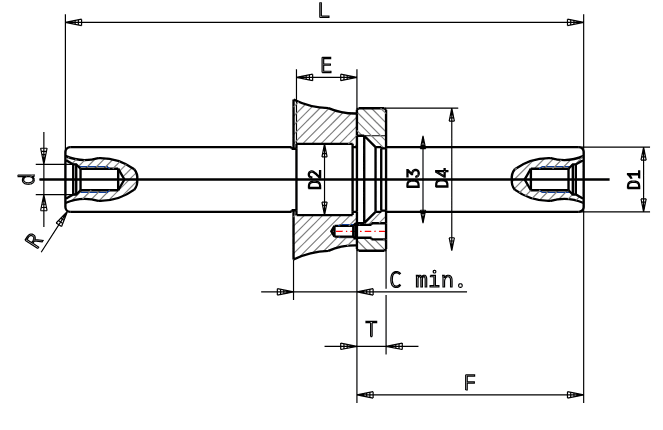

Dimensions :

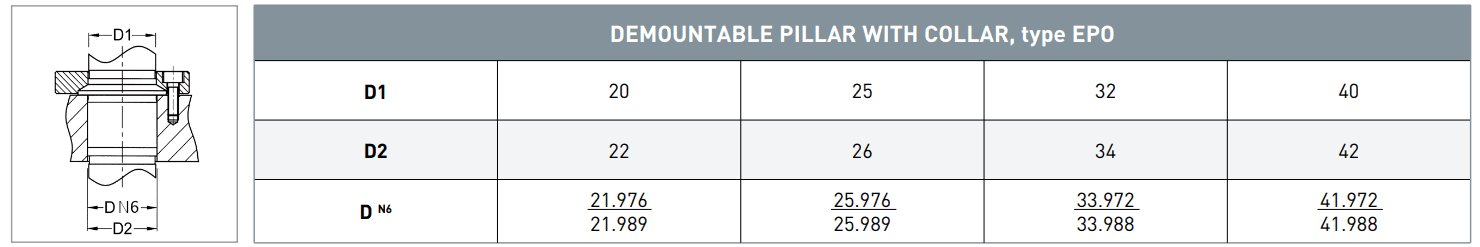

• Diameter : from 20 to 40mm
• Length : from 160 to 250mm

Type of mounting : Flanged fitted on the intermediate plate (also called hold-down or stripper). The flange is supplied with the pillar.

Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.

Treatment : Case hardening and tempering for optimum surface hardness.

Benefits :

• Precise alignment
• Reduced wear and maintenance of press tools
• Suitable for high speed thank to its intermadiate plate mounting

Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding
• Treatment

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance..

Recommendations for use :

• Mounting : The column is mounted into the intermediate plate using the flange supplied. It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
• Environment : Do not store or use the column in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The length

Example : EPF.032.180
