Guide pillar BA - NF E63-120/121

Material : 16MnCr5

Standard : NF E63-120/121

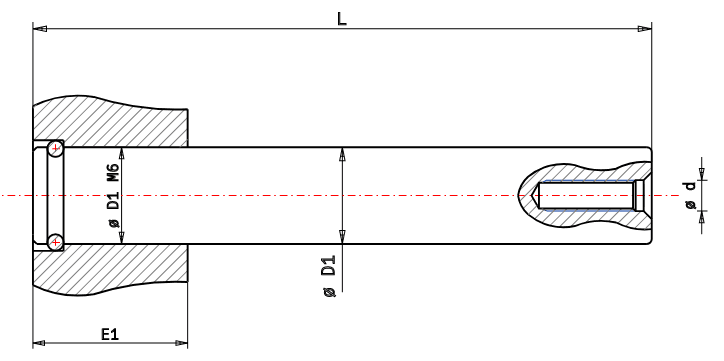

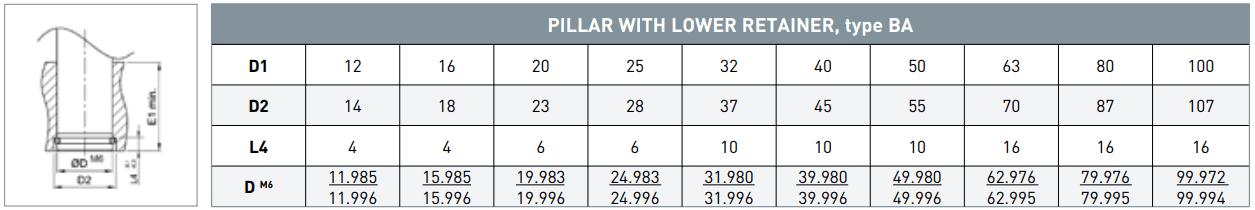

Dimensions :

• Diameter : from 12 to 100mm
• Length : from 100 to 500mm

Type of mounting : Clamped with two snap-ring supplied with the column.

Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.

Benefits :

• Precise alignment
• Easy maintenance
• High durability

Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding
• Treatment

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendations for use :

• Mounting : The column is mounted and flanged into the plate using the two snap ring . It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
• Environment : Do not store or use the column in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The length

Example : BA.032.180
