Conical guide pillar CA - NF E63-120/121

Conical guide pillar CA - NF E63-120/121

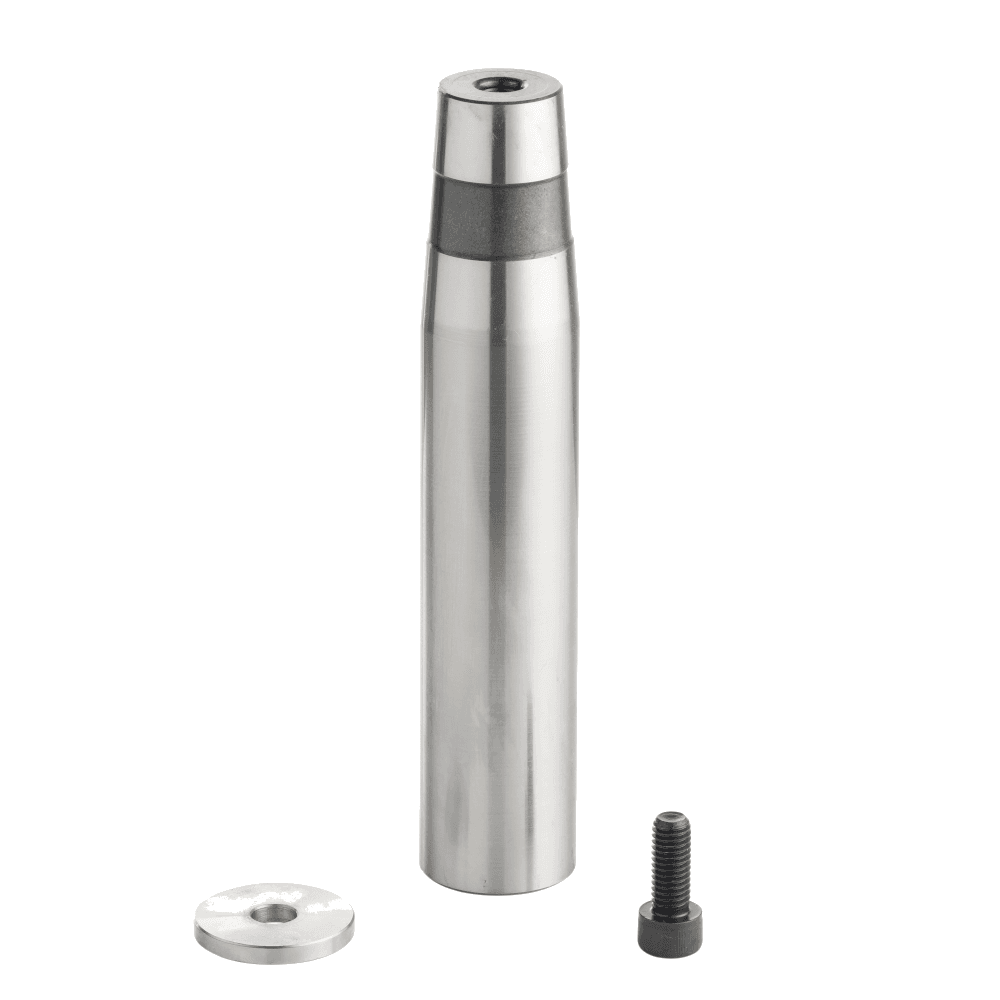

The CA conical guide column guides cutting tools in a precise and stable position.

Specifications

Material : 16MnCr5

Standard : NF E63-120/121

Dimensions :

  • Diameter : from 12 to 100mm
  • Length : from 100 to 500mm

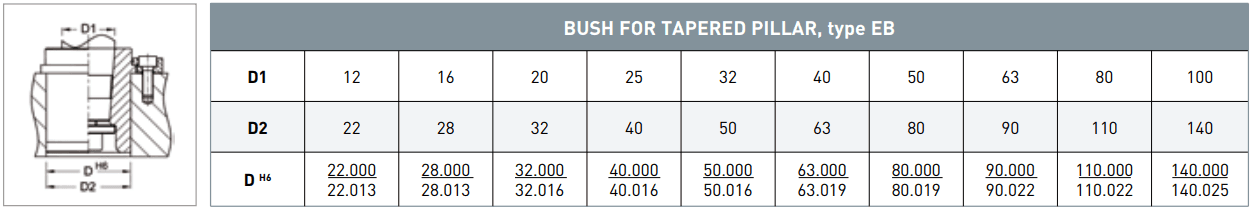

Available in 3 cone lenghts. The guide pillar must have the same cone lenght than the bushe EB.

Type of mounting : Fixing with screw and washer(supplied) into the conical bushe EB.

Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.

Benefits :

  • Precise alignment
  • Reduced wear and maintenance of press tools
  • Reduced backlash and friction thanks to the tapered fitting.
  • High stability

Conception : Modular design for an easy integration and simplified maintenance.

  • Machining
  • Grinding
  • Treatment

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendations for use :

  • Mounting : The pillar is mounted with the guide bushe EB directly into the plate with screw and washer. It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
  • Environment : Do not store or use the column in a corrosive environment.

Maintenance recommendations :

  • Regular cleaning
  • Regular inspection
  • Load control


To order you need to indicate :

  • The diameter
  • The length
  • The cone length

Example : CA.032.180.2

Technical data

3D Model

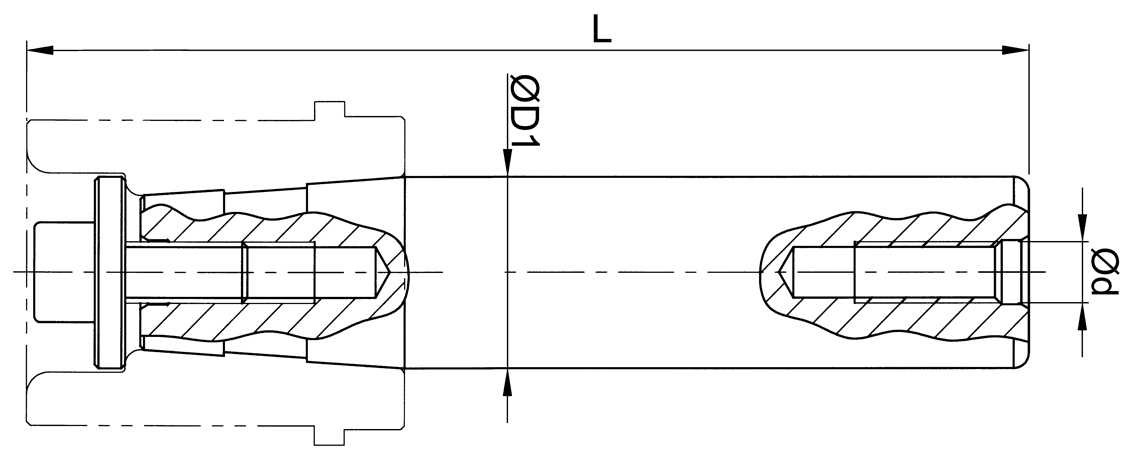

Plan

L : Length

D1 : Pillar diameter

d : Thread diameter

CA plan

Catalogue

Download the full catalogue
