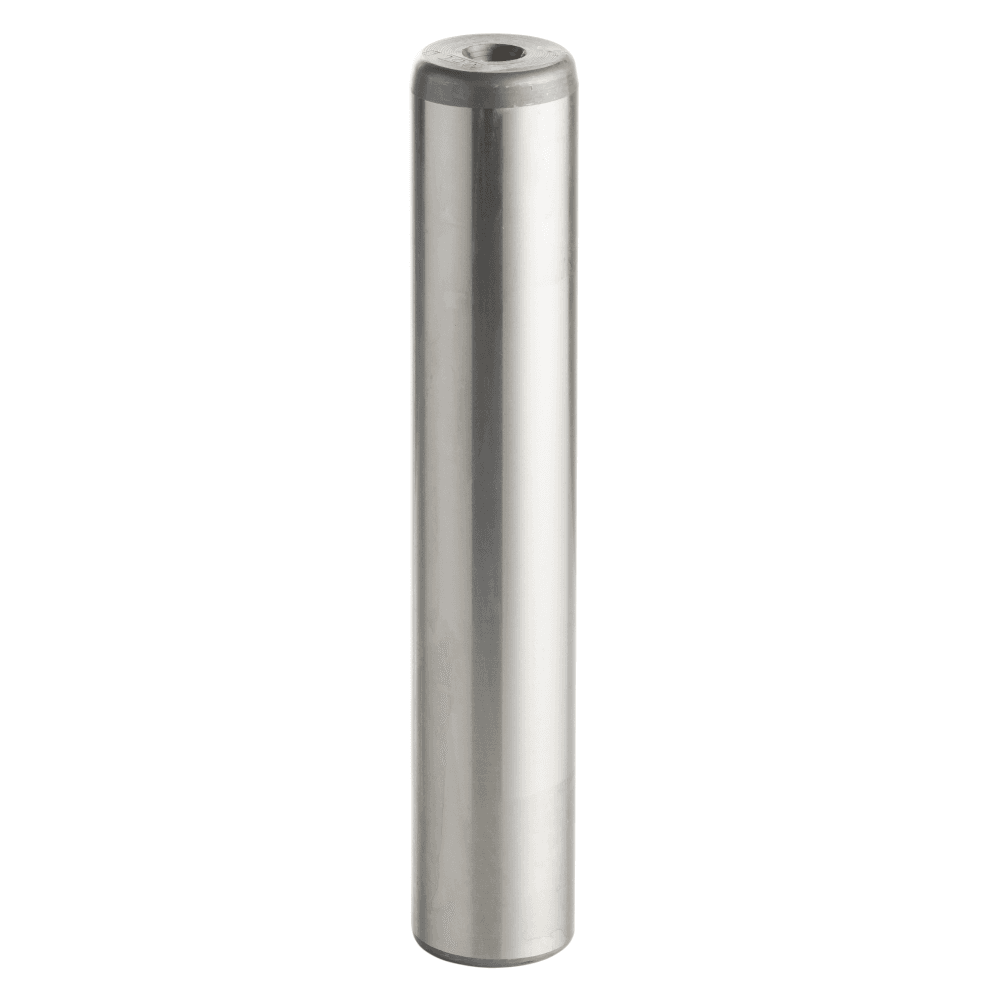

Guide pillar DP10 - DIN 9825
The DP10 straight guide column guides cutting tools in a precise and stable position.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fguide-pillar-dp10-din-9825.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Felements-de-guidage.png&w=3840&q=75)
Specifications
Material : 16MnCr5 - Case-hardened
Standard : DIN 9825
Dimensions :
- Diameter : from 19 to 80MM
- Length : from 100 to 500mm

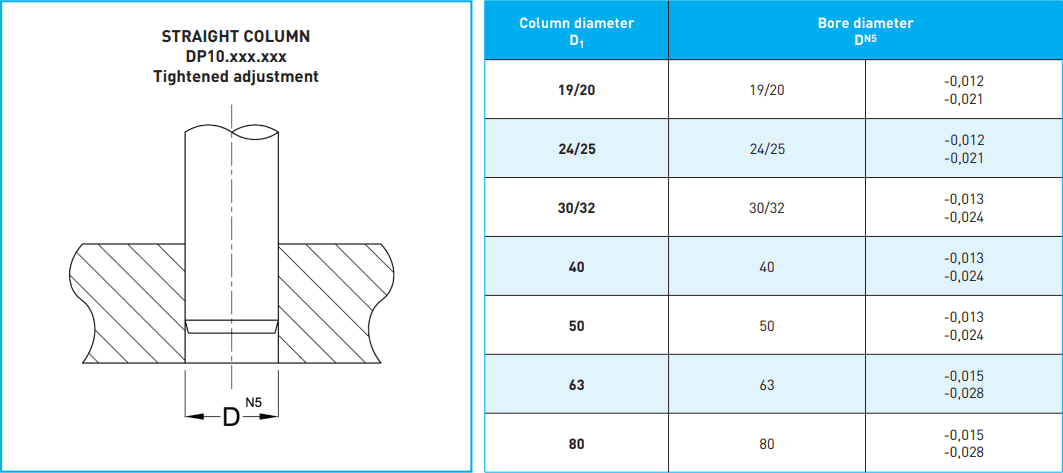

Type of mounting : To be fitted tightly in the plate.
Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.
Treatment : Case hardening and tempering for optimum surface hardness.
Benefits :
- Precise alignment
- Easy maintenance
- High durability
Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.
Conception : Modular design for an easy integration and simplified maintenance.
- Machining
- Grinding
- Treatment
Target application :
Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.
Recommendations for use :
- Mounting : The column is mounted and flanged into the plate using the two snap ring . It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
- Environment : Do not store or use the column in a corrosive environment.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Load control
To order you need to indicate :
- The diameter
- The length
Example : DP10.032.180
Technical data
3D Model

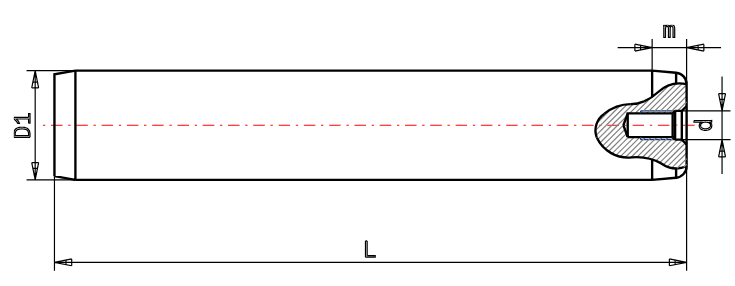

Plan
L : Pillar length
D1 : Pillar diameter
m : Tapered length
d : Thread diameter
![Guide pillar DP10 - DIN 9825 plan](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fguide-pillar-dp10-din-9825-plan.png&w=1920&q=75)
