Guide pillar P10 - ISO 9182

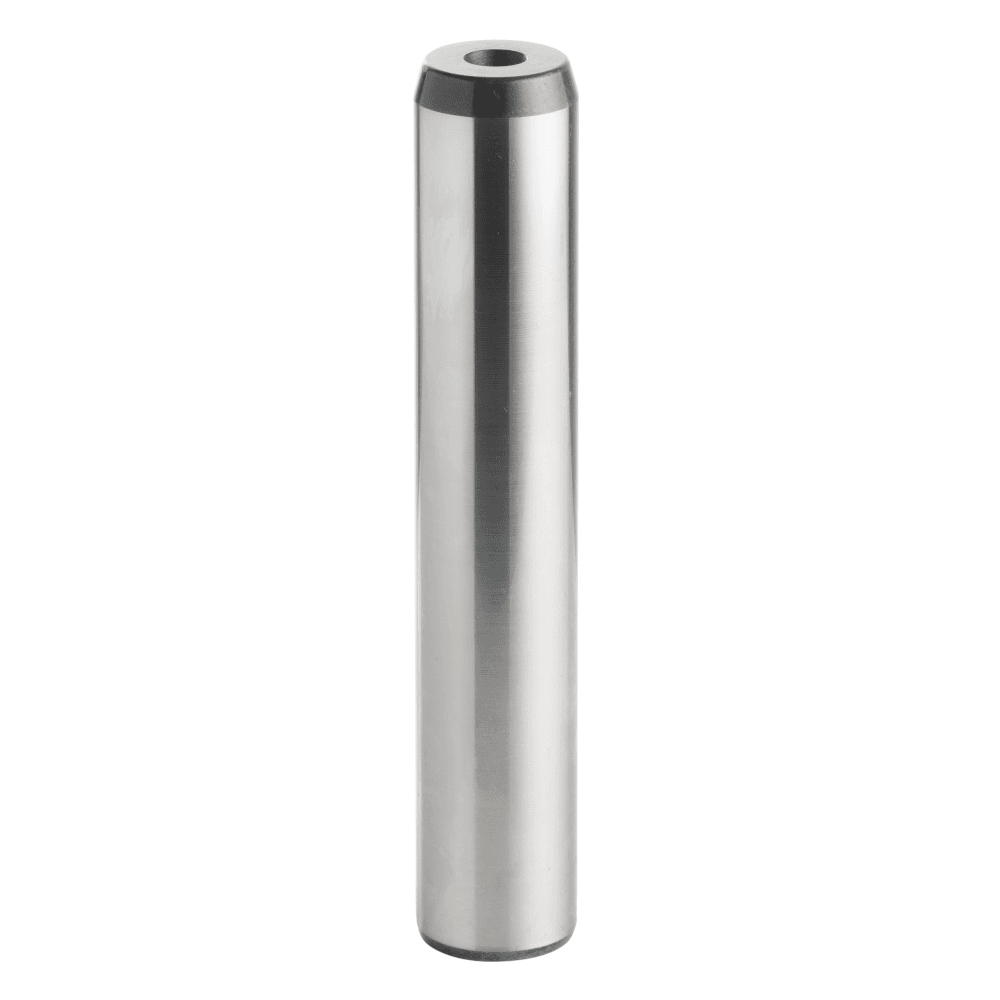

The P10 straight guide column guides cutting tools in a precise and stable position.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fguide-pillar-p10-iso-9182.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Felements-de-guidage.png&w=3840&q=75)
Specifications
Material : 16MnCr5 - Case-hardened
Standard : ISO 9182
Dimensions :
- Diameter : from 19 to 80mm
- Length : from 100 to 500mm

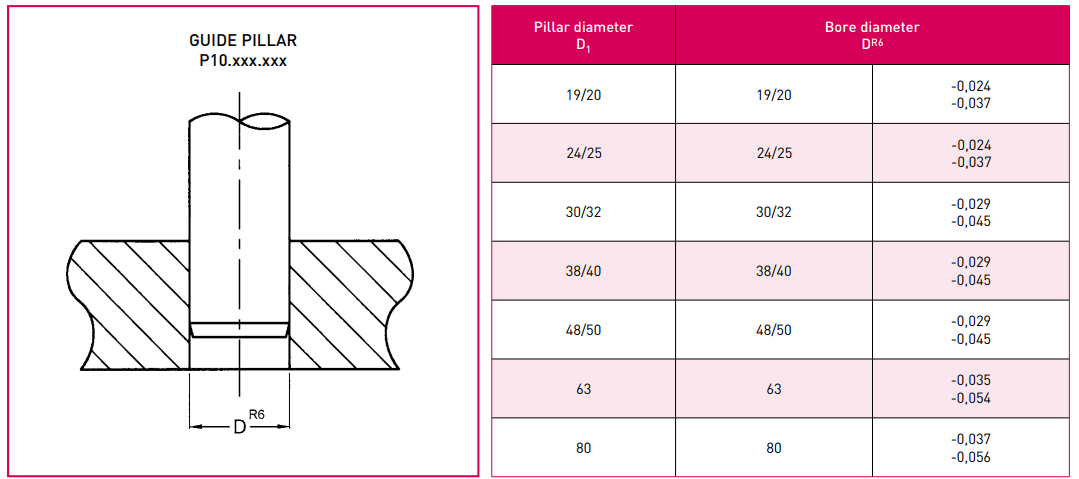

Type of mounting : To be fitted tightly in the plate.
Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.
Treatment : Case hardening and tempering for optimum surface hardness.
Benefits :
- Precise alignment
- Easy maintenance
- High durability
Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.
Conception : Modular design for an easy integration and simplified maintenance.
- Machining
- Grinding
- Treatment
Target application :
Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.
Recommendations for use :
- Mounting : The pillar is fitted tightly into the plate. It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
- Environment : Do not store or use the column in a corrosive environment.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Load control
To order you need to indicate :
- The diameter
- The length
Example : P10.032.180
Technical data
3D Model

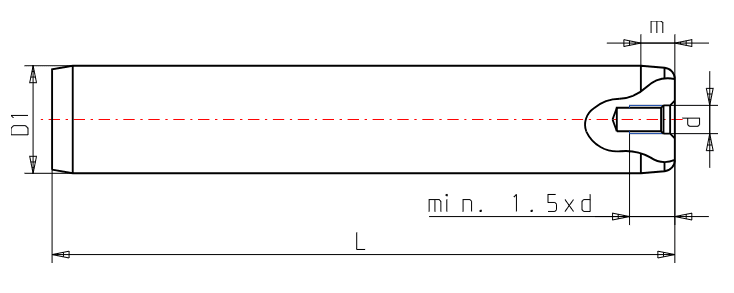

Plan
L : Pillar length
D1 : Pillar diameter
m : Tapered length
d : Thread diameter
![Guide pillar P10 - ISO 9182 PLAN](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fguide-pillar-p10-iso-9182-plan.png&w=1920&q=75)
