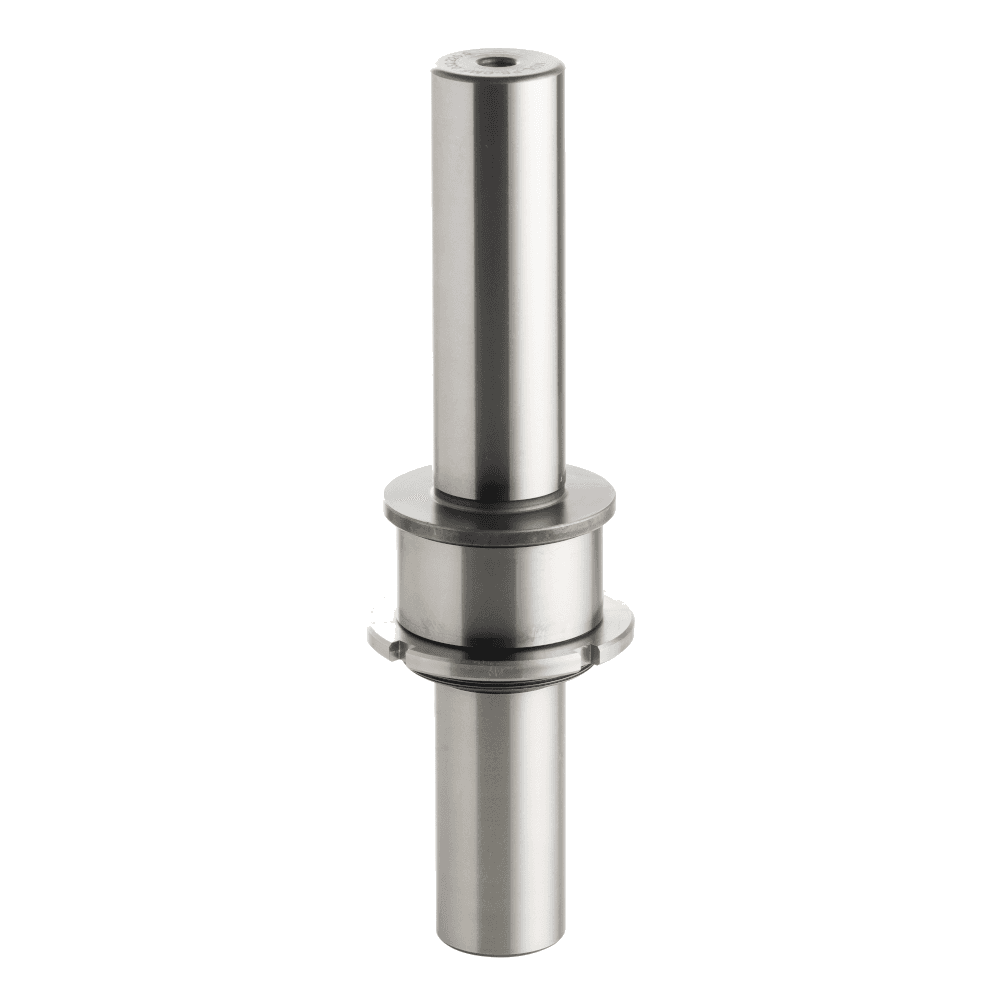

Threaded middle guide pillar CMF
The CMF threaded middle guide pillar guides cutting tools in a precise and stable position.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fcmf-bc9cc161.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Felements-de-guidage.png&w=3840&q=75)
Specifications
Material : 16MnCr5 - Case-hardened
Dimensions :
- Diameter : from 20 to 40mm
- Length : from 140 to 240mm
Type of mounting : Screwed onto the intermediate plate. The fixing screw is supplied with the pillar.
Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.
Treatment : Case hardening and tempering for optimum surface hardness.
Benefits :
- Precise alignment
- Reduced wear and maintenance of press tools
- Suitable for high speed thank to its intermadiate plate mounting
Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.
Conception : Modular design for an easy integration and simplified maintenance.
- Machining
- Grinding
- Treatment
Target application :
Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance..
Recommendations for use :
- Mounting : The column is mounted into the intermediate plate using the screw supplied. The screw is screwed directly to the pillar thread.It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
- Environment : Do not store or use the column in a corrosive environment.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Load control
To order you need to indicate :
- The diameter
- The length
Example : CMF.032.220

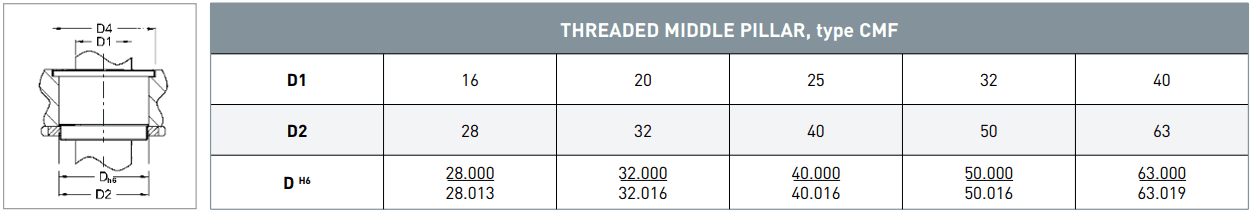

Technical data
3D Model

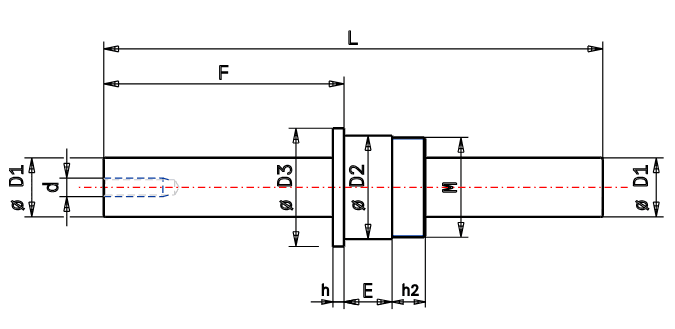

Plan
L : Pillar length
D1 : Pillar diameter
E : Press-fit length
d : Threaded diameter
![CMF plan](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fcmf-f07c928d.png&w=1920&q=75)
