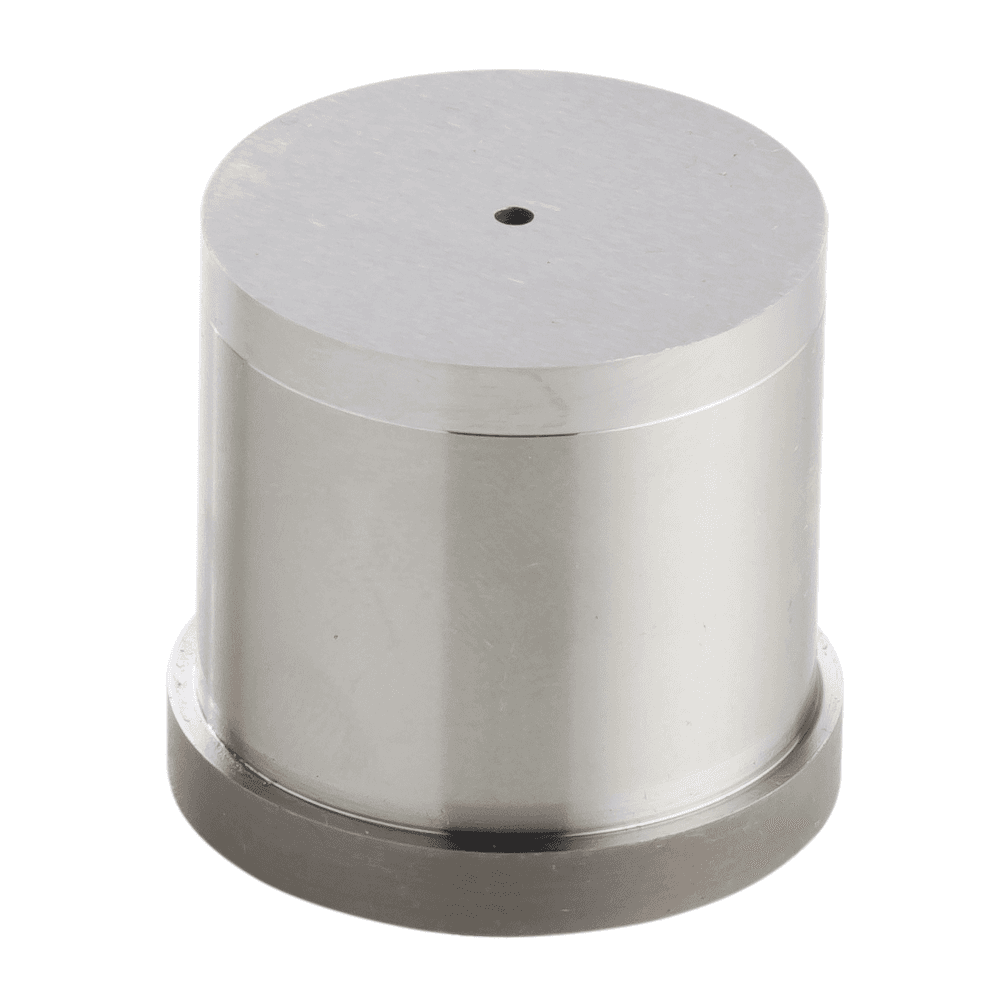

Headed die button with taper relief D_-HM__ / D_-HH__

Material :

• Material A : High-speed steel HWS / 1.2379 / D2 / X155CrVMo12.1
• Matière B : High-speed steel HSS / 1.3343 / M2 / HS 6.5.2 / Z90

Standard : ISO 8977 - NF E63-080

Dimensions :

• Diameter : from 6 to 50mm
• Length : from 20 to 35mm

Type : 5 mm collar die button. Tapered relief.

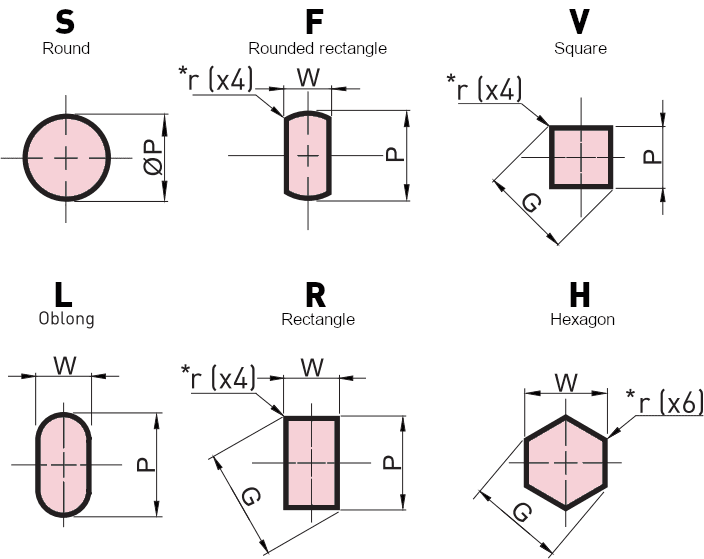

Available shapes : Available as a blank or following our 6 standards catalog shapes. Others shapes can be made as special.

Coating : Standard coating : TIN, Alcrona (AlCrN), TICN, CrN, t-ac.

Other coating on request.

Hardness :

• Material A : 58-62 HRc
• Material B : 60 - 64 HRc

Benefits :

• The collard block axially the die button ensuring very precise positioning.
• All our die button are engraved to your specifications for quick identification.

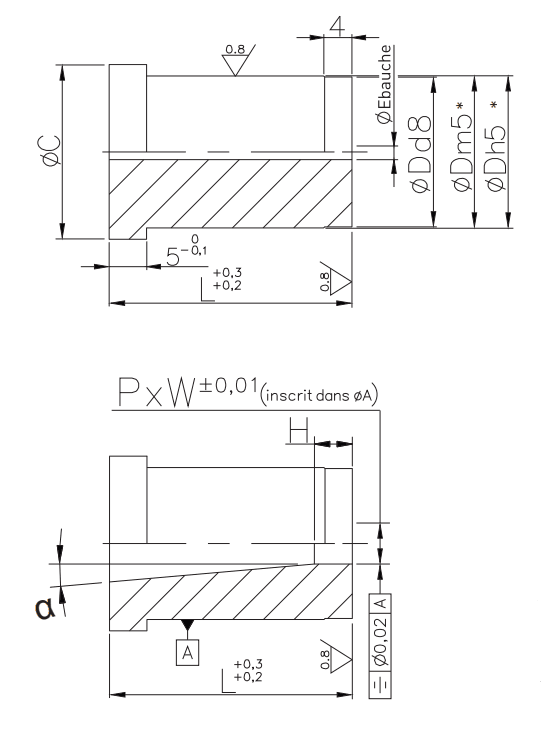

Tolerance :

• D_-HMWB et D_HMD_ : Body tolerance m5
• D_-HHWB et D_HHD_ : Body tolerance h5
• Length tolerance +0,3/+0,2
• Collar thickness tolerance 0/-0,1
• Shape tolerance +/-0,01

Conception : EDM

Target application

Ideal for press tools or injection moulds.

Recommendations for use :

• Mounting : The die button are directly mounted in the bottom plate.
• Cutting clearance : We recommand a cutting clearance between the die button and the punch corresponding to 10% of the thickness of the sheet being cut. (except special applications)

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Checking alignment with the die
• Regular lubrication

To order you need to indicate :

1. The desired dimensions
2. Desired shape (except for blanks)
3. Shape dimensions (except for blanks)
4. The desired coating
5. Shape orientation
6. Standard alterations

Example : DA-HMDL-20-25-5-P8-W5-R2T0
