Low profile key located die button D_-SSWB / D_-SSD_
Low profile key located die button D_-SSWB / D_-SSD_

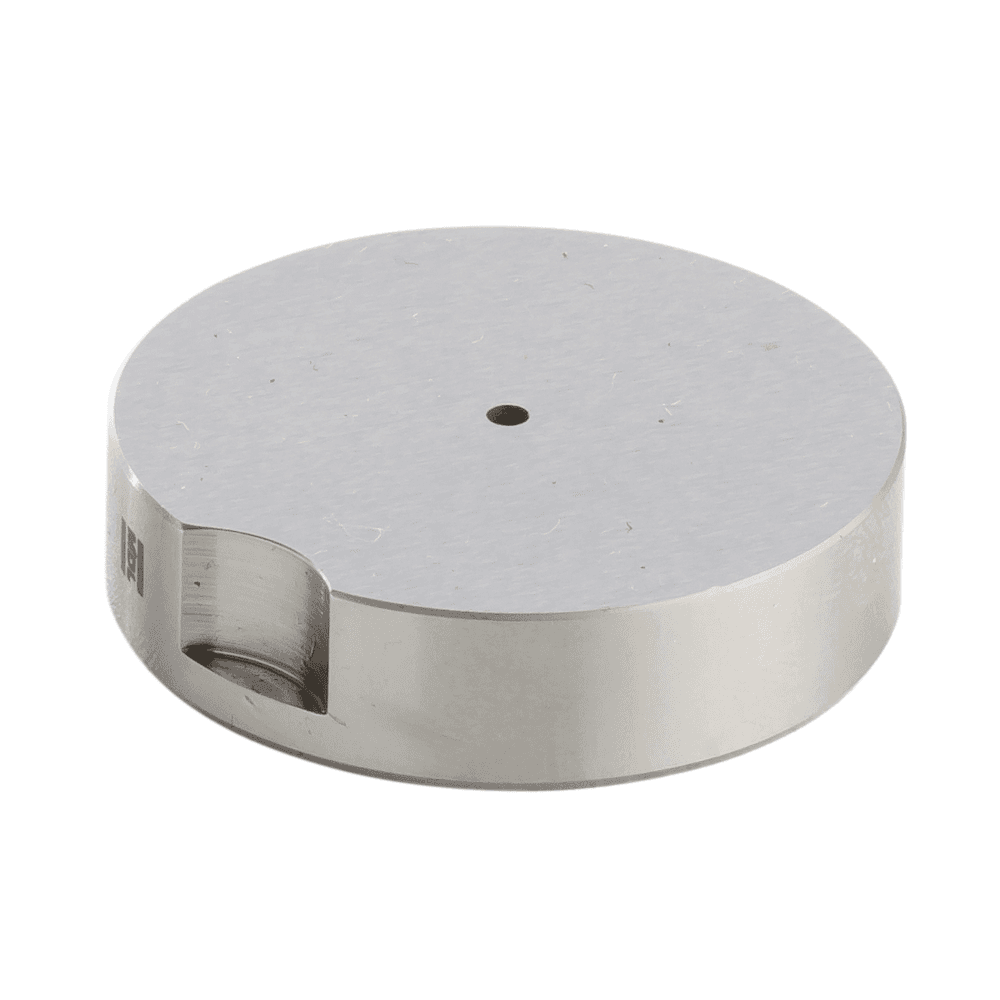

The D_-SSD_ low profile key located die button is clampled to ensures its positioning and the location / orientation. cutting. Low profile key located die button are mounted in a tool to cut, bend or form sheet.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Flow-profile-key-located-die-button-d_-sswb-d_-ssd_.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Fpoincons-et-matrices.png&w=3840&q=75)
Specifications
Material :
- Material A : High-speed steel HWS / 1.2379 / D2 / X155CrVMo12.1
- Material K : XII0CrMoV8-2
Dimensions :
- Diameter : from 13 to 50mm
- Height : from 5 to 10mm
Type : Low profile key located die button
Available shapes : Available as a blank or following our 6 standards catalog shapes. Others shapes can be made as special.
Coating : Standard coating : TIN, Alcrona (AlCrN), TICN, CrN, t-ac.
Other coating on request.
Hardness :
- Material A : 58-62 HRc
- Material K : 61 - 63 HRc
Benefits :
- Small footprint, very useful for certain applications such as cam-controlled punching. The relief is directly on the die retainer.
- Key located die button are clamped and oriented directly by a flange for very precise positioning.
- All our die button are engraved to your specifications for quick identification.
Tolerance :
- Body tolerance h5
- 10 mm height tolerance +0,3/+0,2
- 7 mm orientation tolerance +0,1/+0,2
- Shape tolerance +/-0,01
Conception : EDM
Target application
Ideal for press tools or injection moulds.
Recommendations for use :
- Mounting : The die button are directly mounted in the bottom plate.
- Cutting clearance : We recommand a cutting clearance between the die button and the punch corresponding to 10% of the thickness of the sheet being cut. (except special applications)
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Checking alignment with the die
- Regular lubrication
To order you need to indicate :
- The desired dimensions
- Desired shape (except for blanks)
- Shape dimensions (except for blanks)
- The desired coating
- Shape orientation
- Standard alterations
Example : DA-SSDL-20-10-P8-W5-R2T0
Technical data

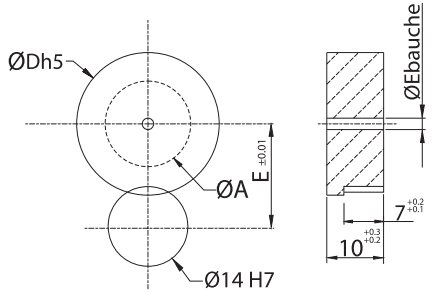

Plan
![Schéma D_-SSWB / D_-SSD_](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fd_-sswb-d_-ssd_.png&w=1080&q=75)
