Low profile reversible die button DA-SRWB / DA-SRD_
Low profile reversible die button DA-SRWB / DA-SRD_

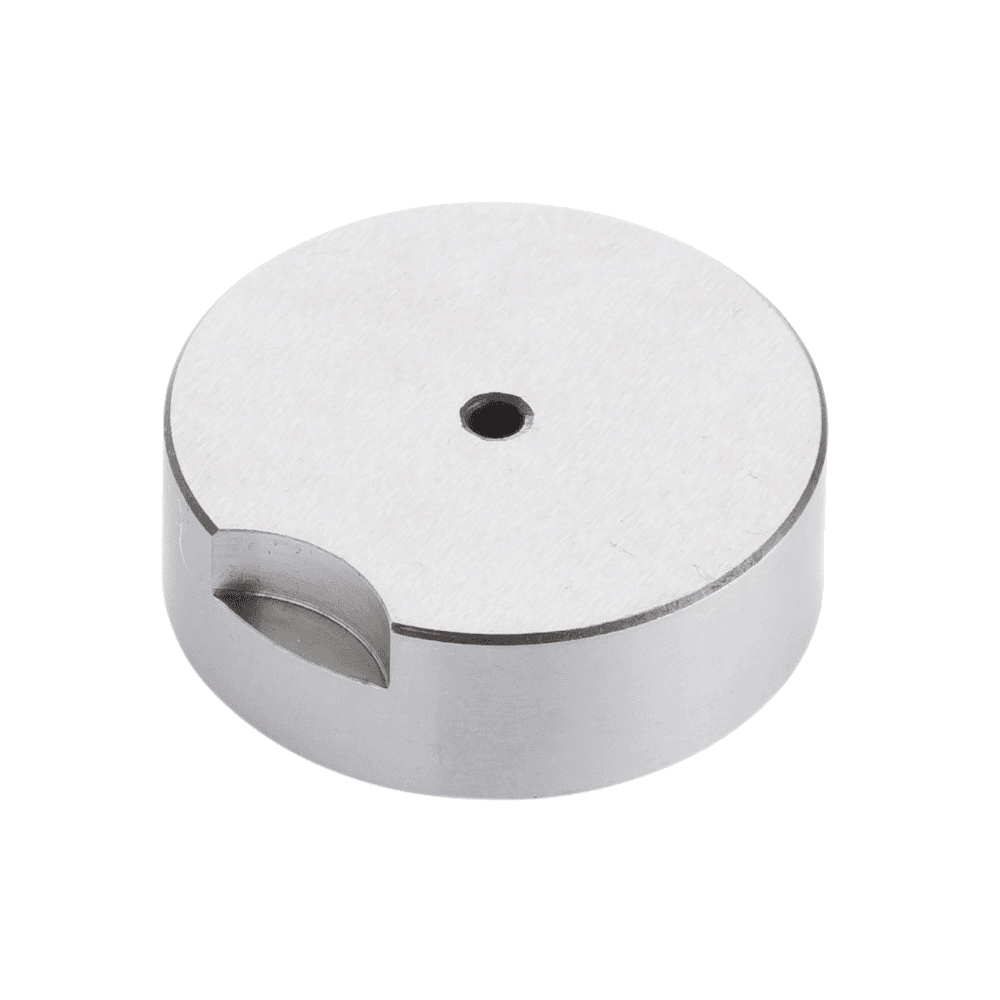

The DA-SRD_ low profile reversible die button is screwed in the tool to ensures its orientation and positioning. Thanks to its double orientation key/notch, the die button is reversible when worn. Low profile reversible die button are mounted in a tool to cut, bend or form sheet.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Flow-profile-reversible-die-button-da-srwb-da-srd_.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Fpoincons-et-matrices.png&w=3840&q=75)
Specifications
Material :
- Material A : Acier rapide HWS / 1.2379 / D2 / X155CrVMo12.1
Dimensions :
- Diameter : from 13 to 50mm
- Height: from 5 to 10mm
Type : Key located low profile
Type : Key located die button. Counterbore relief.
Available shapes : Available as a blank or following our 6 standards catalog shapes. Others shapes can be made as special.
Coating : Standard coating : TIN, Alcrona (AlCrN), TICN, CrN, t-ac.
Other coating on request.
Hardness:
- Material A : 58-62 HRc
Avantages :
- Small footprint, very useful for certain applications such as cam-controlled punching. The relief is directly on the die retainer.
- Extended life time with the dual orientation making it reversible when worn.
- Key located die button are clamped and oriented directly by a flange for very precise positioning.
- All our die button are engraved to your specifications for quick identification.
Tolerance :
- Body tolerance h5
- Height tolerance +0,3/+0,2
- Orientation tolerance 3mm +0,1/+0,05
- Shape tolerance +/-0,01
Conception : EDM
Target application
Ideal for press tools or injection moulds.
Recommendations for use :
- Mounting : The die button are directly mounted in the bottom plate.
- Cutting clearance : We recommand a cutting clearance between the die button and the punch corresponding to 10% of the thickness of the sheet being cut. (except special applications)
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Checking alignment with the die
- Regular lubrication
To order you need to indicate :
- The desired dimensions
- Desired shape (except for blanks)
- Shape dimensions (except for blanks)
- The desired coating
- Shape orientation
- Standard alterations
Example : DA-SRDL-20-5-P8-W5-R2T0
Technical data
3D Model
Plan
Dh5 : Die button diameter h5
H : Height
PxW : Shape dimensions

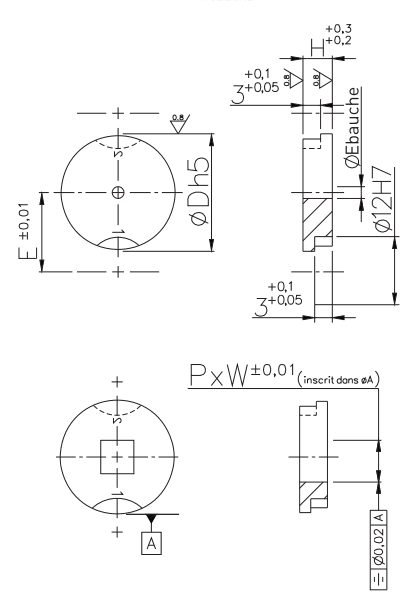

![Low profile reversible die button DA-SRWB DA-SRD_ plan](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Flow-profile-reversible-die-button-da-srwb-da-srd_-plan.png&w=1080&q=75)
