Headed punches DIN PB-PANB / PB-PAN_

Material :

• Material B : High-speed steel HSS / 1.3343 / M2 / HS 6.5.2 / Z90

Standard : ISO 8020 / NF E63-101

Dimensions :

• Diameter : from 4mm to 16mm
• Length : from 71mm to 100mm

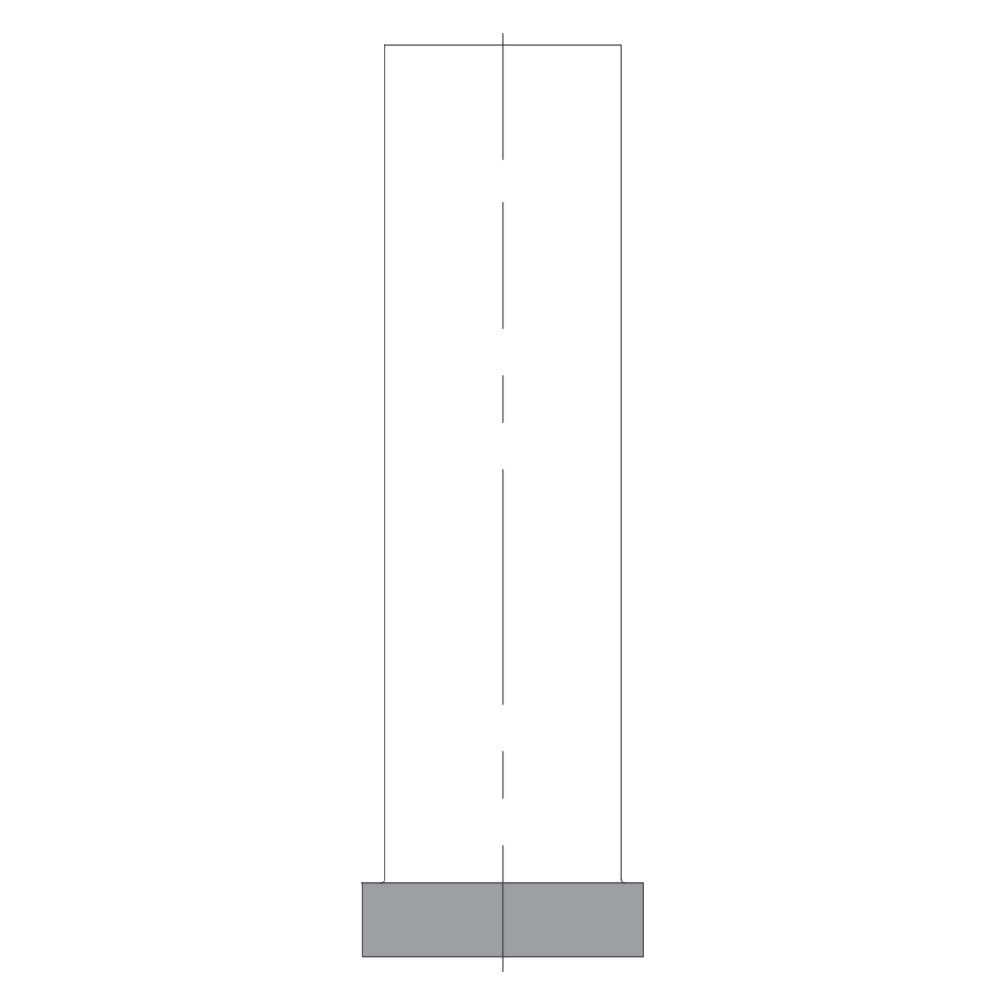

Cylindrical head, 4 to 5mm thick, drilled.

Available shapes : Available as a blank or following our 6 standards catalog shapes. Others shapes can be made as special.

Coating : Standard coating : TIN, Alcrona (AlCrN), TICN, CrN, t-ac.

Other coating on request.

Hardness :

Head 47 -57 HRc

Body 60 - 64 HRc

Benefits :

• Easy to install using the counterbore. The head is chamfered to ensure correct perpendicular alignment with the punch holder.
• Very precize orientation flat.
• Tight tolerance on the head thickness ensuring that the run out is reduced, resulting in less clearance and a greater head stregth.
• All our punches are engraved to your specifications for quick identification.

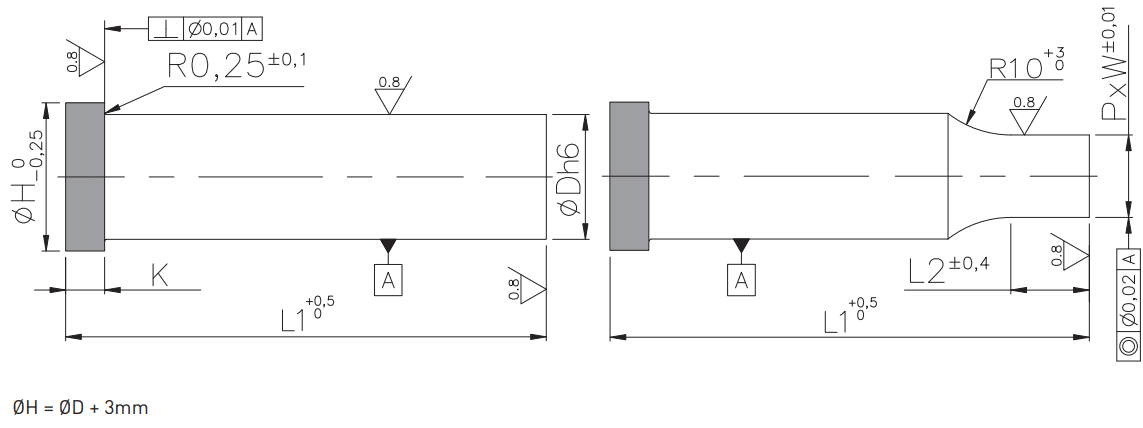

Tolerances :

• Body tolerance h6
• Length tolerance +0,5/0
• Cylindrical head thickness tolerance 0/-0,25
• Shape tolerance ± 0,01

Conception :

• The cylindrical head is hot forged for a better strength and durability.
• The body and shape are grinded with high precision.

Target application

Ideal for press tools or injection moulds.

Recommendations for use :

• Mounting : The headed precision punch is mounted in a punch retainers with counterbore.
• Cutting clearance : We recommand a cutting clearance between the die button and the punch corresponding to 10% of the thickness of the sheet being cut. (except special applications)

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Checking alignment with the die
• Regular lubrication

To order you need to indicate :

1. The desired dimensions
2. Desired shape (except for blanks)
3. Shape dimensions (except for blanks)
4. The desired coating
5. Shape orientation
6. Standard alterations

Example : PB-PANL-16-71-20-P12.5-W8-R2T0-TIN
