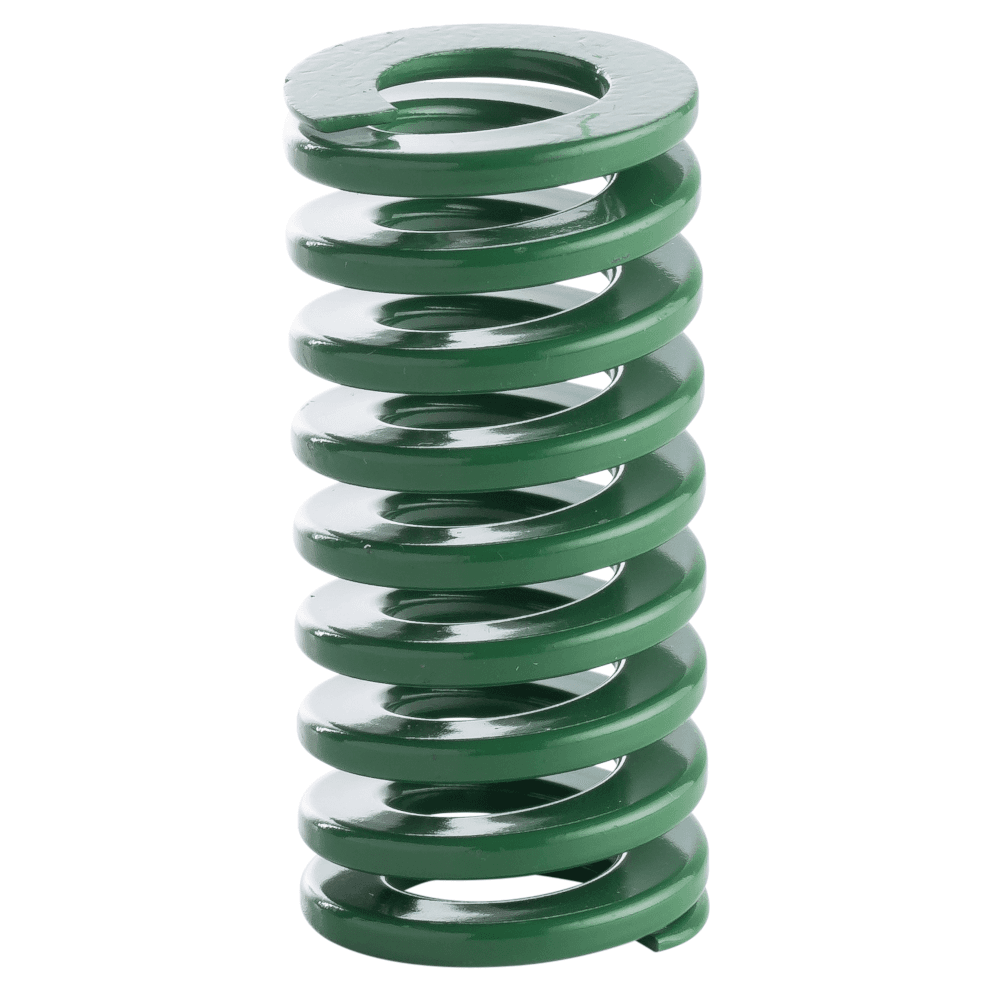

Light load compression springs S11 - ISO 10243 rectangular wire

Material : Chrome Vanadium Silicon steels

Standard : NF ISO 10243

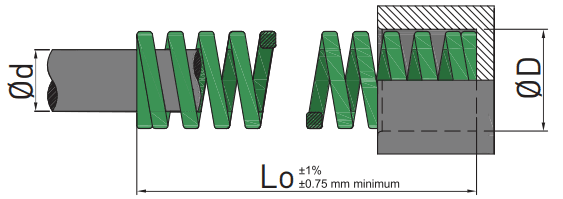

Dimensions :

• Diameter : from 10 to 63mm
• Length from 25 to 305mm

Working load :

Depending on the length and the diameter :

• Recommended working load for long life at 25% of the length : 6,08 DaN to 367 DaN
• Recommended working load for medium life at 30% of the length : 7,36 DaN to 444 DaN
• Maximum working load at 40% of the length : 9,6 DaN to 579 DaN

Lifetime : Up to 2 million press hits depending on use

Preload : 20% of the working load

Operating temperature : -200 °C to +250 °C

Wire diameter : From 2,5mm to 12,5mm

Benefits :

• Easy to install
• Versatile application

Tolerance : ±1% of the length

Conception :

• Winding the wire
• Degassing
• End grinding
• Degreasing
• Painting

Recommendation for use :

Mounting : The spring is individually fitted between the stripper plate and the top plate thanks to retaining screw, guiding shafts or retainer.

Use conditions : Do not exceed the maximum loads to guarantee the lifetime of the springs. The springs have to be preloaded in the tools. When assembling the tool, there is no need to preload them, as in the rest position the stripper plate is not under spring pressure.

To order you need to indicate :

• The diameter
• The lenght

Example : S11.012.032
