Elastomer springs S55 - 90 Shore A - DIN 9835 / ISO 10069

Elastomer springs S55 - 90 Shore A - DIN 9835 / ISO 10069

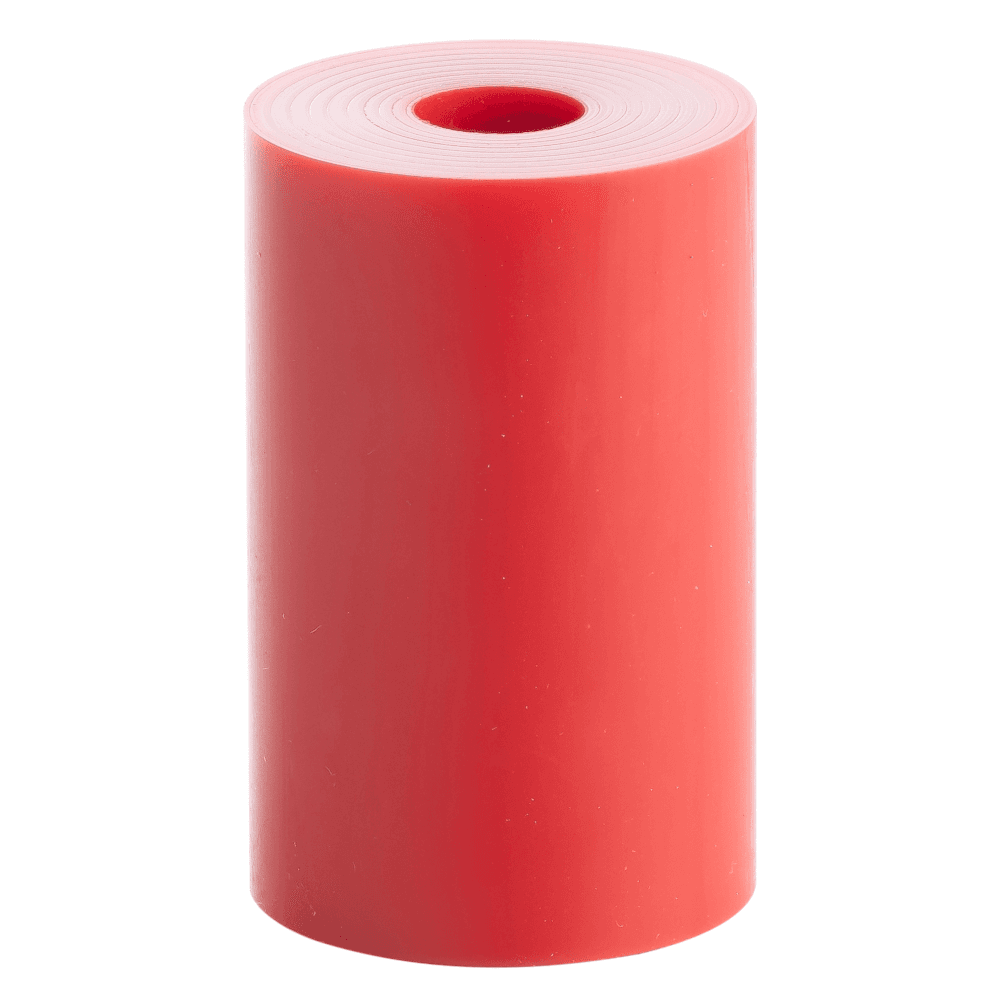

The S55 elastomer springs are use in press tools to hold the sheet during the lowering phase.

Specifications

Material : 90 Shore A - Urelast

Standard : NF ISO 10069 / DIN 9835

Dimensions :

  • Diameter : from 16 to 125mm
  • Length : from 12 to 160mm

Load : From 160 to 15000 daN depending on the diameter and the length

Resistance : Elastomer springs do not break. Very resistant to abrasion

Preload : The preload must be greater than the compression settlement (6-8%)

Maximum compression : 30% of the total length

Modulus of elasticity : 35 N/mm^2 at room temperature

Operating temperature : -20°C to +80°C

Benefits :

  • Easy to install
  • Does not break or generate waste, preventing damage to the tool.
  • Reduced noise
  • Maintenance-free
  • Able to withstand heavy loads

Tolérance :

  • Depending on the diameter ±0,25 to ±1,3mm
  • Depending on the length ±0,4 to ±2mm

Recommendation for use :

Mounting : The spring is individually fitted between the stripper plate and the top plate thanks to shoulder screw or guiding shafts and washers. The elastomer spring expands when compressed, so a sufficiently large housing is required.

Use conditions :The preload is mandatory and ensures immediate force.

Storage : Store out of direct sunlight and in an environment where humidity does not exceed 65%.


To order you need to indicate :

  • The diameter
  • The lenght

Example : S55.032.050

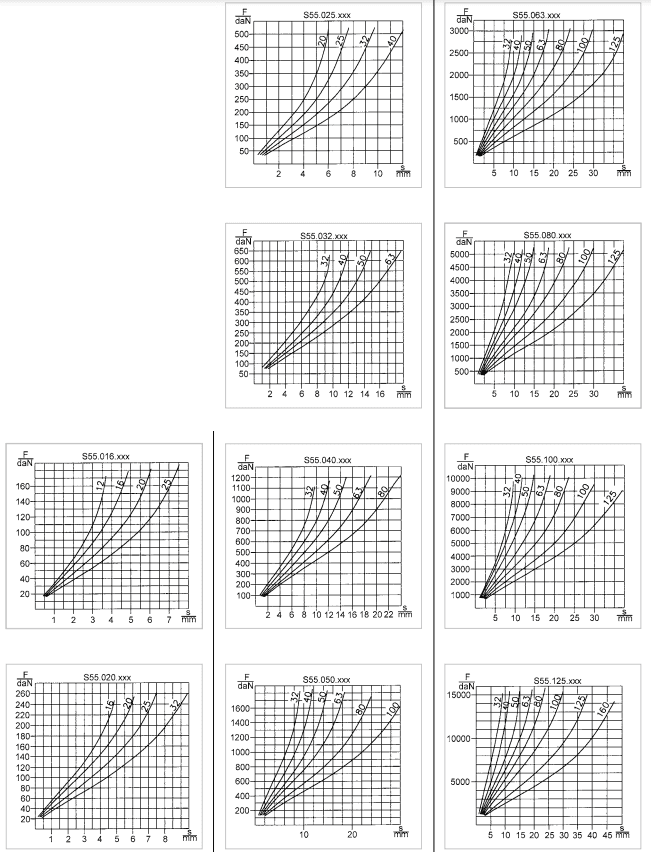

Technical data

3D Model

Plan

d : Internal diameter

D1 : External diameter

D2 : Maximum diameter under compression

Lo : Total length

f : Maximum stroke

Elastomer springs S50 - 70 Shore A - DIN 9835 ISO 10069 plan
