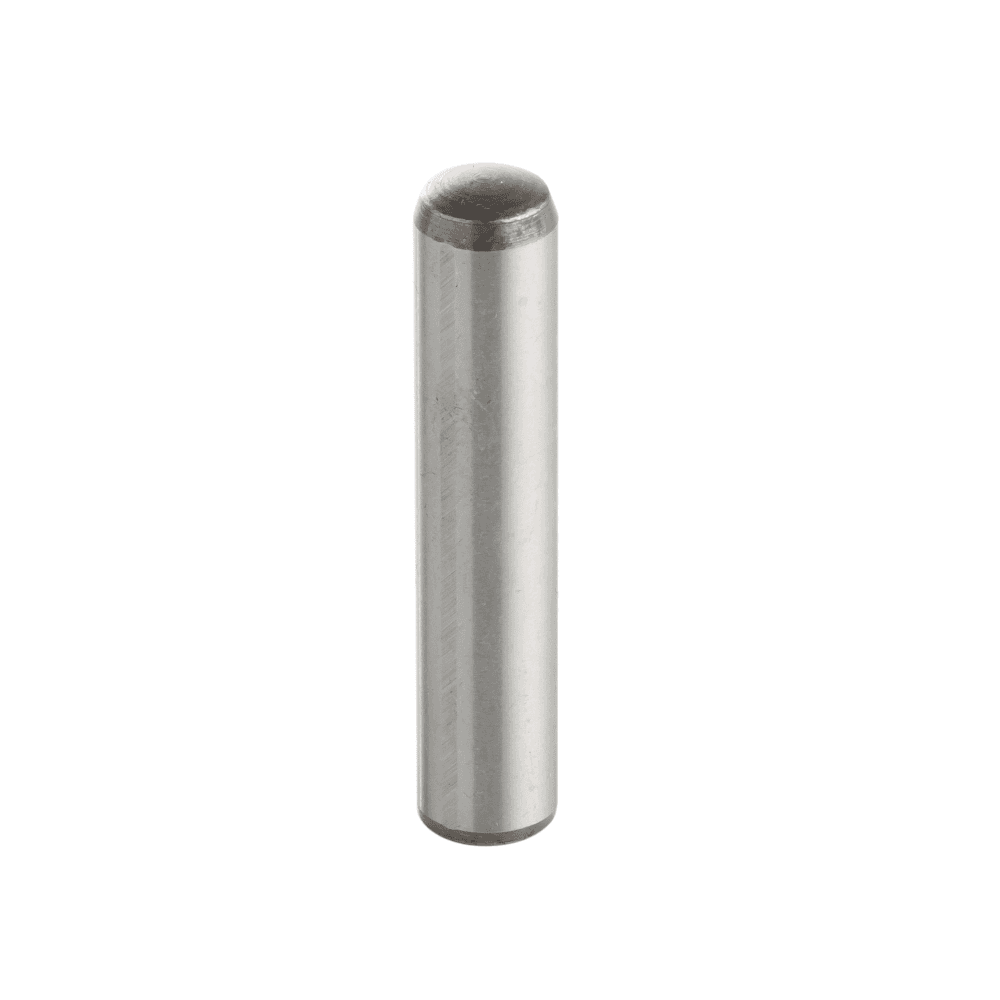

Dowel pins with internal thread A25 - DIN ISO 8733
The A25 dowel pins with internal thread ensure the mechanical assembly position. They are specially adapted to blind holes, allowing fastening by means of tapping.
Specifications
Material : Tools steel
Hardness : 60 ± 2 HRc
Standard : DIN 7979 - AFNOR 27 -475
Dimensions :
- Diameter : 6 to 20mm
- Tapping : M4 to M10
- Length: 10 to 120mm
Benefits :
- Precise alignment and positioning
- Tapping for easy assembly / disassembly in blind holes
- Easy to install
Tolerance:
- External tolerance : m6
Recommendation for use :
Mounted : This extractable dowel pin have to be fitted in a blind hole.
Maintenance recommendation :
Regular checks
To order you need to indicate :
- The diameter
- The lenght
Example : A25.006.050

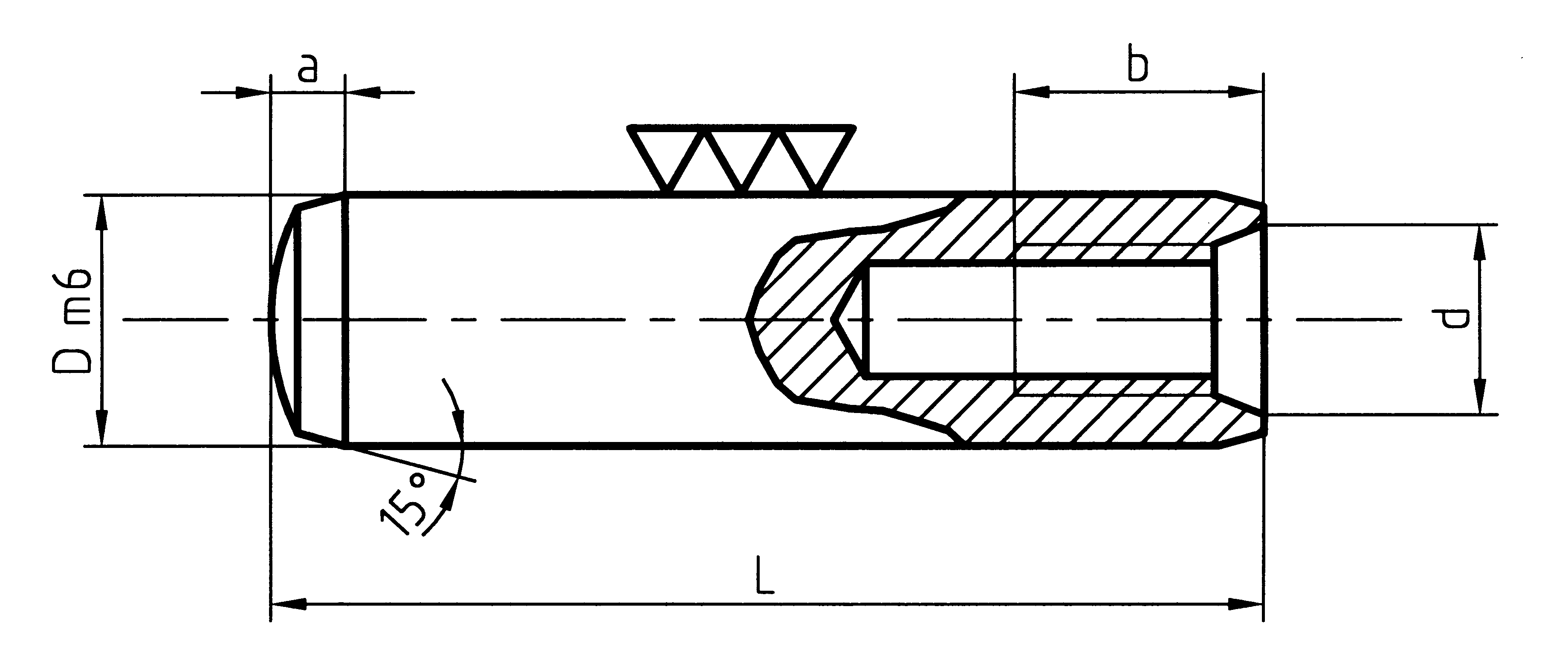

Plan
L : Length
Dm6 : Diameter m6
a : Tapered length
d : Tapping diameter
b : Tapping length
