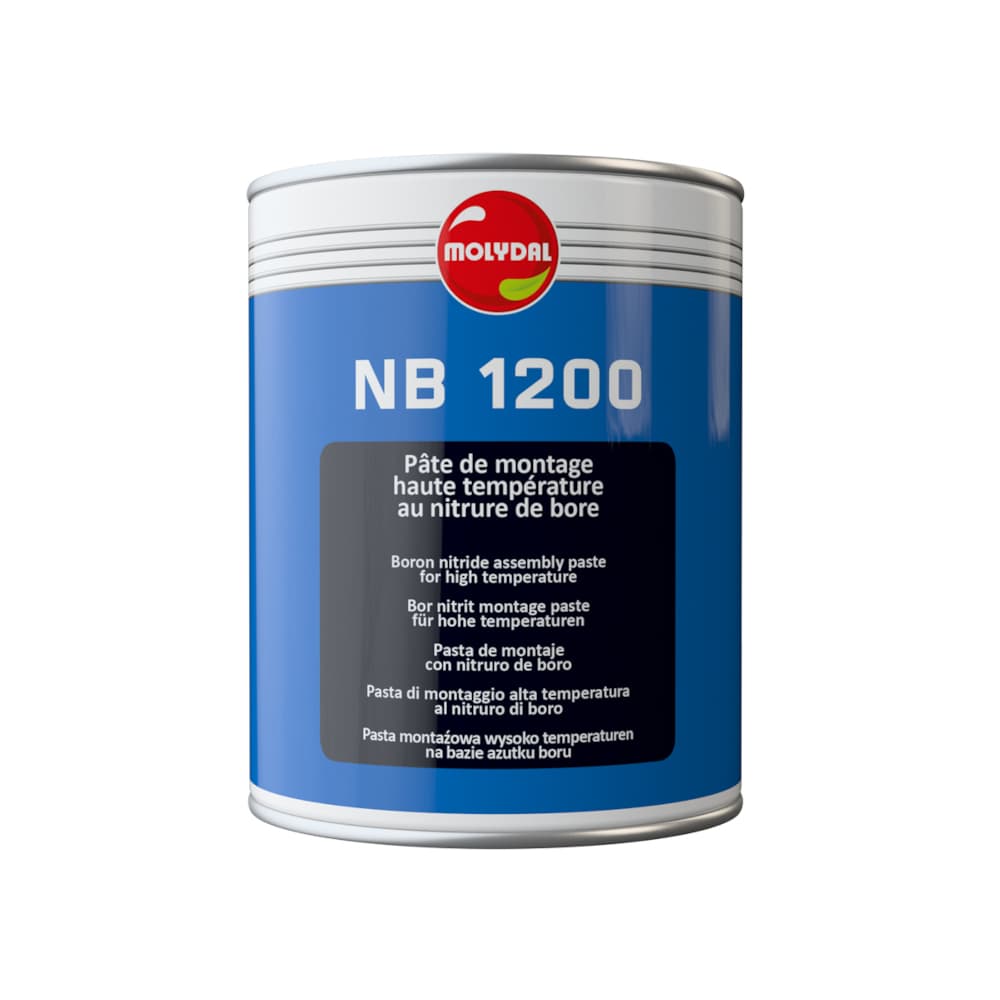

Boron nitride mounting paste NB1200
White paste that provides ‘clean’ lubrication for mechanical parts and heavily loaded mechanisms operating at low speeds. Ideal for press tools with slow striking speeds to ensure long-term operation. For use in extreme temperatures. Excellent anti-friction properties. Reduces contact corrosion.
Specifications
CHARACTERISTICS
- Color: White
- Solid lubricant: Boron nitride
- NLGI grade: 1/2
- Oil type: Mineral
- Base oil viscosity at 40°C: 70 Cst (ISO 3104)
- Soap type: Lithium • Drop point: ISO 2176 > 190°C
- Unworked penetration at 25°C: 285–315 1/10mm (ISO 2137)
- Density at 20°C: 0.87 (ISO 2811-1)
- Grease lubrication: -20°C to +160°C
- Dry lubrication: Up to 1200°C
- Copper blade corrosion: 1 a (ISO 2160)
Classification according to DIN 518-25: KF 1/2 P-20
Classification according to ISO 6743-9: ISO-L-XBEDA 2
USES
Plastic injection molding: Lubrication of columns and mold ejectors. Metalworking: Lubrication of columns and moving parts of cutting tools. Assembly of bolts and screws subjected to extreme conditions in order to facilitate disassembly. Assembly of steam joints, gland seals, valve stems and seals, and various assemblies Assembly of mechanical components operating at high temperatures
Packaging
- 1L box
To order, simply indicate the following from the catalog:
The reference number
Example: NB1200
