Retaining screw with calibrated tube A15

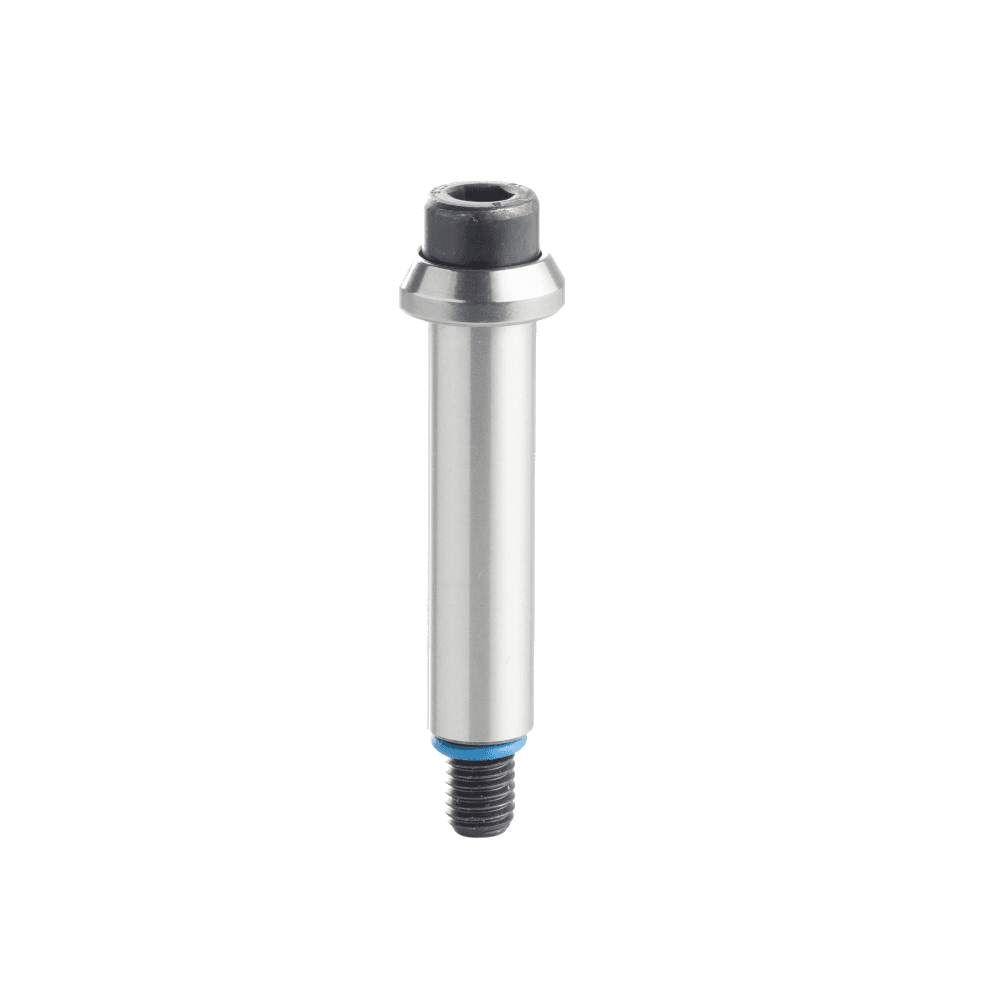

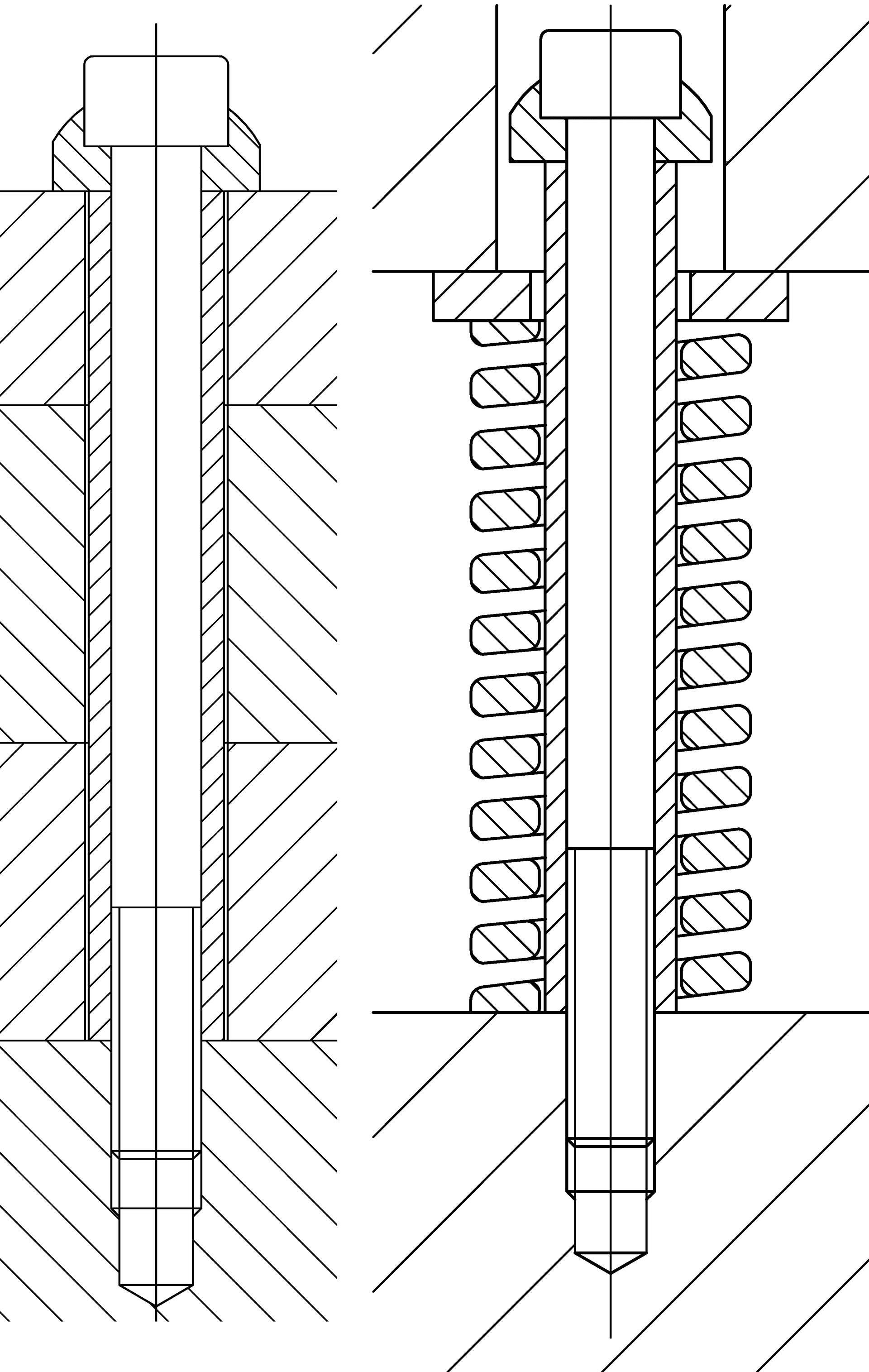

The A15 retaining screw with calibrated tube for fixing and mechanically retaining a wide range of components. In press tooling, it is used in particular for the mounting of compression springs as guides or stops.
Specifications
Material : Treated steel
Resistance : 100 Kg/mm²
Dimensions :
- Diameter : M6 to M16
- Length : 20 to 120mm
Benefits:
- High tensile strength
- Shoulder and retaining tube to ensure correct positioning of the assembly.
- Can be used as a spacer or adjustable stop.
Tolerance :
- External tolerance : h7
- Length tolerance : +0.1mm
Recommendation for use :
Mounting : To be tighten with a suitable sized hexagonal key without forcing.
Maintenance recommendation :
Regular tightening checks
To order you need to indicate :
- The diameter
- The lenght
Example : A15.012.070
Technical data

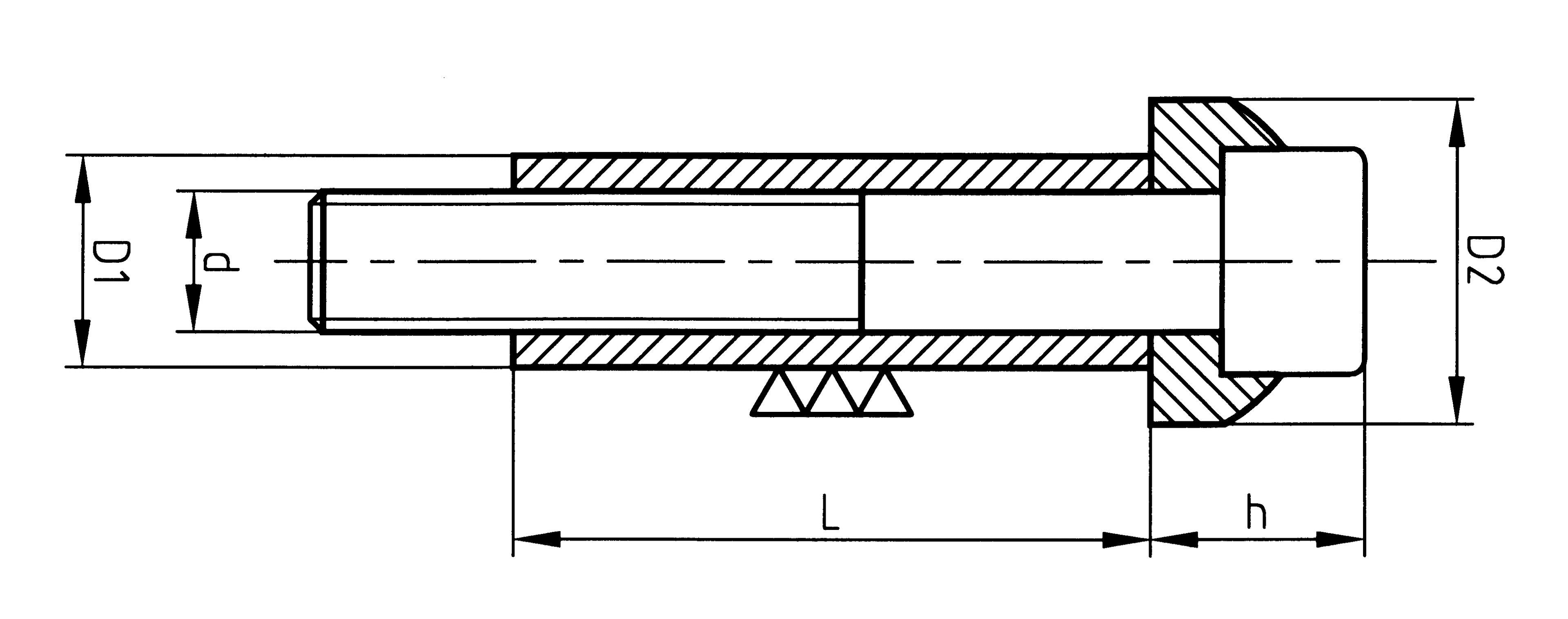

Plan
L : Body length
H : Shoulder length
D2 : Diameter of calibrated tube head
d : Screw diameter
D1 : Diameter of calibrated tube body
