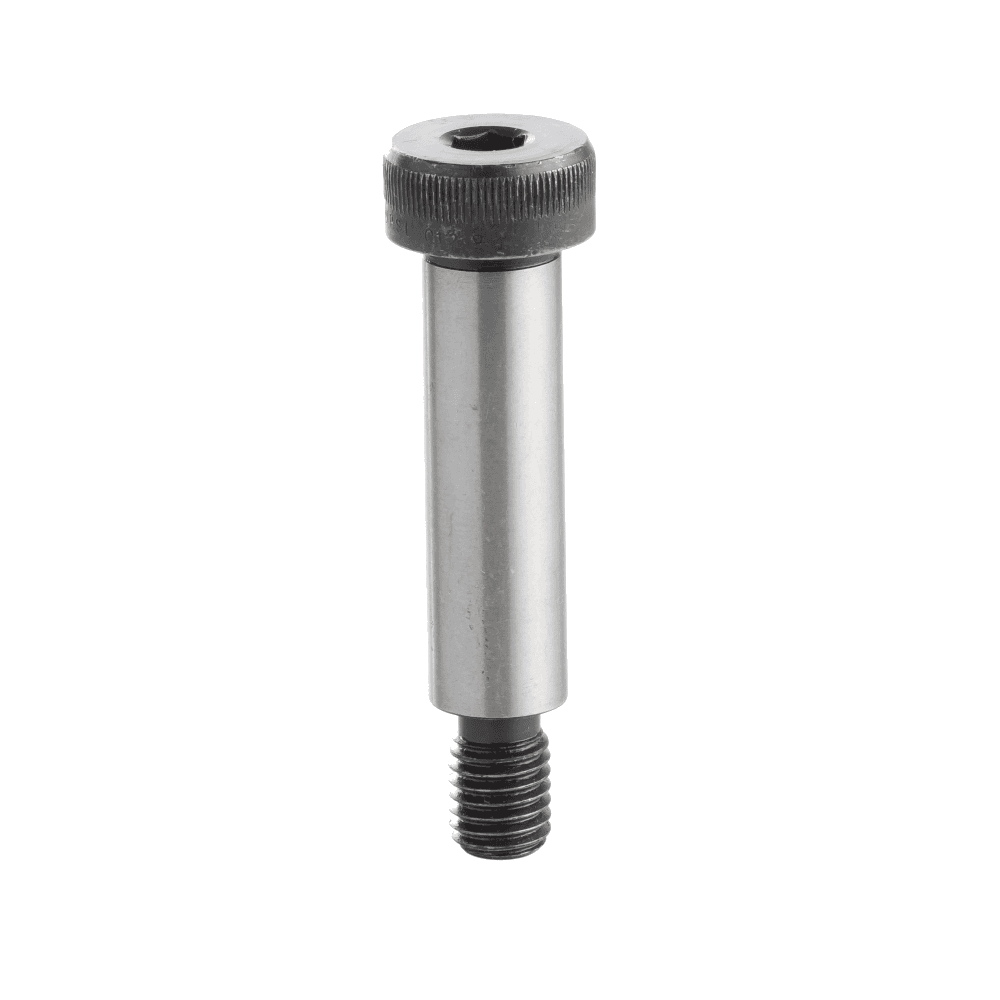

Shoulder screw with hexagon socket head CHC A17 - ISO 7379
The A17 shoulder screw with hexagon socket head CHC / stripper bolt is used for the precise fixing and aligment of mechanical components. For specific applications, the screws can be used as pins or pivot.
Specifications
Material : Treated steel
Norme : ISO 7379
Resistance : 1200 N/mm²
Dimensions :
- Diameter M5 to M20
- Length : 10 à 120mm
Benefits :
- Precise alignment
- Can be used as spacer
- The shoulder provides a flat surface for rotational movements.
Tolerance :
- Body tolerance : h8
Recommendation for use :
Mounting : To be tighten with a suitable sized hexagonal key without forcing. Be sure that the shoulder is correctly positioned.
Maintenance recommendation :
Regular tightening checks
To order you need to indicate :
- The diameter
- The lenght
Example : A17.012.070
Technical data
Plan
L : Shoulder length
L2 : Length under shoulder
K: Head thickness
d2 : Shoulder diameter
d3 : Head diameter
d1 : Thread diameter
