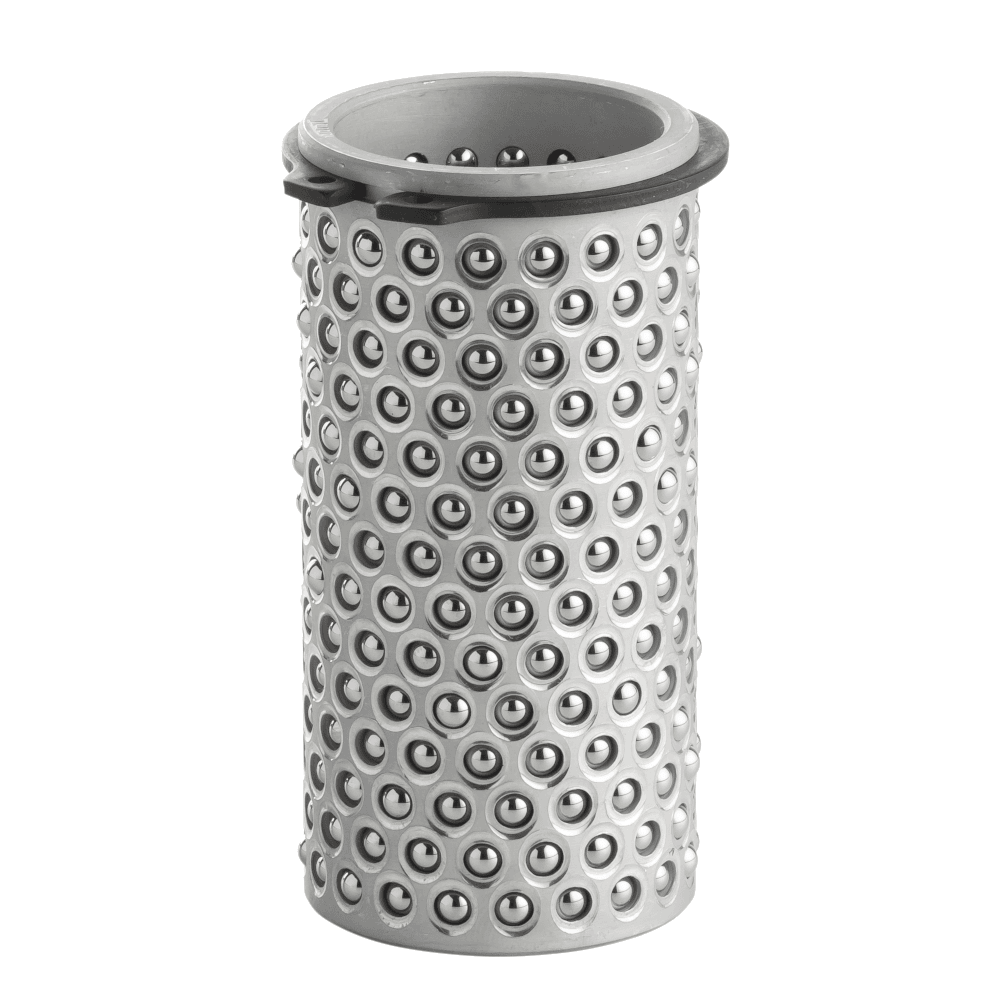

Ball bearing cages Type 3 DC13 - DIN 5401
The DC13 ball bearing cage is designed to be used in the stripper / intermediate plate or bottom plate of the tool.The ball cage remains pre-compressed throughout the working stroke by the contact with the guide bushe and the guide pillar.
Specifications
Material : Sand-blasted aluminium cage - Chrome-plated steel for the balls
Standard : DIN 5401
Dimensions :
- Diameter: from 19 to 80mm
- Length: from 32 to 240mm
Type of mounting : External retaining circlips
Working speed : Over 45m/min
Preload : Between 0,005 and 0,018mm depending on the associated guide pillars and guide bushes diameter
Benefits :
- Very light, reducing the displacement effect of the ball cage
- Very high working speed
- High ball density for excellent stability
Conception :
- High-quality seamless extruded aluminium tube
- Grade 10 chrome steel balls for optimum precision
- Optimised ball geometry and positioning to maximise tool stroke.
- Full ball crimping to improve ball retention and reduce radial play
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Load control
To order you need to indicate :
- The diameter
- The lenght
Example : DC13.032.050
3D Model

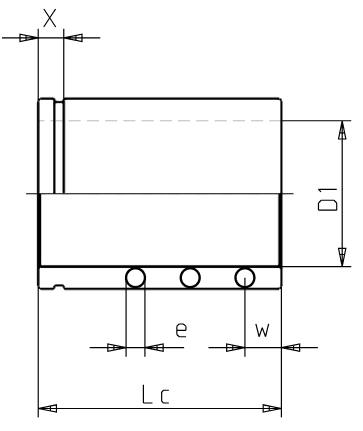

Plan
D1 : Pillar diameter
LC : Ball cage length
E: Ball diameter
X : Distance from circlip to bottom of cage
