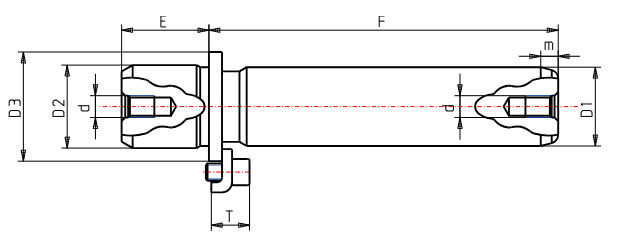

Demountable guide pillar with mounting clamps P21 - ISO 9182

Material : 16MnCr5 - Case-hardened

Standard : ISO 9182

Dimensions :

• Diameter : from 19 to 80mm
• Length : from 100 to 460mm
• Guide length : from 80 to 400mm

Type of mounting : Clamps and screws fixing supplied with the column.

The Easyfit system facilitate the pillar mounting in the bore making it quicker to adjust and install

Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.

Treatment : Case hardening and tempering for optimum surface hardness.

Benefits :

• Precise alignment
• Easy maintenance
• High durability
• Clamps and screws fastening make the assembly disassembly easy.

Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding
• Treatment

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendations for use :

• Mounting : The column is fitted using the clamps and screws directly in the tool plate. It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
• Environment : Do not store or use the column in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The guiding length

Example : P21.032.180

AMDL Scop SA is a leading manufacturer, of standard parts for die sets making, marketed under the registered trademarks MDL and Porter Besson.

The guide pillars are used with guide bushes and ball cages to design guide systems for die sets
