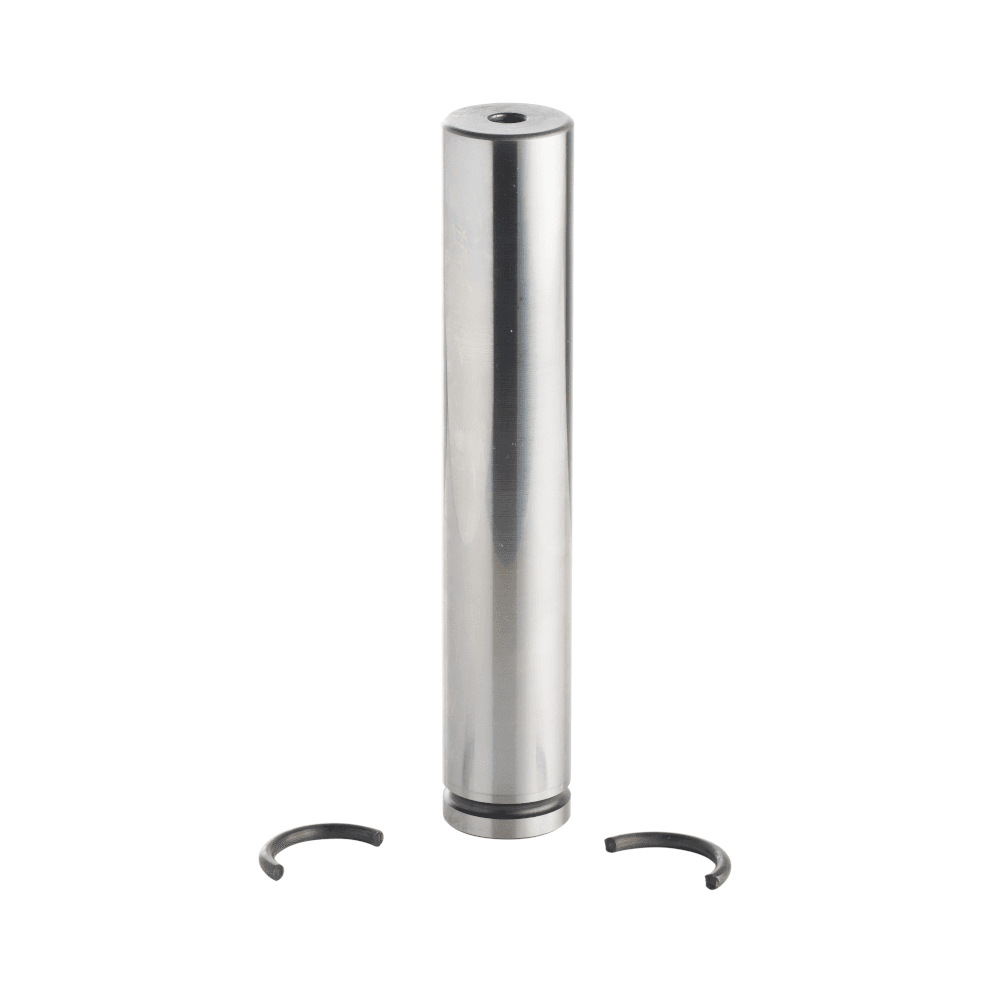

Guide pillar BA - NF E63-120/121

Material : 16MnCr5

Standard : NF E63-120/121

Dimensions :

• Diameter : from 12 to 100mm
• Length : from 100 to 500mm

Type of mounting : Clamped with two snap-ring supplied with the column.

Hardness : 60 to 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.

Benefits :

• Precise alignment
• Easy maintenance
• High durability

Available in 3 tolerance classes represented by a color code (white, blue and yellow). This allows precise matching with the guide bushes tailored to the need.

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding
• Treatment

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendations for use :

• Mounting : The column is mounted and flanged into the plate using the two snap ring . It is important to ensure that the pillar is correctly fitted to guarantee the parralelism with the guide bushe and preventing preventing premature wear.
• Environment : Do not store or use the column in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The length

Example : BA.032.180

AMDL Scop SA is a leading manufacturer, of standard parts for die sets making, marketed under the registered trademarks MDL and Porter Besson.

The guide pillars are used with guide bushes and ball cages to design guide systems for die sets
