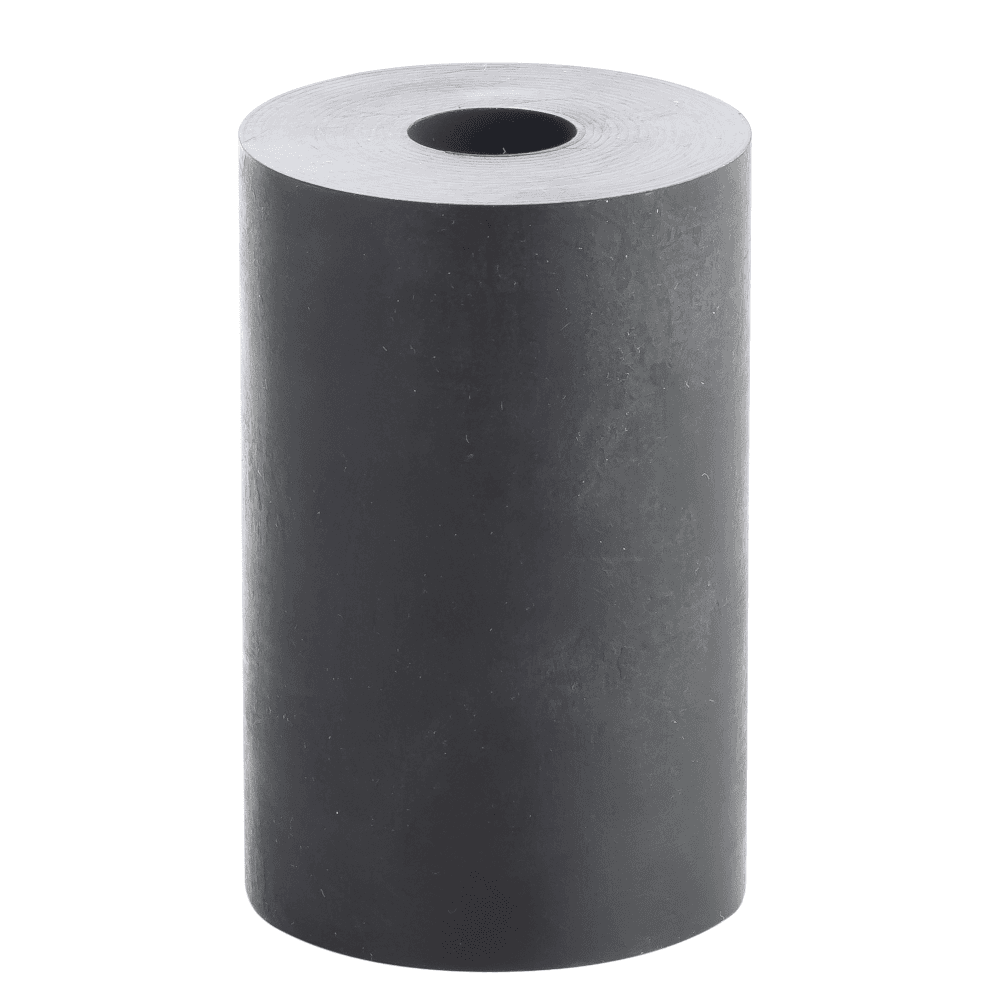

Elastomer springs S50 - 70 Shore A - DIN 9835 / ISO 10069

Material : 70 Shore A - Urelast

Standard : NF ISO 10069 / DIN 9835

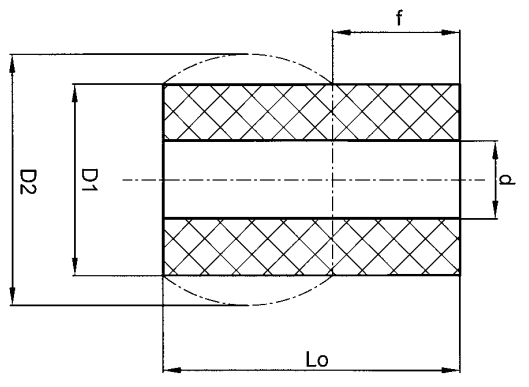

Dimensions :

• Diameter : from 16 to 125mm
• Length : from 12 to 160mm

Load : From 45 to 6000 daN depending on the diameter and the length

Resistance : Elastomer springs do not break. Very resistant to abrasion

Preload : The preload must be greater than the compression settlement (3-5%)

Maximum compression : 40% of the total length

Modulus of elasticity : 12 N/mm^2 at room temperature

Operating temperature : -20°C to +80°C

Benefits :

• Easy to install
• Does not break or generate waste, preventing damage to the tool.
• Reduced noise
• Maintenance-free
• Able to withstand heavy loads

Tolérance :

• Depending on the diameter ±0,25 to ±1,3mm
• Depending on the length ±0,4 to ±2mm

Recommendation for use :

Mounting : The spring is individually fitted between the stripper plate and the top plate thanks to shoulder screw or guiding shafts and washers. The elastomer spring expands when compressed, so a sufficiently large housing is required.

Use conditions :The preload is mandatory and ensures immediate force.

Storage : Store out of direct sunlight and in an environment where humidity does not exceed 65%.

To order you need to indicate :

• The diameter
• The lenght

Example : S50.032.050
