Straight sleeve ball bearing bushes B30 - ISO 9448

Material: 16MnCr5 - Case-hardened

Standard : ISO 9448

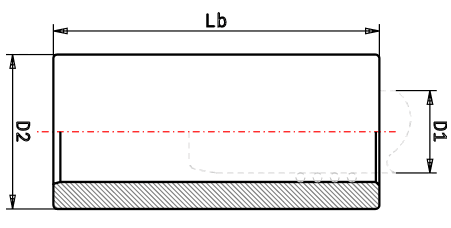

Dimensions :

• Diameter : from 24 to 80mm
• Length : from 65 to 265mm

Working speed : over 45m/min

Type of mounting : The bushes are glued directly into the tool plate.You should not tight fitting the bushes as there is a risk that the internal diameter and thereby changing the balls preload.

Hardness : 60 à 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.

Treatment : Vacuum degassed alloy steel

Type of lubrification : No lubrication, ball bearing guides

Benefits :

• Ball bearing guiding system allow very high speed work and is extremely precise. This type of guide is particularly interesting for thin sheet applications.

Available in 3 tolerance classes for precise matching with the guide bushes according to the need.

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding / honing

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendation for use :

• Mounting : The straight sleeve bushes are glued into the plate

1.Degrease with acetone or a similar solvant and thoroughly wipe clean

the outer surface of the straight sleeve bush and the inside of the plate bore.

2. Apply a thin layer of Loctite 601 glue to both surfaces.

3. Insert the bush into the hole while turning.

4. Leave to set for the required amount of time (e.g. 4 hours at 22°C)

• Do not exceed working speed. Compliance with working speeds ensures the integrity of the tool and bushe.
• Environment : Do not store or use the bushe in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The lenght

Example : B30.032.080

These standardized guide bushes, from the MDL brand, come from the MDL components program, for the design of guide systems, to be integrated during the design, of die sets and press tools.

These guide bushes are designed and manufactured by the company AMDL, which owns the registered trademarks MDL and Porter Besson, and distributes these MDL components and Porter Besson components throughout the world, from its logistics center located in Issenheim.

AMDL Scop SA is a leading manufacturer, of standard parts for die sets making, marketed under the registered trademarks MDL and Porter Besson.

The guide bushes are used with guide pillars and ball cages to design guide systems for die sets

Standards parts for die making MDL are in stock at AMDL Scop SA, included guiding elements MDL, guide bushes MDL, guide pillars MDL, ball bearing cages MDL and all accessories necessary to design a guide system for press tools.
