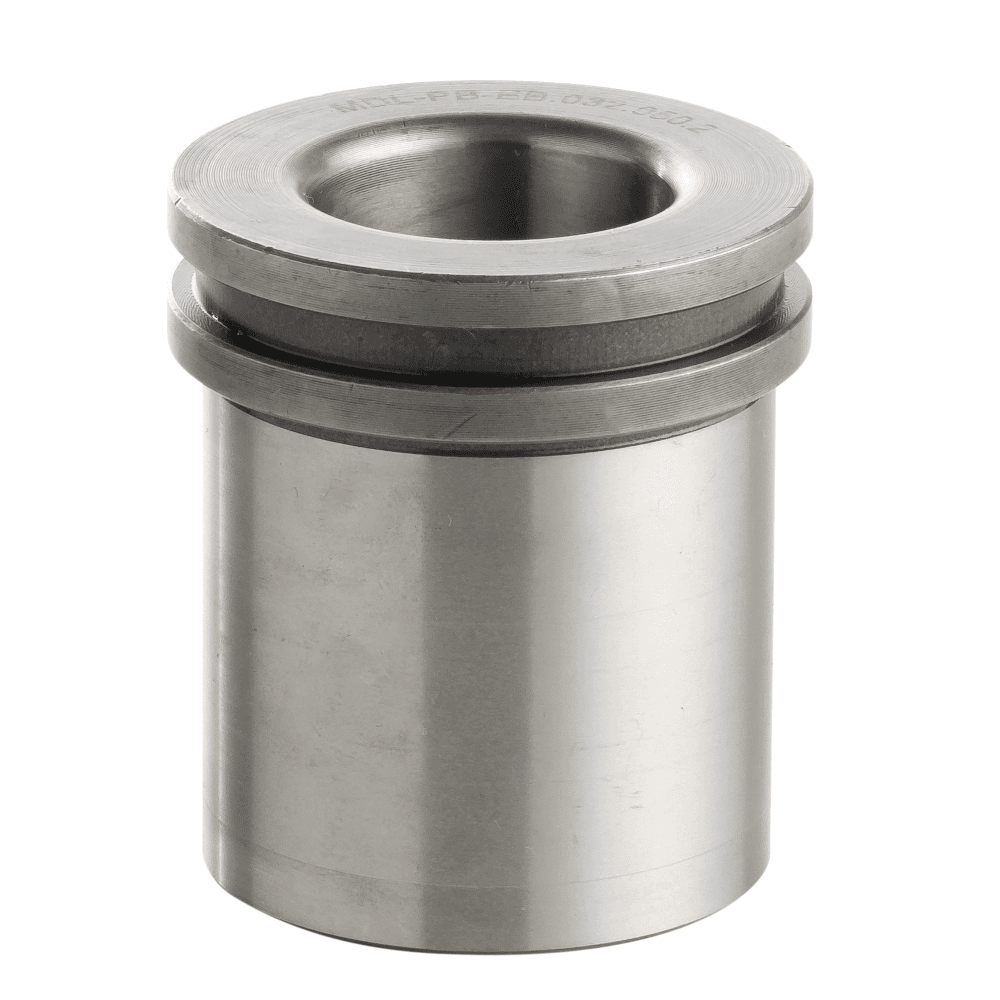

Guide bushes EB for conical column - NF E63-120/121

Material: 16MnCr5 - Case-hardened

Standard : NF E63-120/121

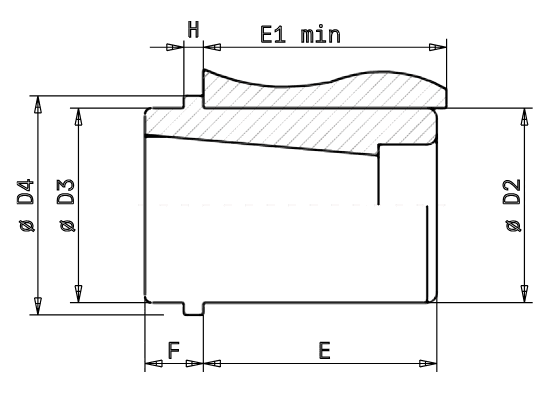

Dimensions :

• Diameter : from 12 to 100mm
• Length : from 33 to 143mm

Available in 3 cone lengths. The bushe must have the same cone length as the CA column.

Working speed : 0 to 15m/min

Up to 100 strokes per minute

Type of mounting : Clamps and screws fixing supplied with the bushe.

Hardness : 60 à 64 HRC for maximum wear resistance and durability. Designed for prolonged use thanks to its robust construction and high hardness.

Treatment : Case hardening and tempering for optimum surface hardness.

Benefits :

• Good resistance to lateral forces
• Can be used with thick sheet
• The conical part fit with the column CA , preventing damage and making assembly and disassembly easier

Available in 3 tolerance classes for precise matching with the guide bushes according to the need.

Conception : Modular design for an easy integration and simplified maintenance.

• Machining
• Grinding / honing

Target application :

Ideal for press tools, injection moulds or any other assembly requiring precise, reliable guidance.

Recommendation for use :

• Mounting : The bushe is fitted using the fixing clamps directly in the tool plate.
• Do not exceed working speed. Compliance with working speeds ensures the integrity of the tool and bushe.
• Environment : Do not store or use the bushe in a corrosive environment.

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Load control

To order you need to indicate :

• The diameter
• The lenght
• The conical length

Example : EB.050.080.3

These standardized guide bushes, from the MDL brand, come from the MDL components program, for the design of guide systems, to be integrated during the design, of die sets and press tools.

These guide bushes are designed and manufactured by the company AMDL, which owns the registered trademarks MDL and Porter Besson, and distributes these MDL components and Porter Besson components throughout the world, from its logistics center located in Issenheim.

AMDL Scop SA is a leading manufacturer, of standard parts for die sets making, marketed under the registered trademarks MDL and Porter Besson.

The guide bushes are used with guide pillars and ball cages to design guide systems for die sets

Standards parts for die making MDL are in stock at AMDL Scop SA, included guiding elements MDL, guide bushes MDL, guide pillars MDL, ball bearing cages MDL and all accessories necessary to design a guide system for press tools.
