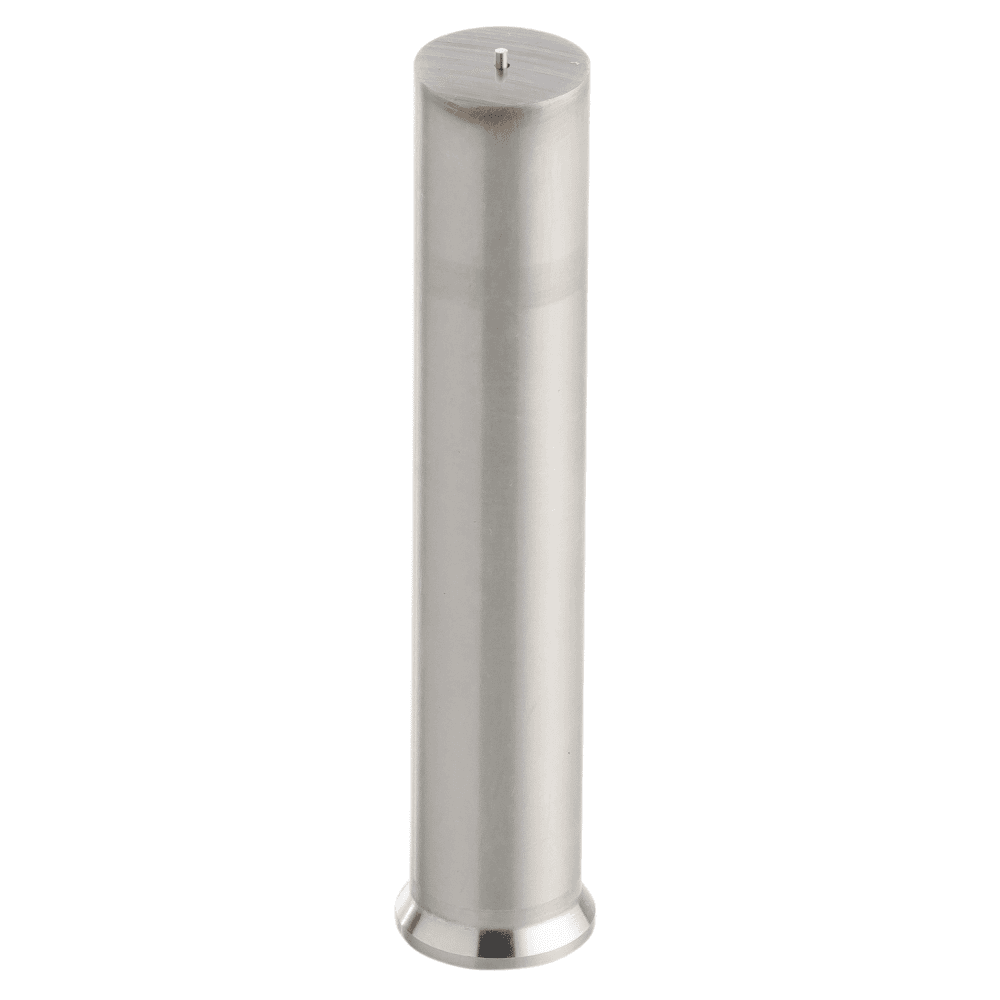

Conical head punches 30° with ejector PB-TTEB / PB-TTE_

Material : Material B : High-speed steel HSS / 1.3343 / M2 / HS 6.5.2 / Z90

Dimensions :

• Diameter : from 6mm to 16mm
• Length : from 100mm to 120mm

Available shapes : Available as a blank or following our 6 standards catalog shapes. Others shapes can be made as special.

Coating : Standard coating : TIN, Alcrona (AlCrN), TICN, CrN, t-ac.

Other coating on request.

Hardness:

• Head 47 -57 HRc
• Body 60 - 64 HRc

Benefits:

• Very little space requirement. Ideal for perforated sheet applications.
• All our punches are engraved to your specifications for quick identification.
• Ejector for waste removal

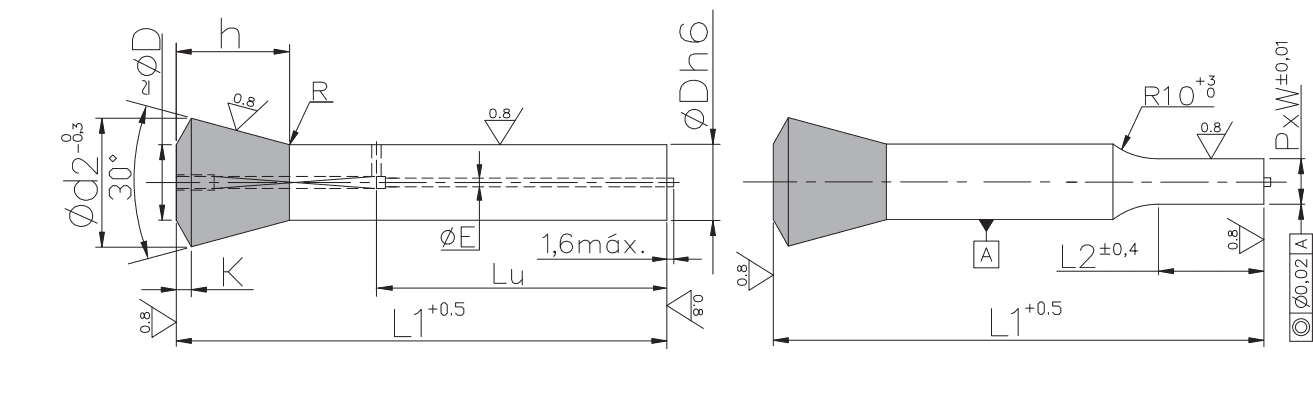

Tolerances :

• Body tolerance h6
• Length tolerance +0,5
• Shape tolerance ± 0,01
• Head diameter tolerance 0/-0,3

Conception :

• The body and shape are grinded with high precision.
• Our ejector punches are made with a vent hole on the body.

Target application

Ideal for press tools or injection moulds.

Recommendations for use :

• Mounting : The punch is directly mounted in the tool plate..
• Cutting clearance : We recommand a cutting clearance between the die button and the punch corresponding to 10% of the thickness of the sheet being cut. (except special applications).

Maintenance recommendations :

• Regular cleaning
• Regular inspection
• Checking alignment with the die
• Regular lubrication

To order you need to indicate :

1. The desired dimensions
2. Desired shape (except for blanks)
3. Shape dimensions (except for blanks)
4. The desired coating
5. Shape orientation
6. Standard alterations

Example : PB-TTEL-16-71-7-P12.5-W8-R2T0-TIN
