Headed pilots punches PB-PPNP / P_-PPNZ - ISO 8020

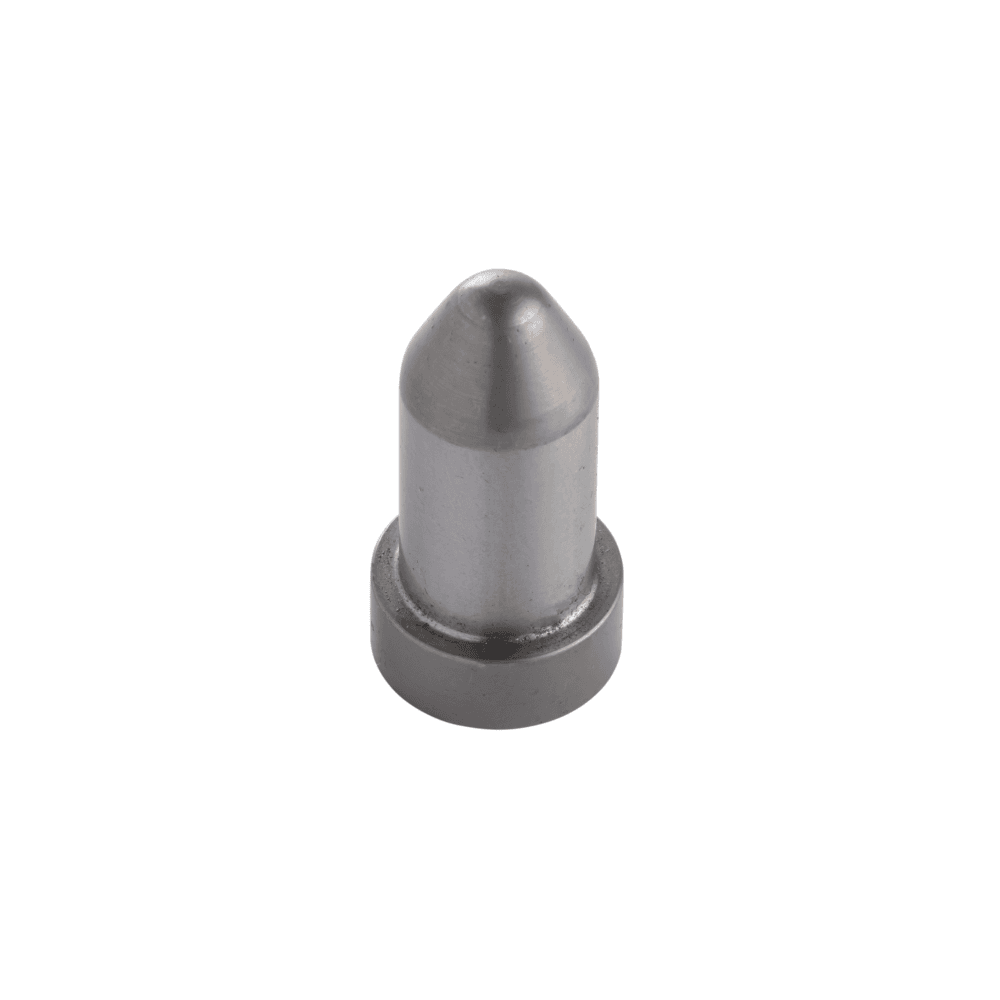

The PB-PPNP and P_-PPNZ headed pilots punches ensure are used to control the band. We are machining our punches following your needs or drawing. They are also available as blank.
Specifications
Material :
- Material A : High-speed steel HWS / 1.2379 / D2 / X155CrVMo12.1
- Material B : High-speed steel HSS / 1.3343 / M2 / HS 6.5.2 / Z90
Standard : ISO 8020 / NF E63-101
Dimensions :
- Diameter : from 5mm to 25mm
- Length : from 71mm to 110mm
Cylindrical head, 5mm thick.

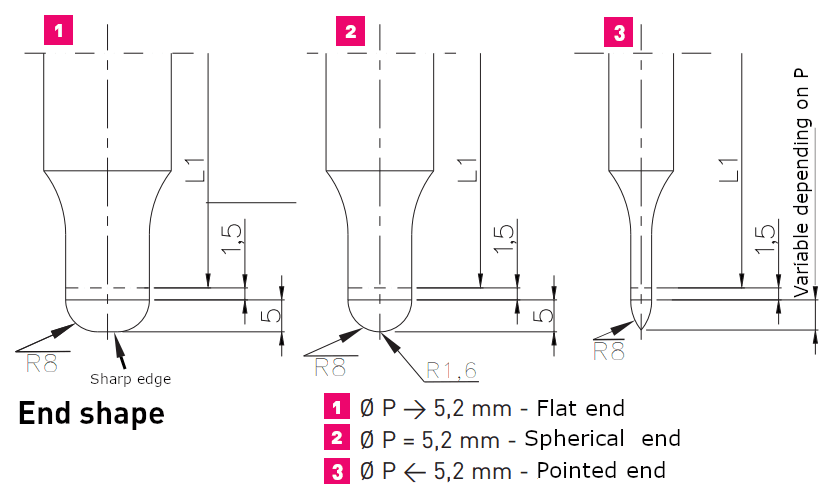

Available shapes : Available as a blank or following our 6 standards catalog shapes. Others shapes can be made as special.
Coating : Standard coating : TIN, Alcrona (AlCrN), TICN, CrN, t-ac.
Other coating on request.
Hardness :
- Material A :
Head 40 -50 HRc
Body 58 - 62 HRc
- Material B :
Head 47 -57 HRc
Body 60 - 64 HRc
Benefits :
- The PB-PPNP pilot punches are directly mounted on the intermediate plate (or stripper plate) making the pilots shorter.
- The P_-PPNZ pilot punches can be mounted in the upper plate allowing longer pilots.
- All our punches are engraved to your specifications for quick identification.
Tolerances :
- Body tolerance m5
- Length tolerance +1
- Cylindrical head thickness tolerance +0,1/0
- Cylindrical head diameter tolerance ±0,1
- Shape tolerance ± 0,0
Conception :
- The cylindrical head is hot forged for superior strength and a better durability.
- The body and shape are grinded with high precision.
Target application
Ideal for press tools or injection moulds.
Recommendations for use :
Mounting :
- The PB-PPNP are directly mounted on the stripper plate.
- The P_-PPNZ are mounted in the upper plate.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Checking alignment with the die
- Regular lubrication
Pour commander il vous suffit de nous indiquer à partir du catalogue :
- The desired dimensions
- Shape dimensions (except for blanks)
- Standard alterations
Example : PB-PPNP-12-30 / PB-PPNZ-16-71-20-P12,5
Technical data
3D Model

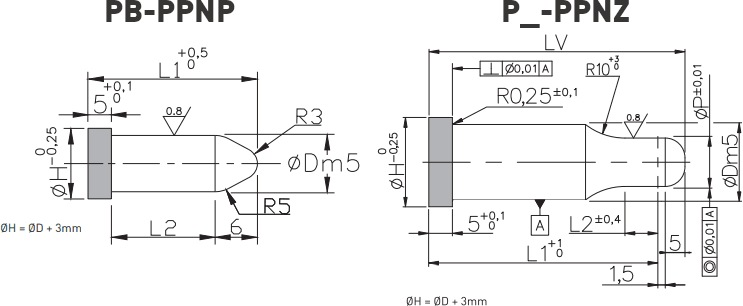

Plan
Dm5 : Body diameter tolerance m5
H : Cylindrical head diameter
P x W : Shape dimensions
