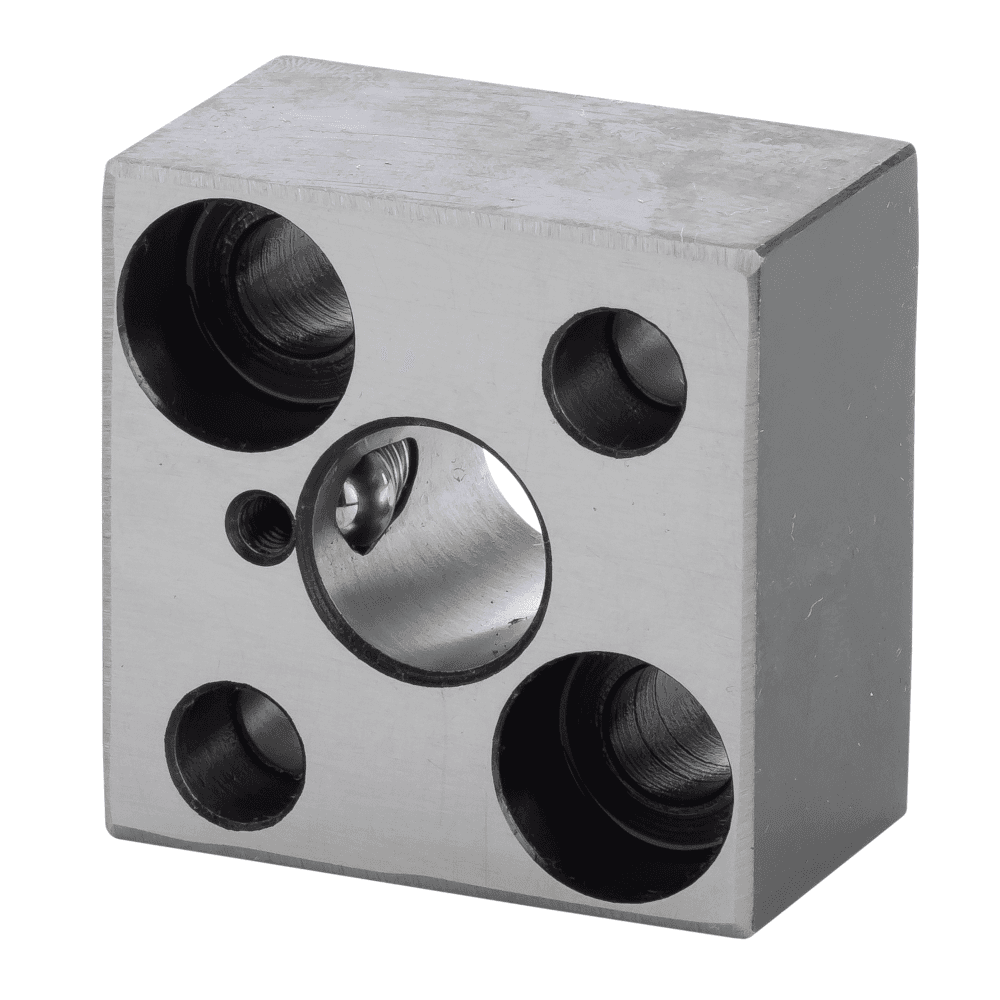

Square ball-lock die retainers RR-BLSN
The RR-BLSN square ball-lock die retainers are designed for ball-lock die button.
Specifications
Material : 40CMD8 T4
Standard : NF E63-103 / NF ISO 11900-1
Dimensions :
- For ball-lock die button from diameter 10 to 40mm
- Height : 25mm
Hardness :
Die retainer : 43-48 HRc
Benefits :
- Precise positioning and alignment
- Ball fixing for ball-lock die button
Tolerances :
- Die diameter H6
- Die retainer length ± 0,25
- Die retainer width ± 0,25
Conception :
- Die retainers are machined
- The faces are gound
- The edges are treated by burnishing
Recommendations for use :
Mounting : The die retainers are fastened by two screws and two pins directly into the top plate of your tool.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Checking alignment with the die
- Regular lubrication
To order you need to indicate :
- The diameter of the punch required
Example : RR-BLRN-16
3D Model

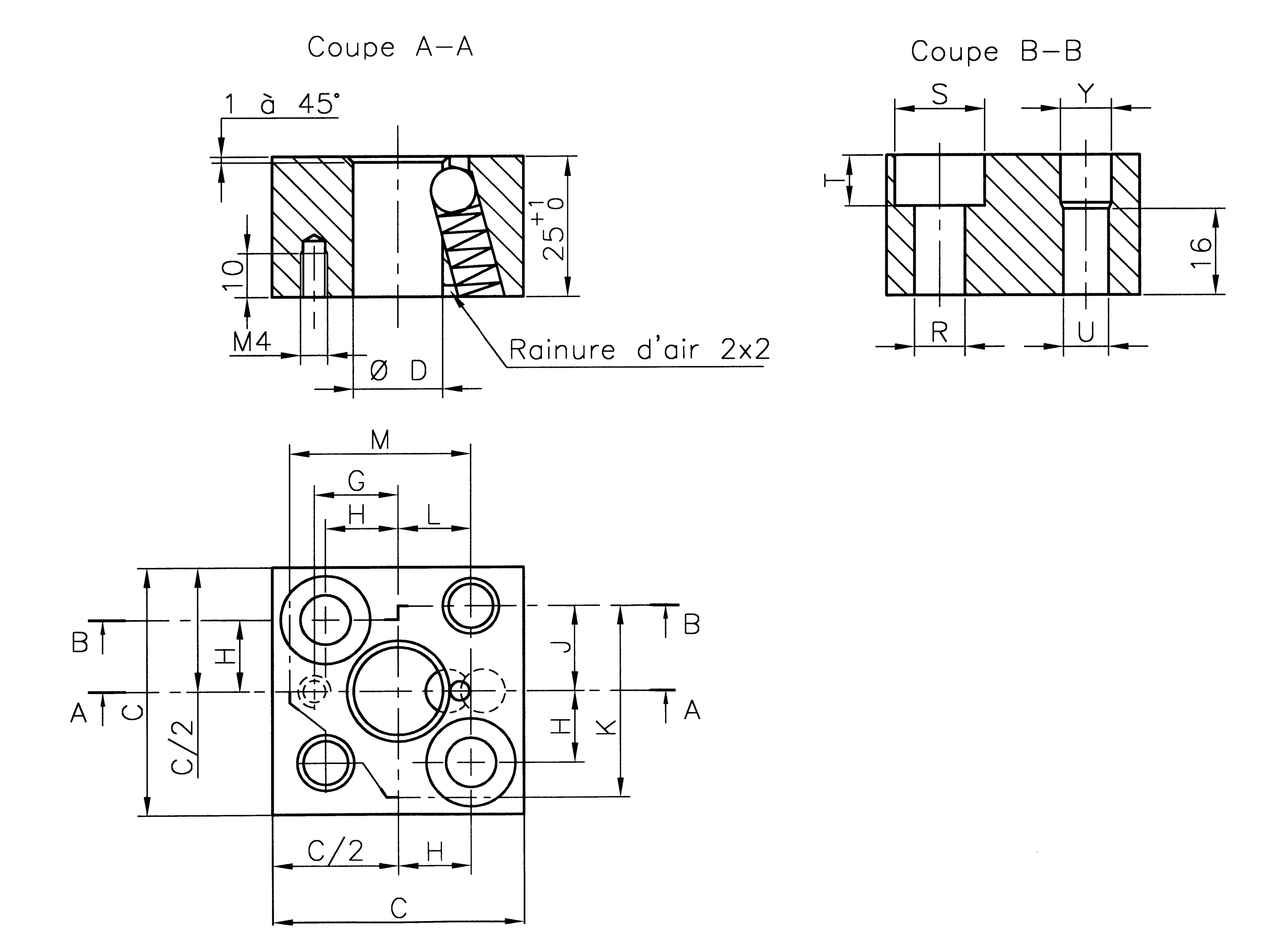

Plan
C : Die retainer width
ØD : Die diameter
