Retractable pneumatically-controled punch retainers RZ-PPPH

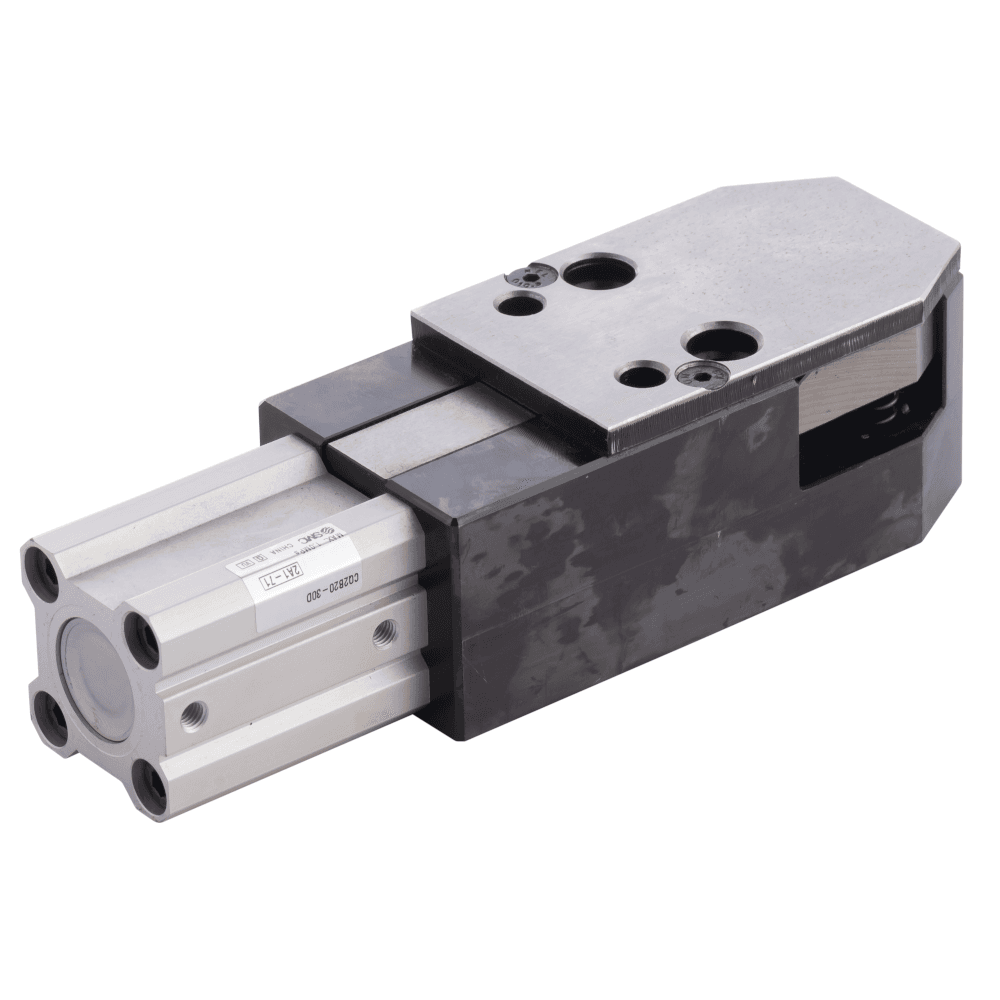

The RZ-PPPH retractable pneumatically-controled punch retainers are designed for headed shaped punches. The punches is retained by a plate called "knife" to avoid the contact with the material / sheet.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fretractable-pneumatically-controled-punch-retainers-rz-ppph.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Fpoincons-et-matrices.png&w=3840&q=75)
Specifications
Material : 40CMD8 T4
Dimensions :
- For headed shaped punches from diameter 10 to 40mm
- Height: from 45 to 55mm
Hardness :
Punch retainers : 43-48 HRc
Shock plate : 32-38 HRc
Shock plate is included
Benefits :
- The punch can be removed by means of a ram.
- Allows different models to be made on the same tool.
- Precise positioning and alignment
Recommendations for use :
Mounting : The die retainers are fastened by two screws and two pins directly into the top plate of your tool.
You must allow for through holes in the frame and discharge vents in the press.
Requires punches with orientation flat.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Checking alignment with the die
- Regular lubrication
To order you need to indicate :
- The diameter of the punch required
Example : RZ-PPPH-16
3D Model

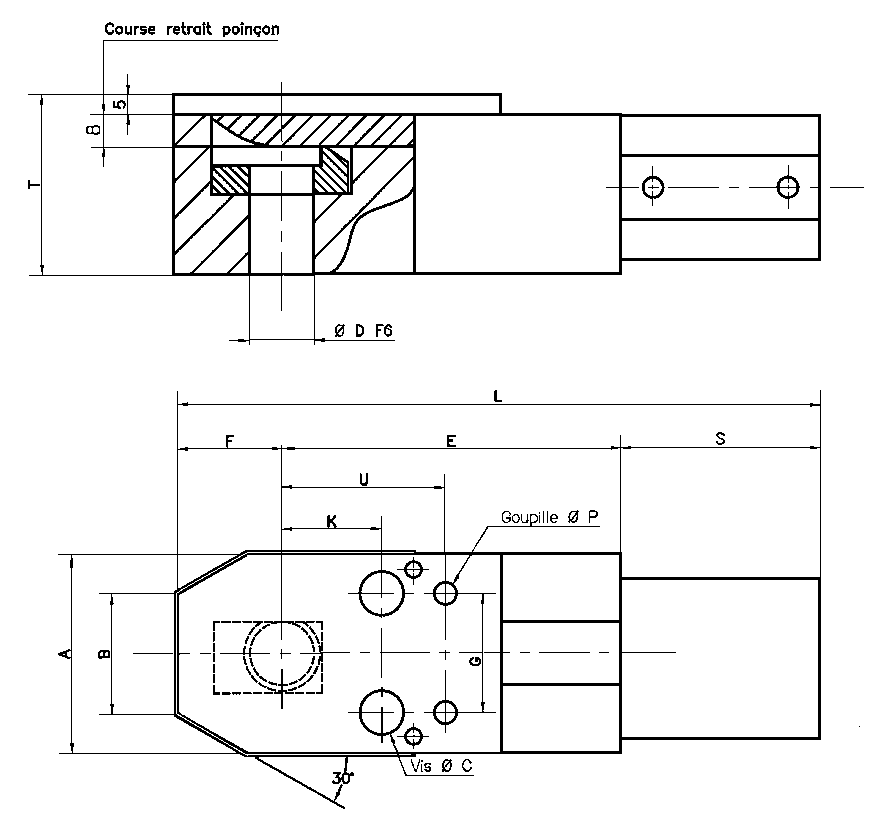

Plan
L : Punch retainer length
A : Punch retainer width
T : Punch retainer height
