Reduced punch retainers RT-PPTS for round shaped headed punches
Reduced punch retainers RT-PPTS for round shaped headed punches

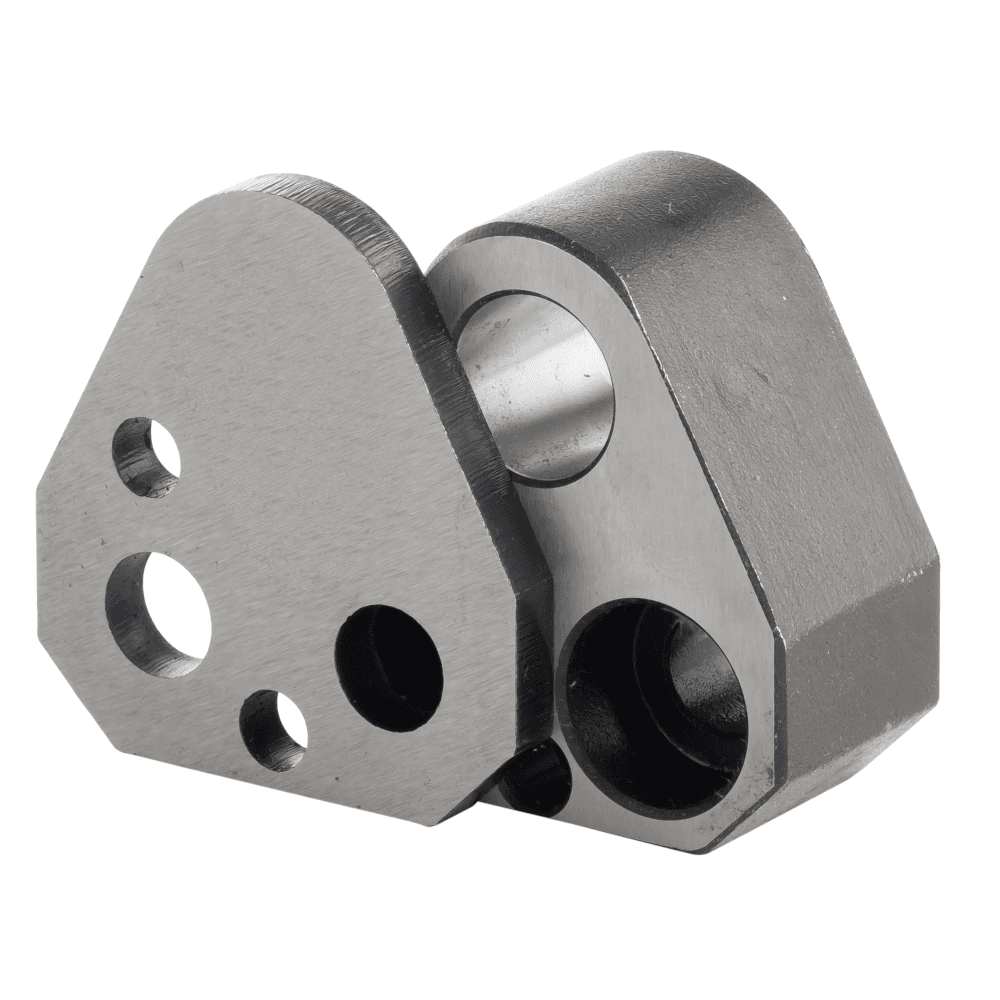

The RT-PPTS reduced punch retainer are designed from round shaped headed punches. The shock plate is delivered with the retainer.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Freduced-punch-retainers-rt-ppts-for-round-shaped-headed-punches.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Fpoincons-et-matrices.png&w=3840&q=75)
Specifications
Material : 40CMD8 T4
Standard : NF E63-117
Dimensions :
- For round shaped headed punches from diameter 8 to 32mm
- Height : 25mm
Hardness :
Punch retainers : 43-48 HRc
Shock plate : 32-38 HRc
The shock plate is included
Benefits :
- Precise positioning and alignment
- Reduced dimensions and centre distances
- Can be nested
Tolerances :
- Punch diameter G6
- Punch head diameter ± 0,25
- Punch retainers length ± 0,25
- Punch retainer width ± 0,25
- Height tolerance 25 +1/0 mm
Conception :
- Punch retainers are machined
- The faces are gound
- The edges are treated by burnishing
Recommendations for use :
Mounting : The punch retainers are fastened by two screws and two pins directly into the top plate of your tool.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Checking alignment with the die
- Regular lubrication
To order you need to indicate :
- The diameter of the punch required
Example : RT-PPTS-16
3D Model

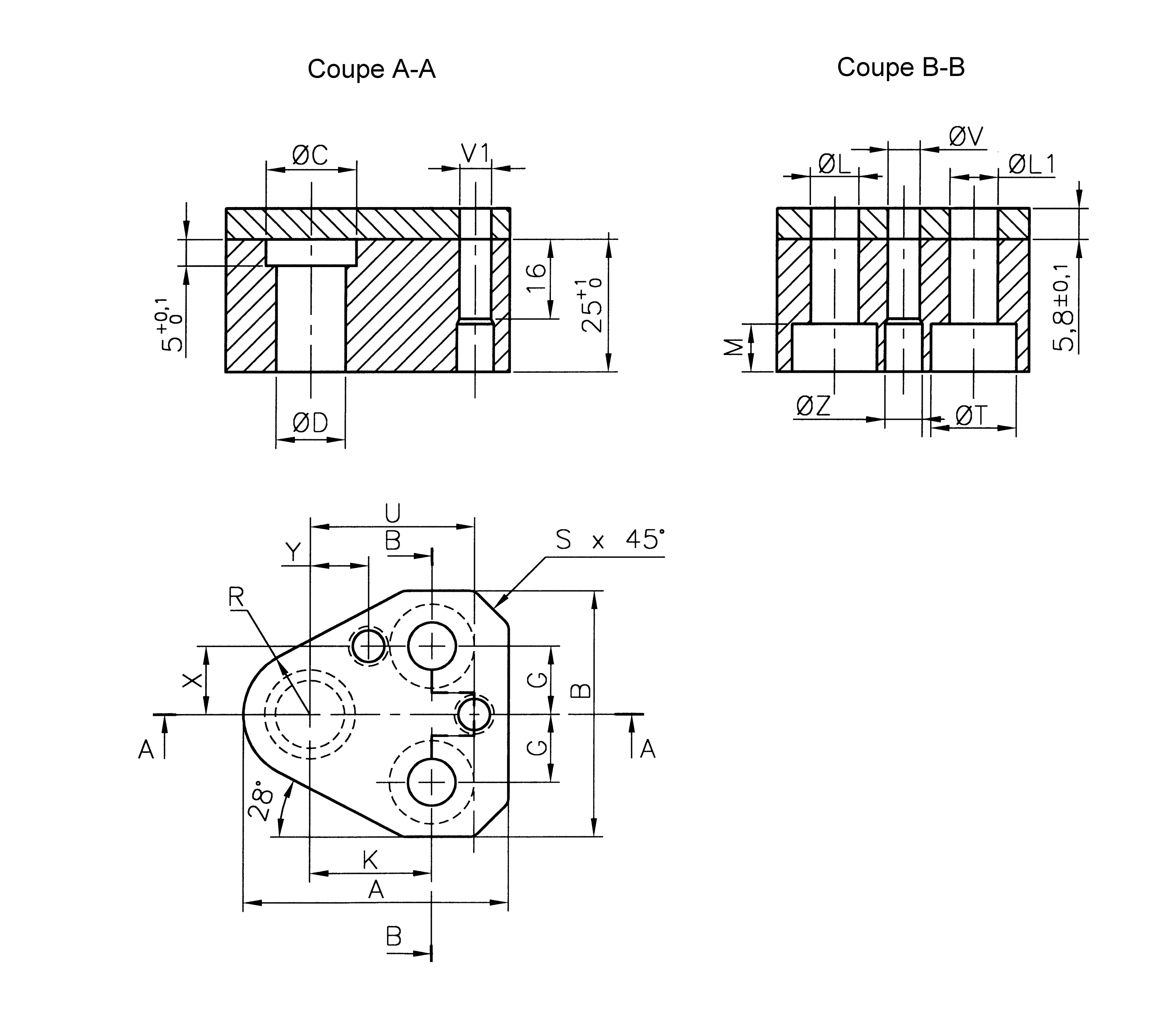

Plan
A : Punch retainer length
B : Punch retainer width
ØD : Punch diameter
![Reduced punch retainers RT-PPTS for round shaped headed punches plan](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Freduced-punch-retainers-rt-ppts-for-round-shaped-headed-punches-plan.png&w=3840&q=75)
