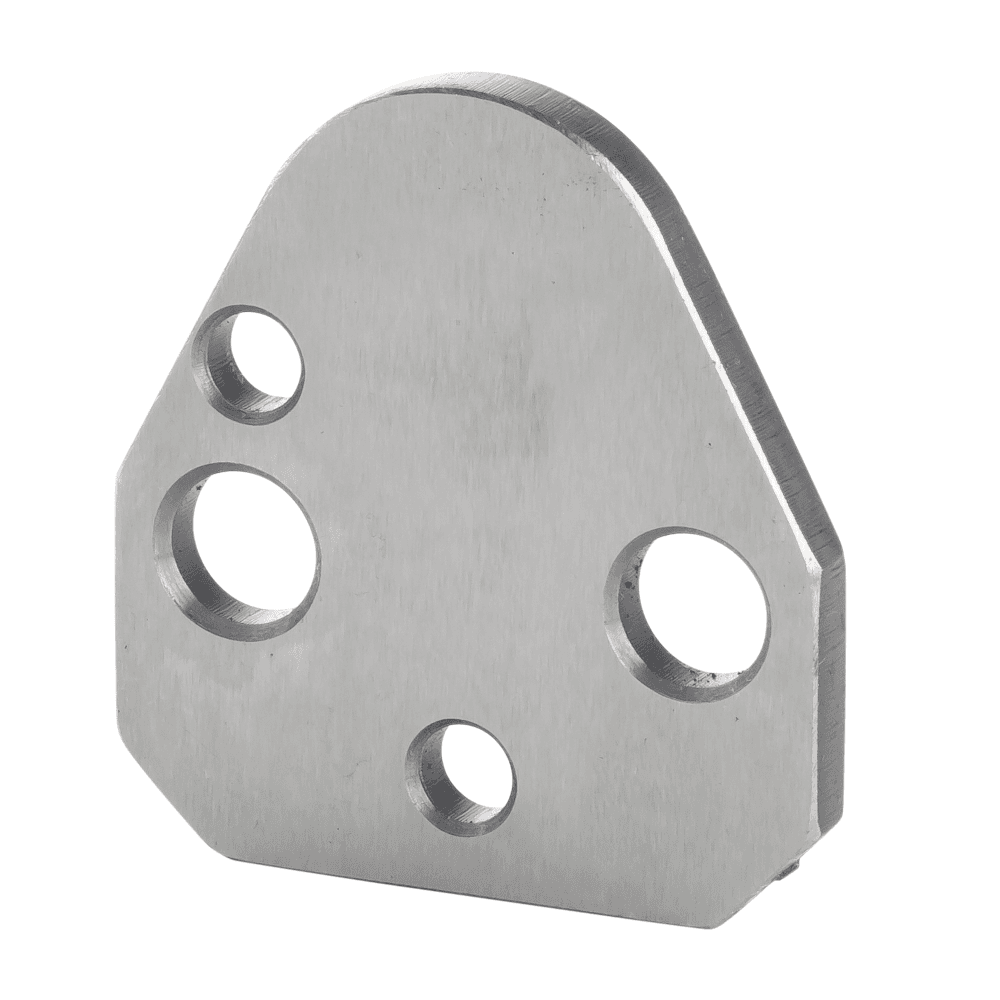

Shock plate RR-BPTT for international standard punch retainer
The RR-BPTT are used with international standard punch retainers. They absorb the shocks resulting from punching operations, protecting the tool and punches.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Fshock-plate-rr-bptt-for-international-standard-punch-retainer.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Fpoincons-et-matrices.png&w=3840&q=75)
Specifications
Material : 40CMD8 T4
Standard : Thickness 4.8 or 5.8mm
Hardness : 32 - 38 HRc
Benefits :
- Reduced deformaiton during punching
- Protects the tool
Tolerance : Thickness ± 0,1
Recommendations for use :
Mounting : The tool shock is fastened with the punch retainer.
To order you need to indicate :
- The diameter of the punch required
- The thickness
Example : RR-BPTT-16-5.8

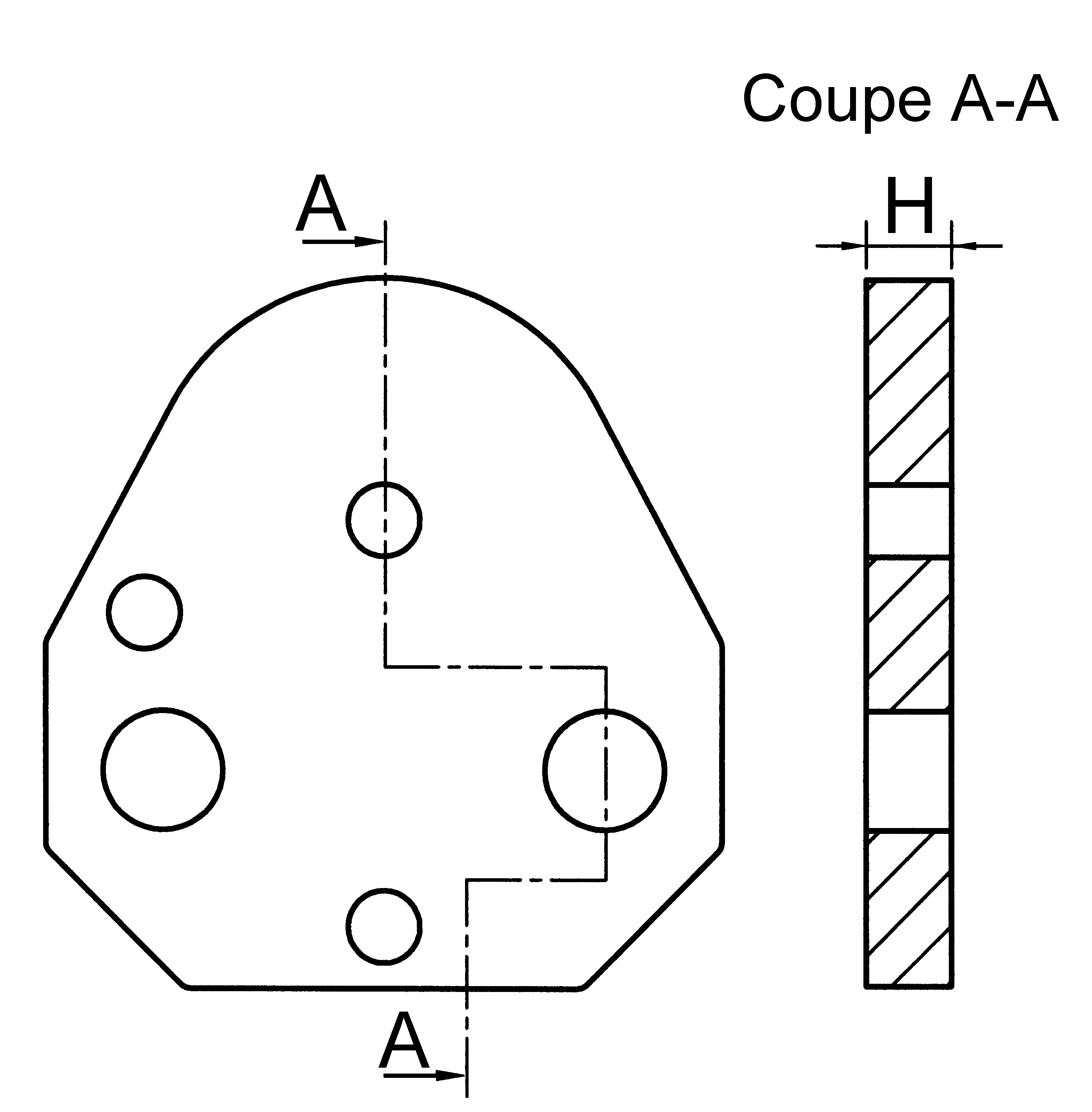

Plan
H : Shock plate thickness
