The RR-PTHS reduced punch retainers are designed for heavy duty headed round shaped punches.
![](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Freduced-punch-retainers-for-heavy-duty-rr-pths-for-round-shaped-headed-punches.png&w=1920&q=75)
![](/_next/image?url=%2Fimages%2Ficons%2Fpoincons-et-matrices.png&w=3840&q=75)
Specifications
Material : 40CMD8 T4
Dimensions :
- For round shaped headed punches from diameter 10 to 25mm
- Height : 30mm
Hardness :
Punch retainers : 43-48 HRc
Shock plate not included
Benefits :
- Precise positioning and alignment
- Reduced dimensions and centre distances
- Can be nested
- For heavy duty punches
Tolerances :
- Punch diameter G6
- Punch head diameter ± 0,10
- Punch retainers length ± 0,25
- Punch retainer width ± 0,25
Conception :
- Punch retainers are machined
- The faces are gound
- The edges are treated by burnishing
Recommendations for use :
Mounting : The punch retainers are fastened by two screws and two pins directly into the top plate of your tool.
Maintenance recommendations :
- Regular cleaning
- Regular inspection
- Checking alignment with the die
- Regular lubrication
To order you need to indicate :
- The diameter of the punch required
Example : RR-PTHS-16

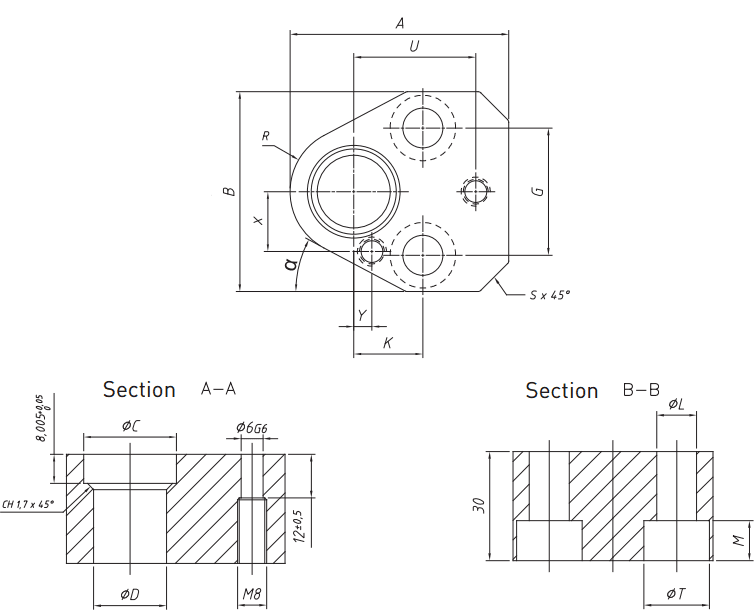

Plan
A : Punch retainer length
B : Punch retainer width
ØD : Punch diameter
![Schéma RR-PTHS , porte poinçons du fabricant Porter Besson en stock chez AMDL](/_next/image?url=https%3A%2F%2Fapi.amdl-eu.com%2Fuploads%2Fmedia%2Frr-pths-6dfac7f6.png&w=1920&q=75)
